214323 421 Revision A
To adjust draper tension, follow these steps:
CAUTION
Check to be sure all bystanders have cleared the area.
1. Start engine and raise header.
2. Stop engine, remove key from ignition, and engage header safety props.

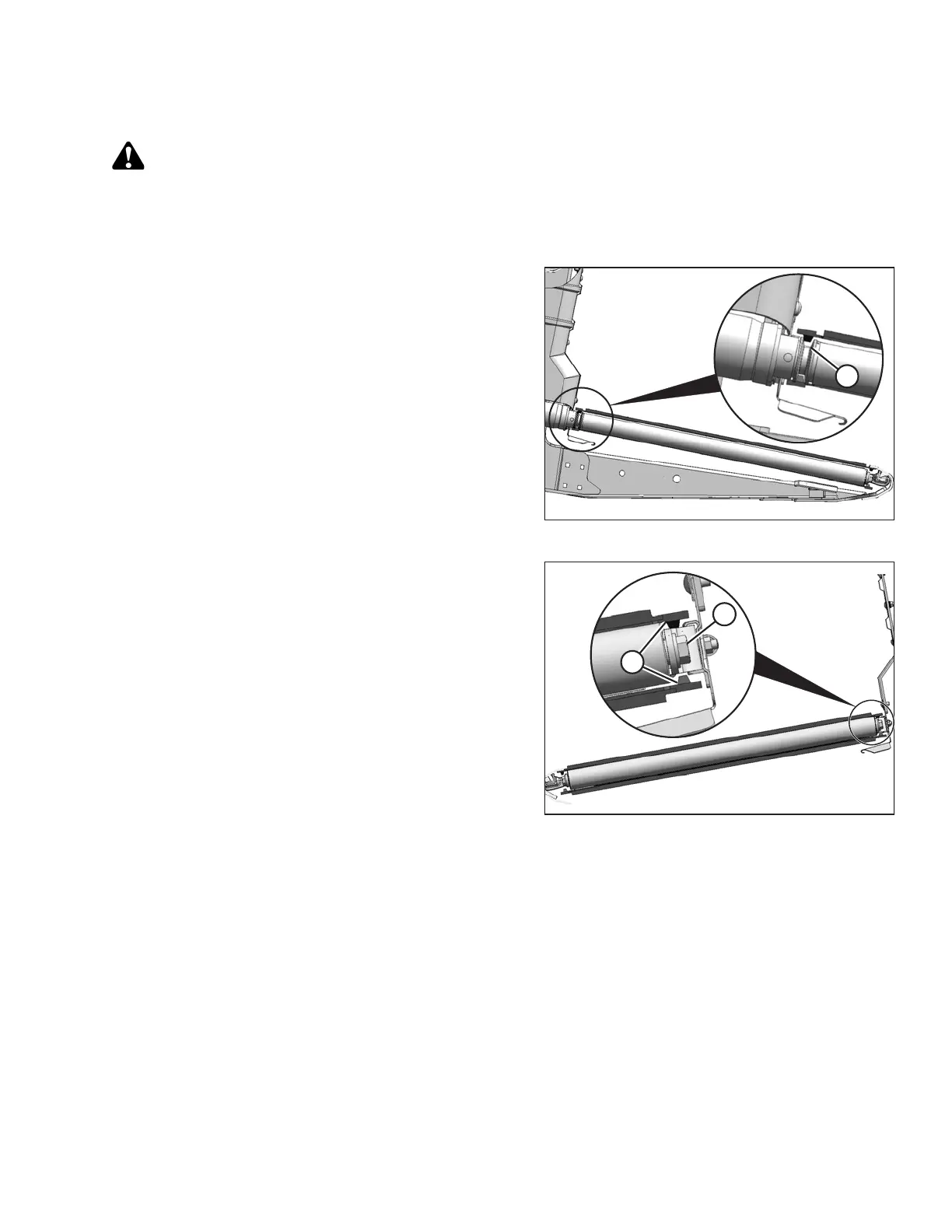

Figure 5.191: Drive Roller
3. Check that draper guide (rubber track on underside of
draper) is properly engaged in groove (A) of drive roller.
Figure 5.192: Idler Roller – Typical Both Ends
of Roller
4. Check that idler roller (A) is between guides (B).
MAINTENANCE AND SERVICING
