214323 427 Revision A
1. Start the engine, raise the header, and raise the reel.
2. Stop the engine, and remove the key from the ignition.
3. Engage the reel safety props, and engage the header safety props.

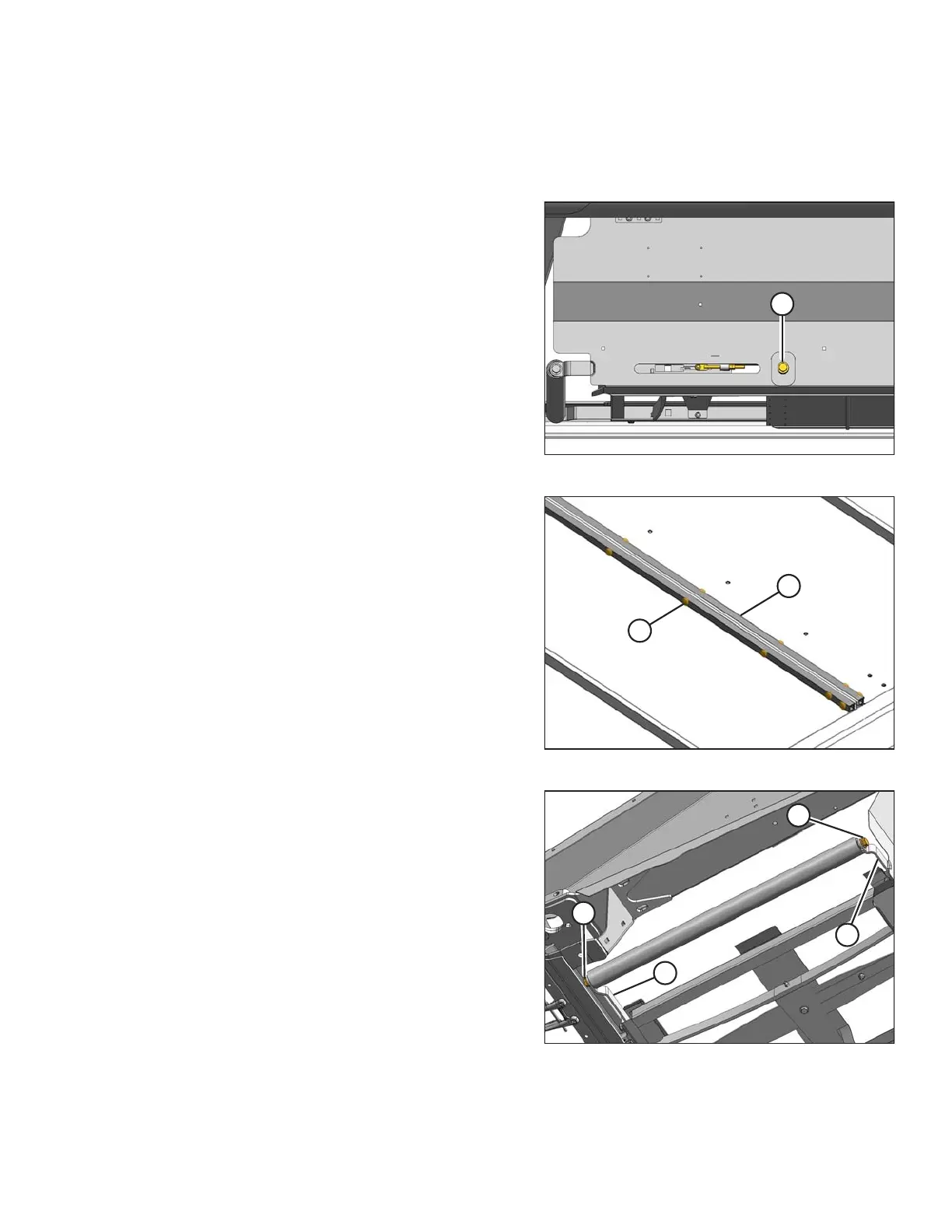

Figure 5.204: Tensioner
4. Loosen the draper by turning adjuster bolt (A)
counterclockwise.
Figure 5.205: Draper Connector
5. Remove the screws (A), tube connectors (B), and nuts
from the draper joint to uncouple the draper.
6. Pull the draper off the idler roller.
Figure 5.206: Idler Roller
7. Remove the bolts (A) and washer at the ends of the
idler roller.
8. Spread the roller arms (B) and (C) and remove the
idler roller.
MAINTENANCE AND SERVICING
