Installing Side Draper Drive Roller

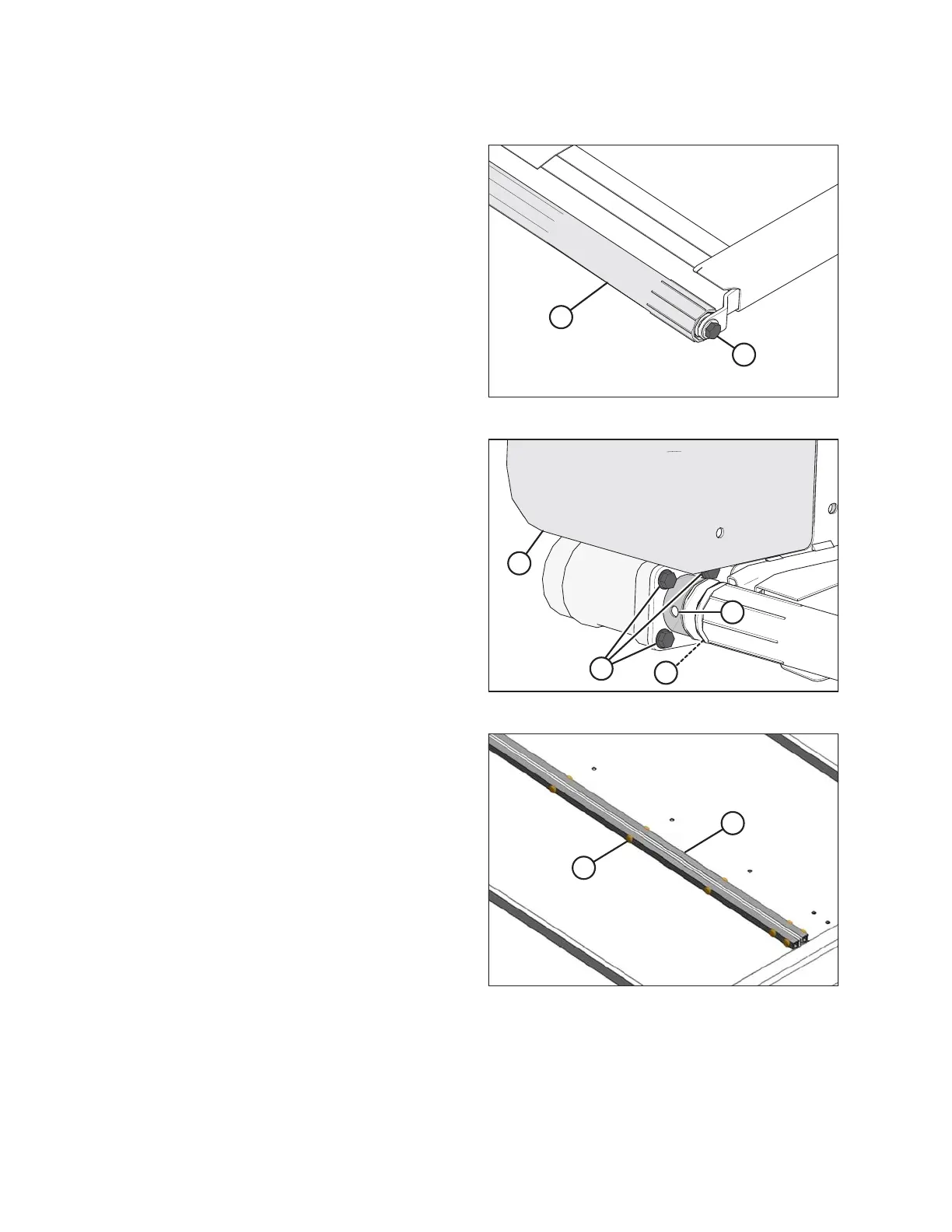

Figure 5.216: Drive Roller
1. Position drive roller (B) between the roller support arms.
2. Attach roller (B) to arm at forward end of deck with
bolt (A). Support other end of roller and torque bolt to
95 Nm (70 lbf·ft).
3. Grease the motor shaft and insert into the end of drive
roller (B).
Figure 5.217: Drive Roller
4. Secure the motor to the roller support with four
bolts (B). Torque to 27 Nm (20 lbf·ft).
NOTE:
Tighten any loosened bolts and reinstall plastic
shield (C) if previously removed.
5. Ensure the motor is all the way into the roller, and
tighten the two setscrews (not shown) through access
hole (A).
Figure 5.218: Draper Connector
6. Wrap the draper over the drive roller and attach the
ends of the draper using tube connectors (B),
screws (A), and nuts.
NOTE:
The heads of the screws must face the center opening.
