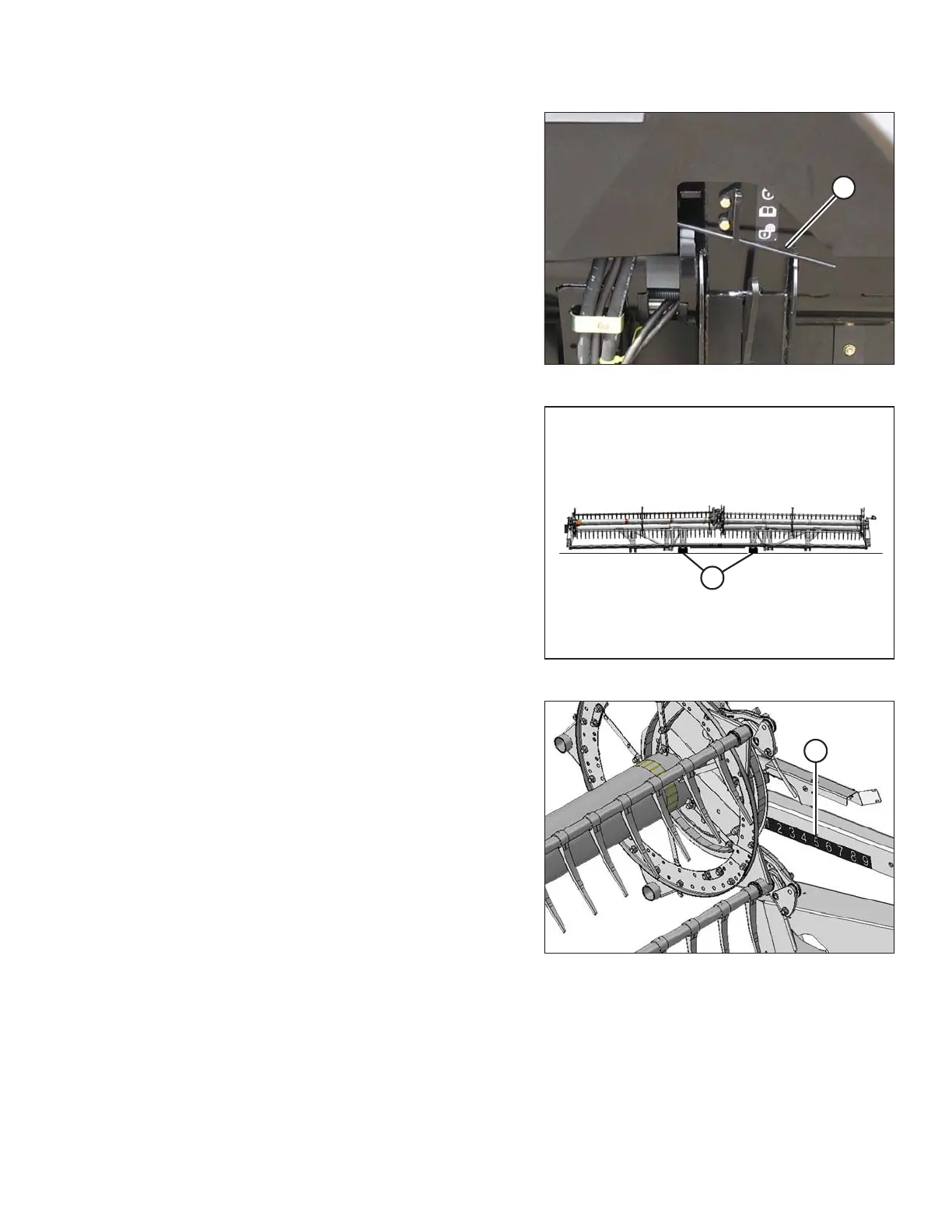

Figure 5.225: Wing Unlocked
2. Adjust header to working height.
3. Move spring handles (A) down to (UNLOCK) position.
Figure 5.226: FlexDraper
®®
Block Locations
4. Raise header and place two 150 mm (6 in.) blocks (A)
under cutterbar, just inboard of wing flex points.
5. Lower header fully, allowing it to flex into full
frown mode.
Figure 5.227: Fore-Aft Position
6. Set fore-aft position to middle position 5 on fore-aft
position indicator decal (A).
7. Lower reel fully.
8. Shut down engine and remove key from ignition.
MAINTENANCE AND SERVICING
