214323 440 Revision A

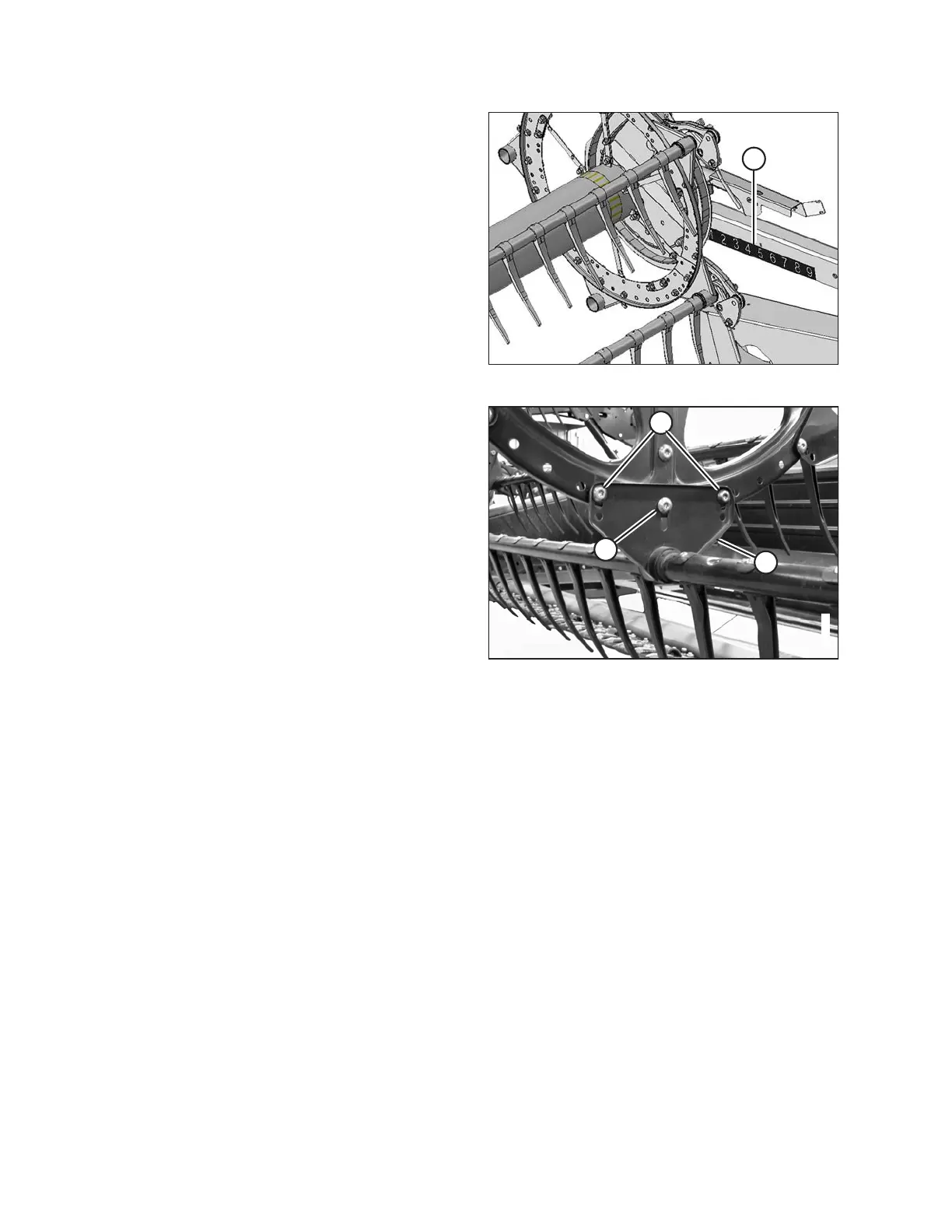

Figure 5.232: Fore-Aft Position Decal
1. Position the reel over the cutterbar (between position 4
and 5 on the fore-aft decal [A]).
2. Record the measurement at each reel disc location for
each reel tine tube.
Figure 5.233: Reel Arm
3. Start with the reel disc closest to the center of the
header and proceed outward towards the ends
adjusting the header profile as follows:
a. Remove bolts (A).
b. Loosen bolt (B) and adjust arm (C) until the desired
measurement is obtained between the reel tine
tube and cutterbar.
NOTE:
Allow the reel tine tubes to curve naturally and position
the hardware accordingly.
c. Reinstall the bolts (A) in the aligned holes and
tighten.
MAINTENANCE AND SERVICING
