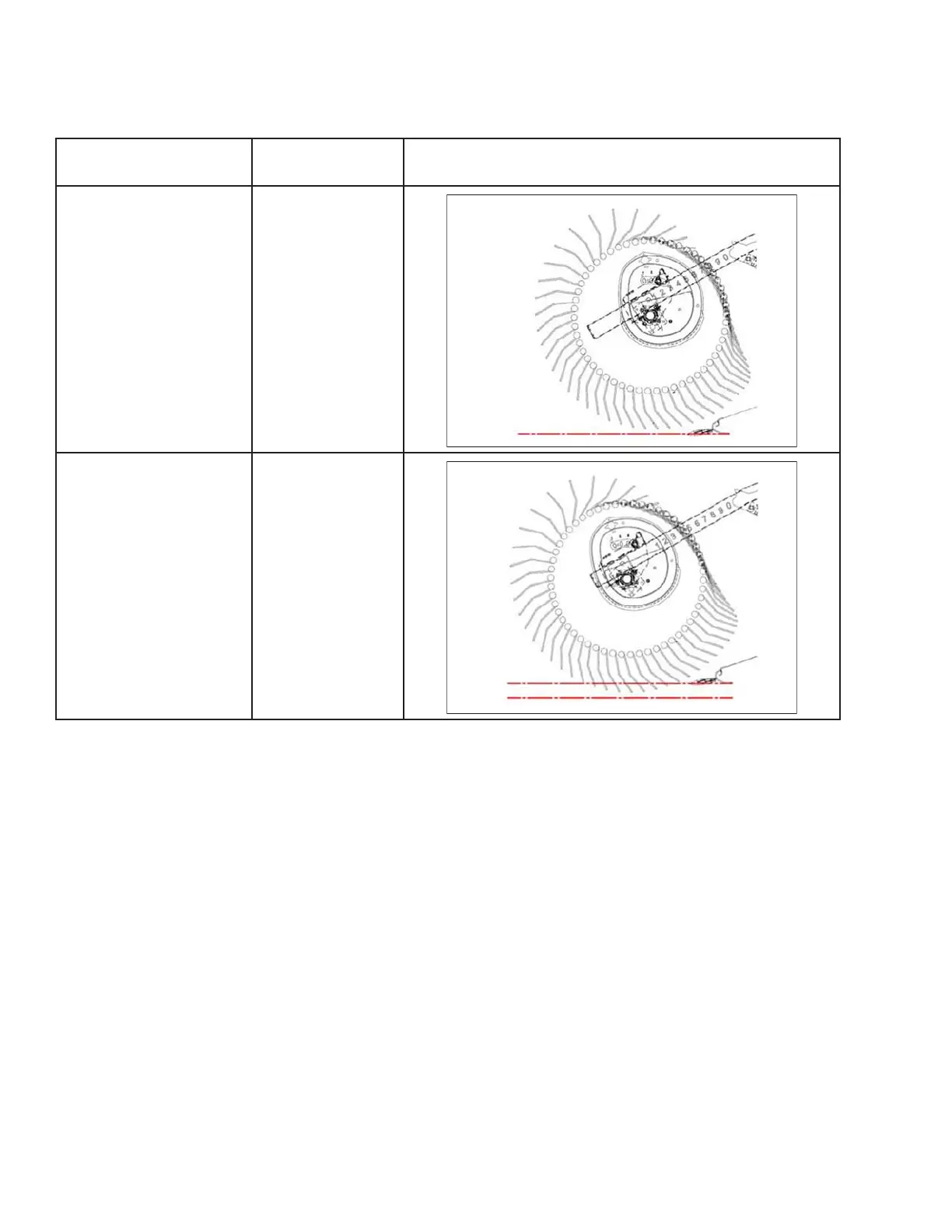

Table 3.4 FD75 Recommended Reel Settings (continued)
Cam Setting Number
(Finger Speed Gain)
Reel Position
Number
Reel Finger Pattern
3 (30%)
3or4
4 (35%)
2or3
NOTE:
• Adjust the reel forward to position the fingers closer to the ground, while tilting the header back. Fingers/tines
will dig into the ground at extreme reel-forward positions, so adjust skid shoes or header angle to compensate.
• Adjust the reel aft in thinner crops to prevent plugging on the cutterbar.
• Increase the header angle to position the reel closer to the ground, or decrease angle to position the reel farther
from the ground.
• Raise header, increase header angle, and position reel fully forward in lodged crop for maximum stubble height.
• Minimum crop carrying capacity (minimum area of exposed draper between the reel and the header backsheet)
occurs with the reel in the farthest aft position.
• Maximum crop carrying capacity (maximum area of exposed draper between the reel and the header
backsheet) occurs with the reel in the farthest forward position.
• The finger tip speed at the cutterbar is higher than the reel speed at higher cam settings due to the nature of the
cam action. Refer to Table 3.4, page 51.
