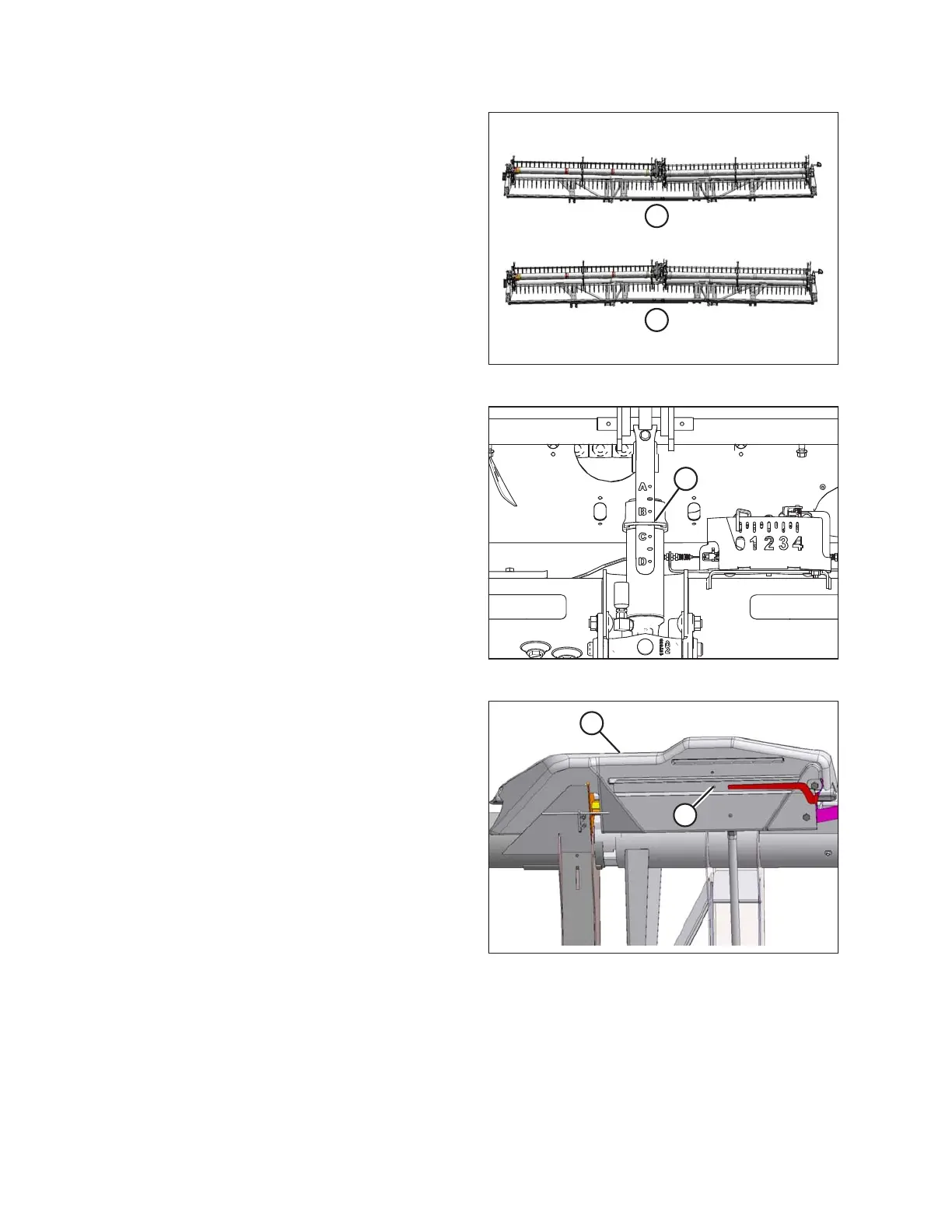

Figure 3.53: Wing Imbalance
If a wing has a tendency to be in a smile (A) or frown (B)
position, wing balance may require adjusting. Perform the
following steps to verify if the wings are not balanced and
the degree of imbalance:
Figure 3.54: Center-Link
1. Adjust the header center-link to approximately halfway
between B and C on indicator (A).
2. Park combine on level ground and raise header until
cutterbar is 152–254 mm (6–10 in.) off the ground.
3. Stop engine and remove key.
4. If installed, move transport/stabilizer wheels so that
they are supported by header. Refer to 3.7.1 Cutting
Height, page 53.
Figure 3.55: Linkage Cover
5. Remove linkage cover (A) by removing bolt (B) and
rotating cover upward until inboard end can be lifted off.
