214323 75 Revision A

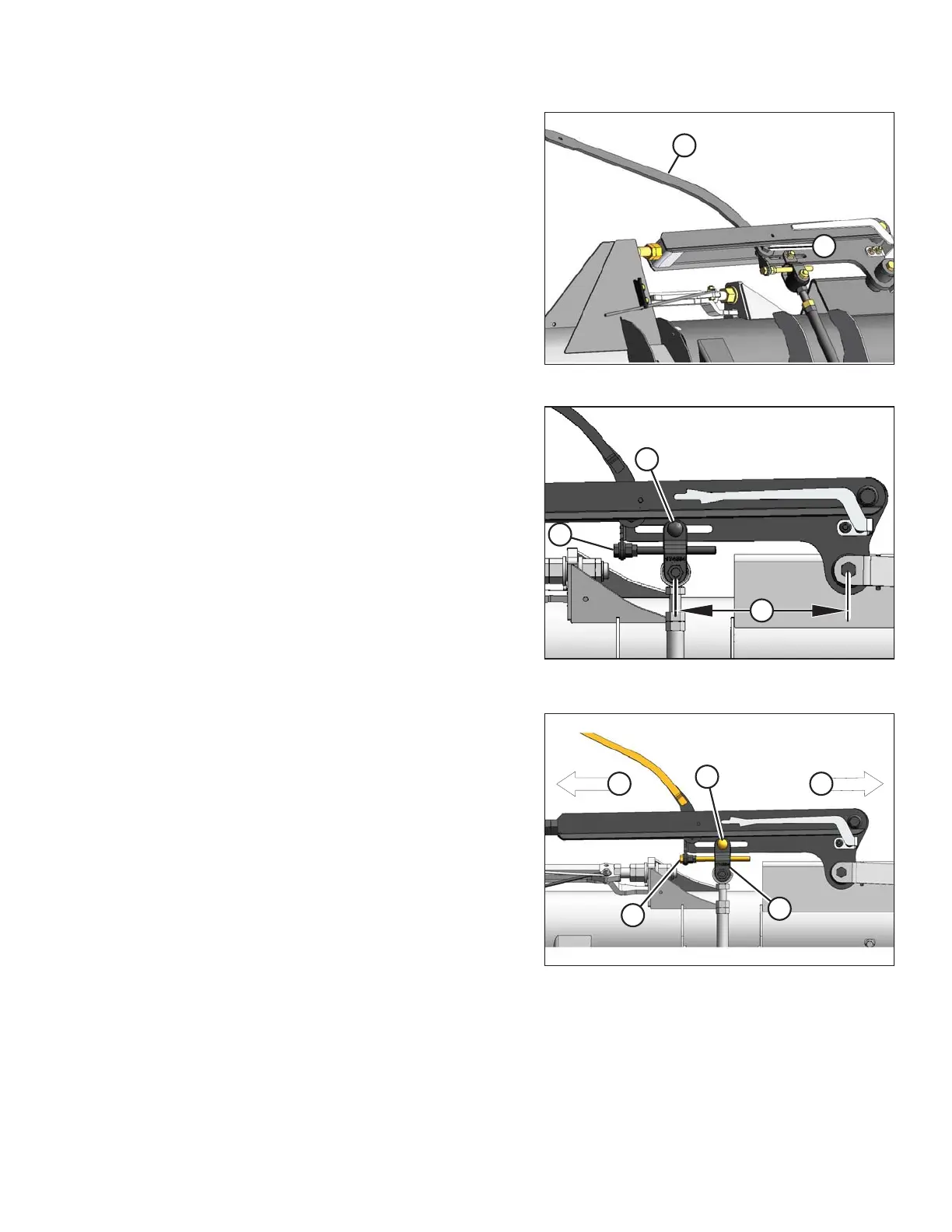

Figure 3.73: Balance Linkage
8. Place torque wrench (A) on bolt (B).
Figure 3.74: Balance Linkage
9. Loosen clevis bolt (A) for the wing requiring adjustment
as determined by the wing balance check.
NOTE:
Do NOT loosen any other hardware.
Figure 3.75: Balance Linkage
10. If necessary, perform the following adjustments:
• If the wing is too heavy, turn adjuster bolt (B) to
move clevis (C) outboard (D).
• If the wing is too light, turn adjuster bolt (B) to move
clevis (C) inboard (E).
12. Adjust clevis (C) position if necessary until indicator
readings are within one increment.
13. Tighten clevis bolt (A).
OPERATION
