MacDon M1240 - Symbol Definitions; Windrower Operating Symbols

215916 110 Revision A
1016174
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
R
S
T
U
V
W
X
Y
Z
AA
AB
AC
AD
AE
AF

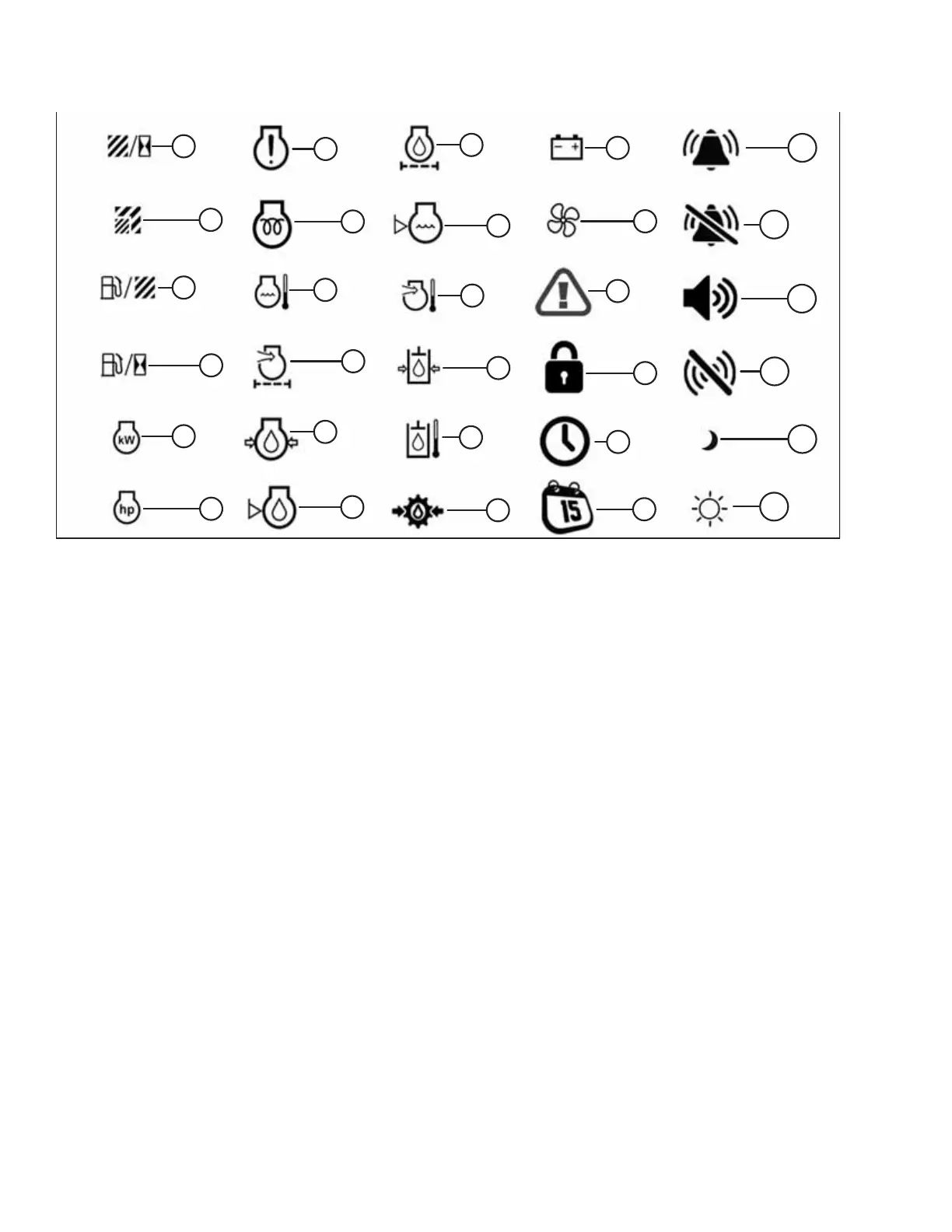

Figure 4.3: HPT Symbols
A - Acres/Hour B - Sub Acres C - Fuel/Acre
D - Fuel/Hour E - Engine Power Kilowatt F - Engine Power Horsepower
G - Engine Malfunction H - Wait to Start J - Engine Coolant Temperature
K - Engine Intake Air Filter L - Engine Oil Pressure M - Engine Oil Level
N - Engine Oil Filter P - Engine Coolant Level Q - Engine Air Intake Temperature
R - Hydraulic Oil Pressure S - Hydraulic Oil Temperature T - Transmission Oil Pressure
U - Battery/Voltage V - Fan Speed W - Caution (Yellow) / Danger (Red)
X - Function Locked Y - Time Z - Date
AA - Alarm AB - Alarm Off AC - Volume Level
AD - Sensor Disabled AE - Night AF - Day
OPERATION
