215916 204 Revision A

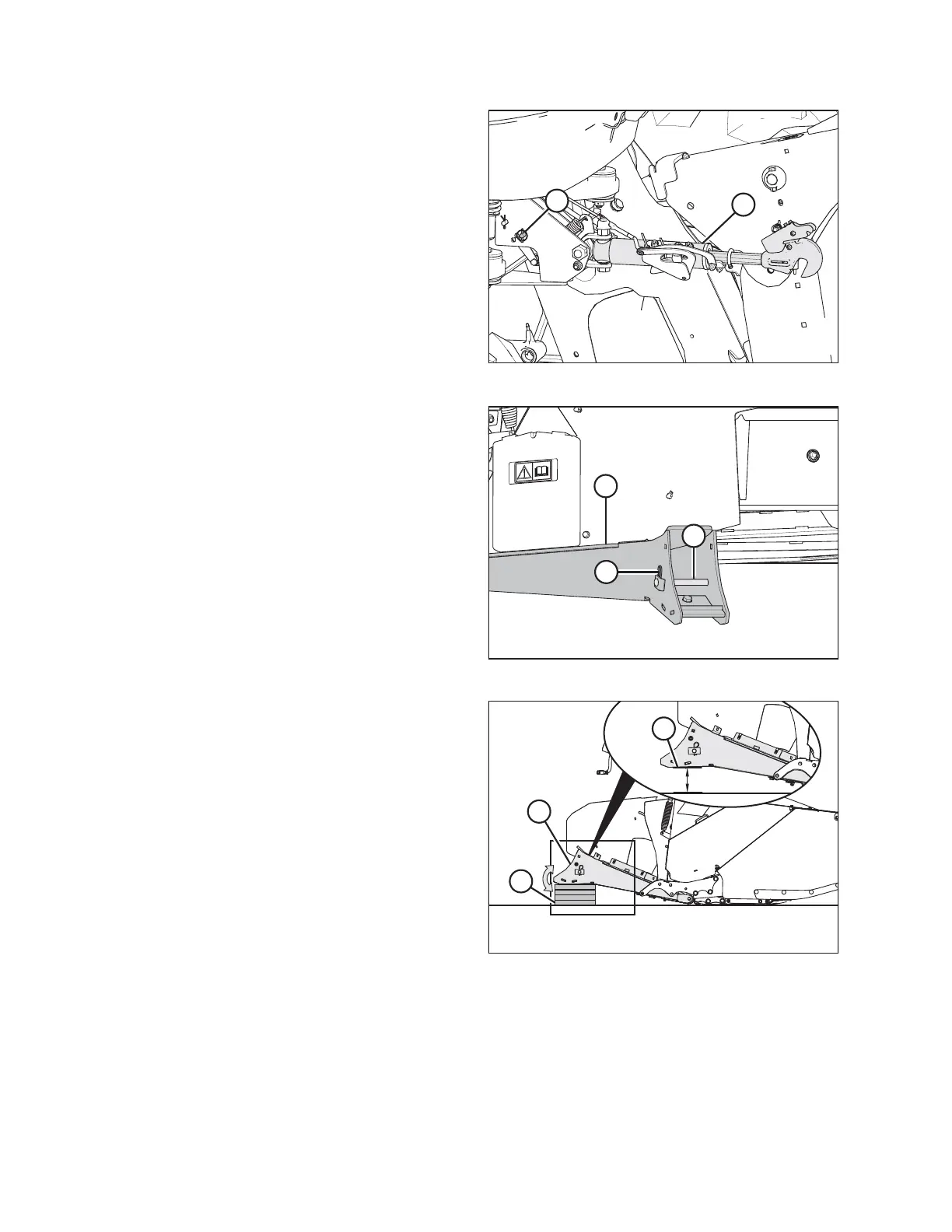

Figure 4.205: Hydraulic Center-Link
2. Windrowers equipped with a hydraulic center-link without
self-alignment: Remove pin (A) and raise center-link (B)
until the hook is above the attachment pin on the header.
Replace pin (A) to hold the center-link in place.
IMPORTANT:
Ensure that the center-link is positioned high enough that it
does not contact the header as the windrower approaches
the header.
Figure 4.206: Header Support
3. Remove hairpin (A) from clevis pin (B), and remove the pin
from header support (C) on both sides of the header.
4. Start the engine.
Figure 4.207: Header Support
5. Lift header support (A) and place 2 x 4 in. blocks (B) under
the header support. A total of four 2 x 4 in. blocks (B) will
be necessary to raise the boot up into the field position.
Ensure that the boot’s bottom edge (C) is parallel with the
ground.
NOTE:
Do NOT stack blocks (B) crosswise; doing so can make the
header unstable when you are attempting to connect the
header and the windrower. Stack blocks (B) so that they are
aligned with each other.
6. Repeat Step 5, page 204 on the opposite side of the header.
