MacDon M1240 - Cab-Forward Lighting - Road

215916 54 Revision A
1016074
A
A
B
B
C C
D
D

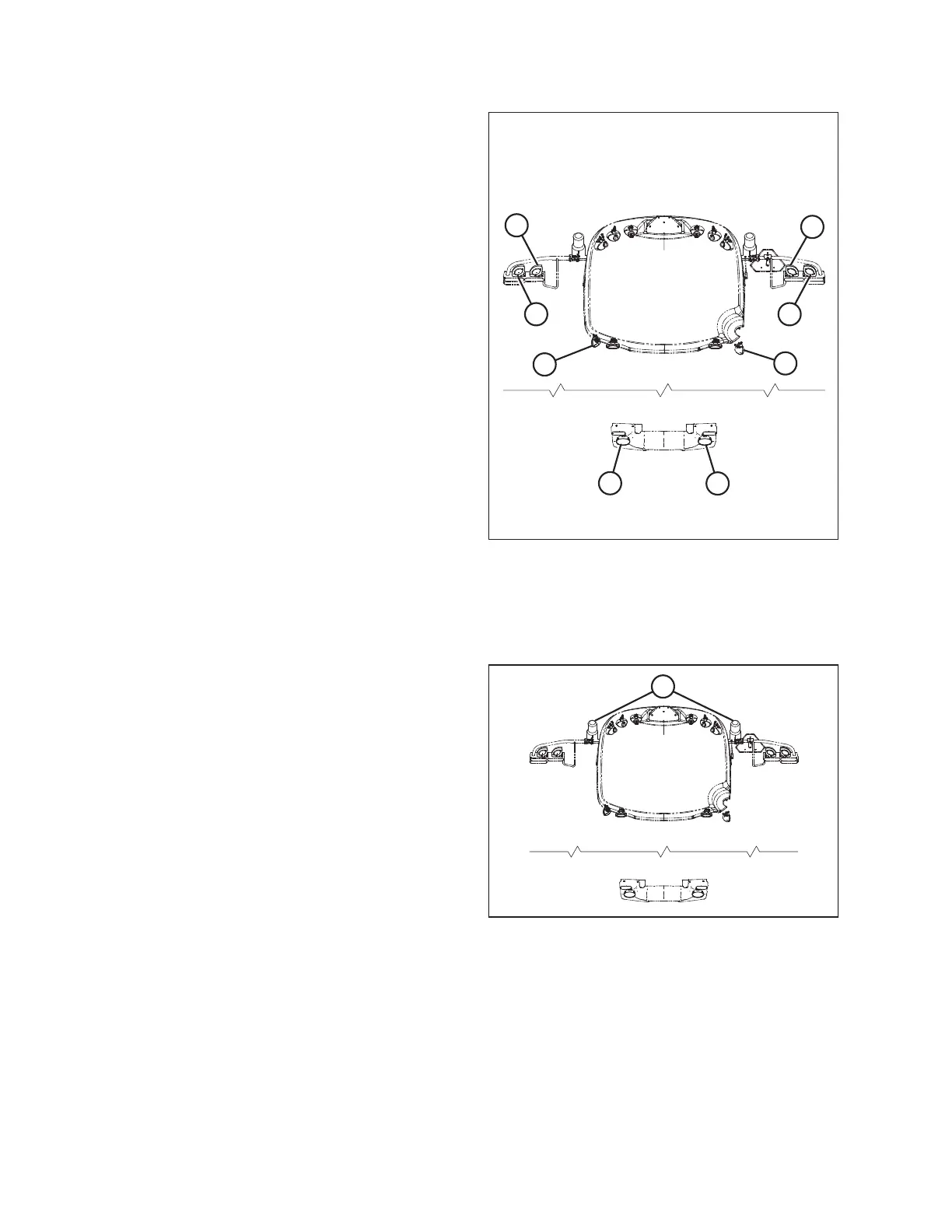

Figure 3.27: Windrower Lighting – Top View
• Engine-forward headlights (A) with low/high beams
• Red taillights (B) on the mirror supports
• Amber turn signals and hazard lights (C) on mirror
supports (viewed from the front)
• Work lights (D) turn on only when high beams are
activated in engine-forward mode
NOTE:
To align headlights (A), refer to Aligning Headlights –
Engine-Forward, page 446.
3.7.4 Tail/Beacon Lighting
Beacons and tail lights are used in road travel to alert other drivers.
1016079
A
Figure 3.28: Windrower Lighting – Top View
Beacons (A) are functional when the IGNITION is ON and
BEACON button (B) is selected.
NOTE:
In some areas, the law requires the use of beacon lights when
driving on the road.
OPERATOR’S STATION
