215916 446 Revision A
5.15.6 Lighting
Aligning Headlights – Engine-Forward
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
NOTE:
Header should be attached and raised to maintain proper windrower stance.

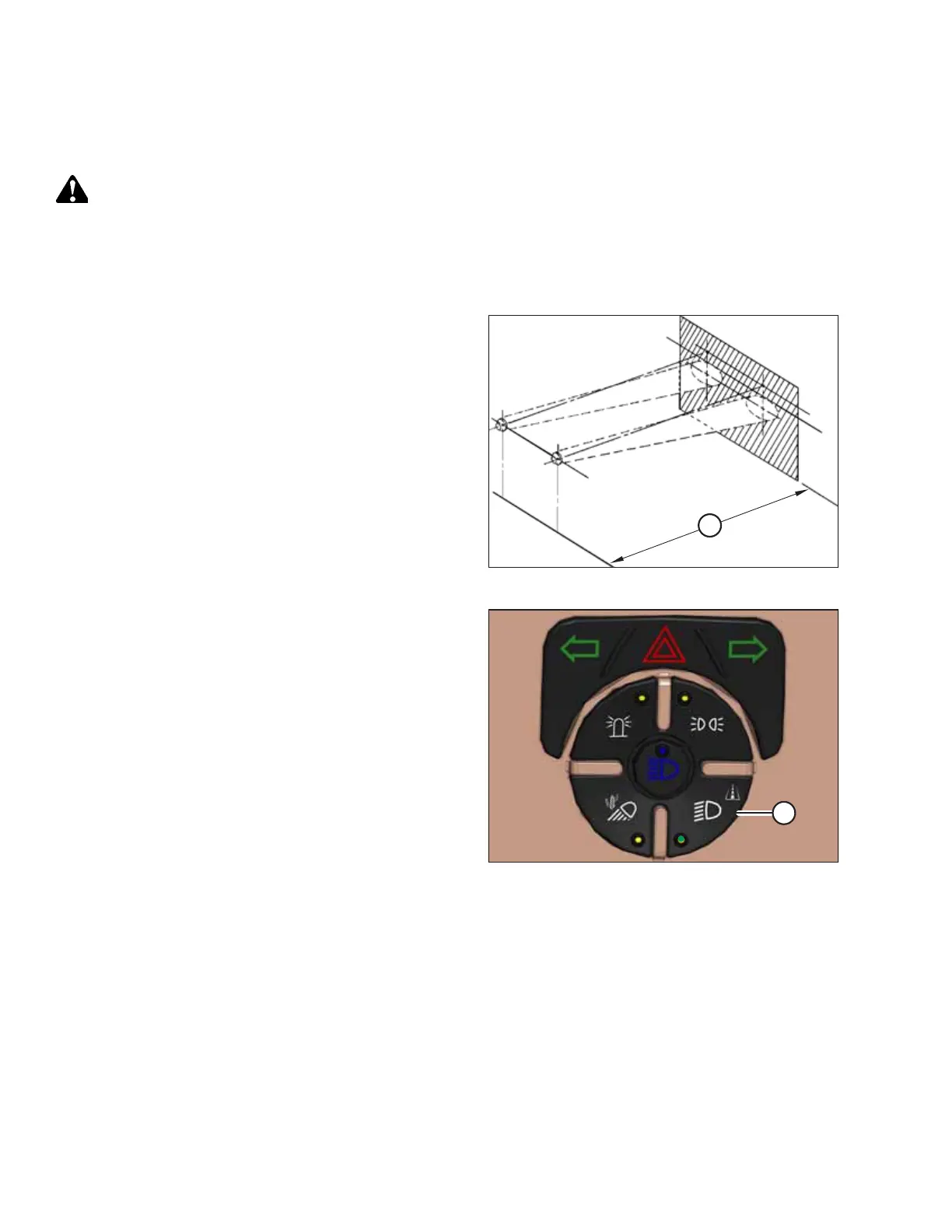

Figure 5.184: Windrower Headlight Positioning
1. Position the windrower on level ground 7.5 m (25 ft.) (A) in
front of a vertical surface as shown.
NOTE:
Check that casters are positioned underneath the
windrower to properly align headlights.
2. Shut down the engine, and remove the key from
the ignition.
Figure 5.185: Road Light Switch
3. Turn on ROAD lights (A) and switch to LOW BEAM.
MAINTENANCE AND SERVICING
