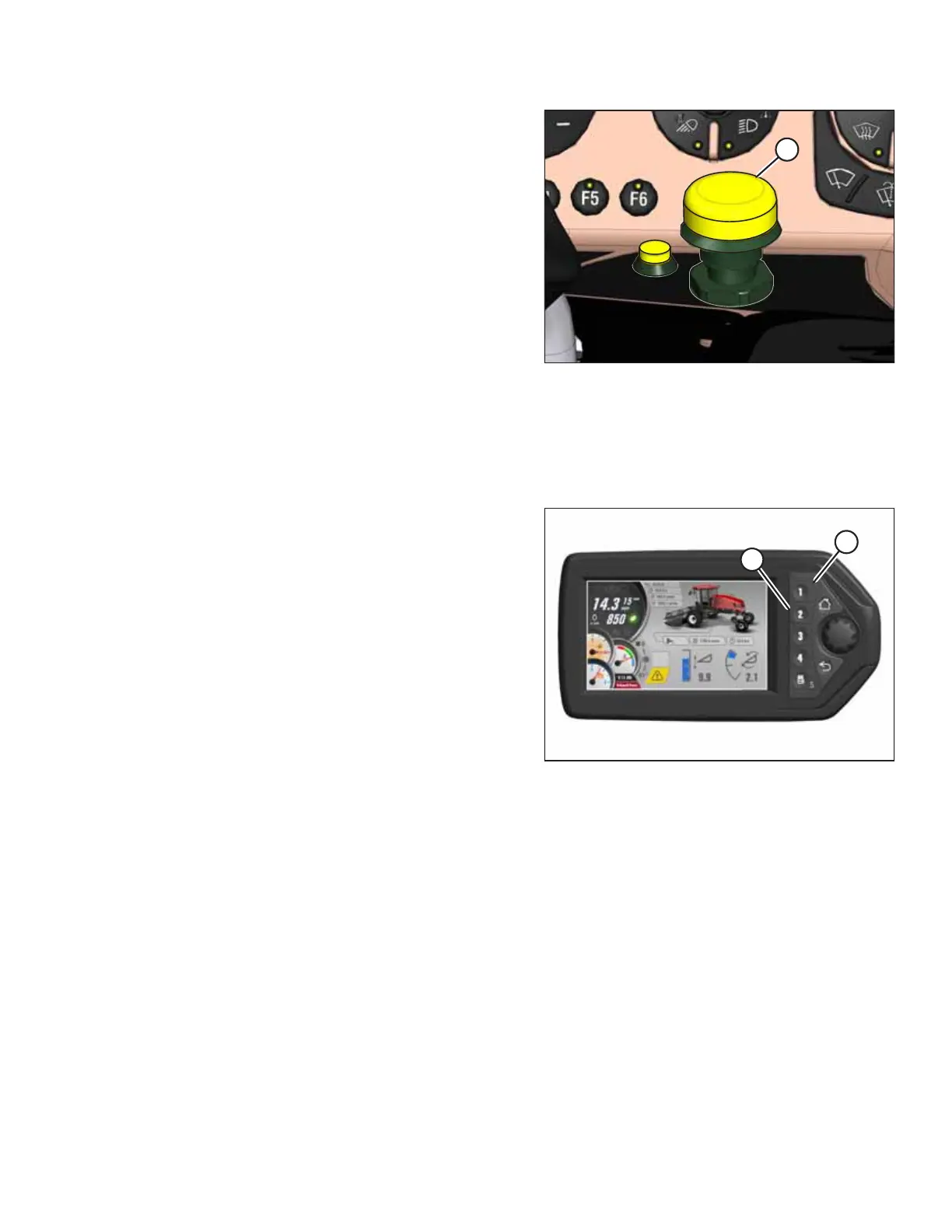

Figure 4.406: Header Engage Switch
4. After the deck(s) have stopped moving, disengage the
header with HEADER ENGAGE switch (A).
5. To adjust the float setting for the selected deck position
refer to Setting Float, page 253.
6. Repeat above procedure for the other deck positions.
4.6.9 Draper Header Run Screens
Two draper header-specific run screens are viewable when operating the windrower with a draper header attached. The
screens are accessed by pressing the applicable soft keys on the Harvest Performance Tracker (HPT).
1019625
A
B
Figure 4.407: Harvest Performance Tracker
1. Press soft key 1 (A) to access RUN SCREEN 1.
2. Press soft key 2 (B) to access RUN SCREEN 2.
