Connecting A40DX Auger Electrical and Hydraulics
Connecting the A40DX electrical and hydraulic connections to the windrower is a simple procedure, thanks to the
multicoupler. There is an additional step to perform if you are swapping a rotary disc header for an auger header.
CAUTION
Do NOT stand on an unlocked platform. It is unstable and may cause you to fall.
1015479
A
B

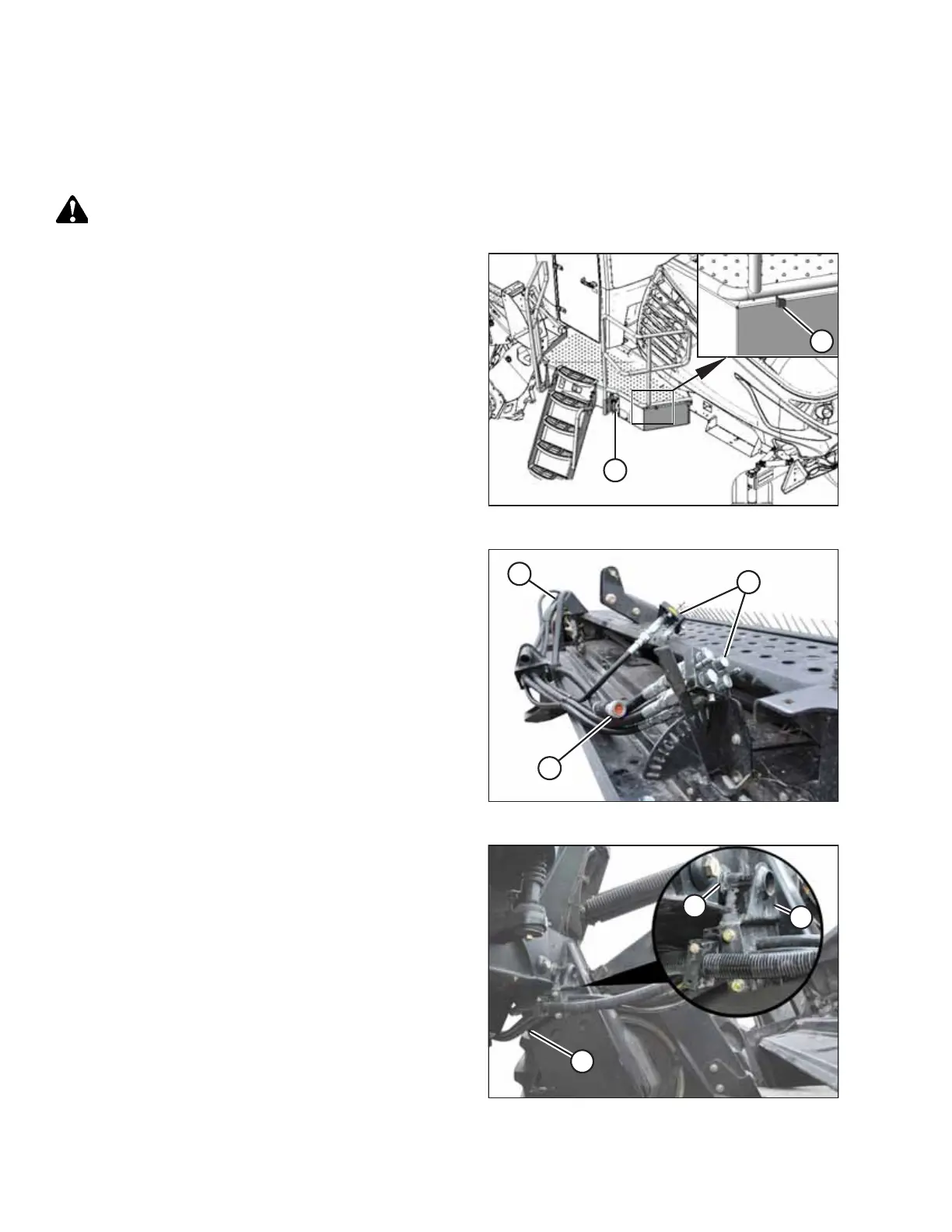

Figure 4.80: Left Cab-Forward Platform
1. Approach platform (A) on the left cab-forward side of the
windrower and ensure the cab door is closed.
2. Push latch (B), and pull platform (A) toward the walking
beam until it stops and the latch engages.
1019396
A
B
C
Figure 4.81: Hydraulic Hoses in Storage Position
3. Retrieve hydraulic multicouplers (A) and electrical
harness (B) from the header.
4. Route the hose/harness bundle toward the windrower
through support (C).
1019391
A
B
1024062
A
C
B
Figure 4.82: Multicoupler
5. Insert hose support (B) into hole (A) in the windrower left
leg, and route header hose bundle (C) under the windrower
to the hydraulic and electrical couplers.
