215916 361 Revision A
1031126
A
1
2
3
4
5
6
7
8
9
10
11
12

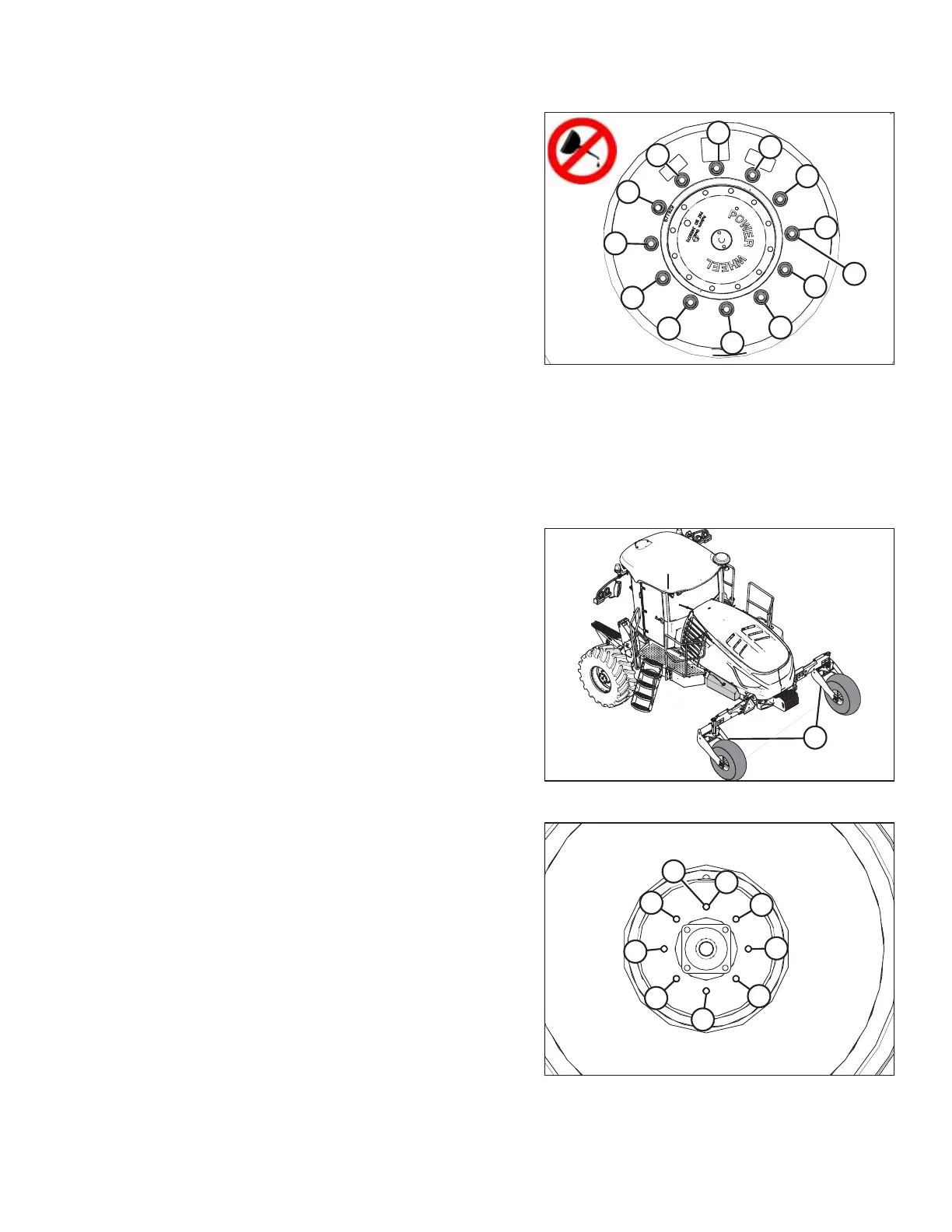

Figure 5.35: Drive Wheel – 12 Bolt (Optional)
5.6.2 Tightening Caster Wheel Nuts
At first use or when a wheel is removed, check wheel nut/bolt torque every 15 minutes on the road or 1 hour in the field
until the specified torque is maintained. Once specified torque is maintained, check wheel nut/bolt torque after 10 and 50
hours (field or road operation), and then every 200 hour intervals thereafter.
1023262
A
Figure 5.36: Caster Wheel Location
1. Locate caster wheel assemblies (A).
1000549
A
1
2
3
4
5
6
7
8
Figure 5.37: Forked Casters with Suspension
2. Tighten wheel nuts (A) to 163 Nm (120 lbf·ft) using the
tightening sequence shown at right. Repeat the tightening
sequence three times.
MAINTENANCE AND SERVICING
