215916 220 Revision A
1030514
A
B

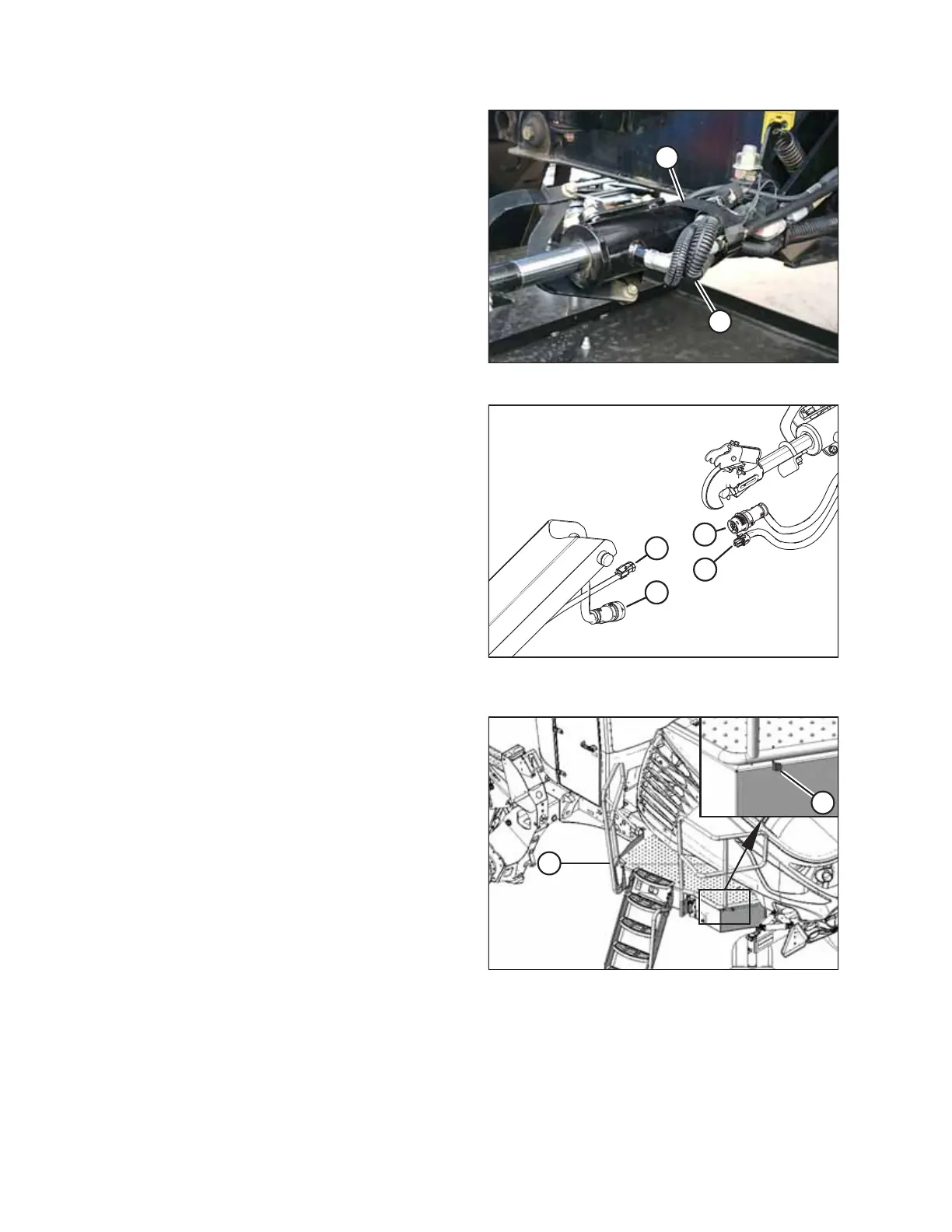

Figure 4.245: Electrical Harness Secured to Center-Link
5. Free electrical harness (A) from adjustable strap (B).
1034041
C
A
B
D
Figure 4.246: Electrical Harness Connection at
Center-Link
6. Connect main header harness (A) to adapter harness (B).
7. If you are connecting the standard-configuration R2
header equipped with the optional electric baffle control
kit: Connect electric baffle control harness (C) to adapter
harness (D).
8. If you are connecting an R2 header configured for grass-
seed harvesting: Connect actuator harness (C) to adapter
harness (D).
1015478
A
B
Figure 4.247: Left Cab-Forward Platform
9. Push latch (A) to unlock platform (B).
OPERATION
