MacDon M1240 - Locking and Unlocking the Swath Compressor

215916 229 Revision A
1034041
C
A
B
D

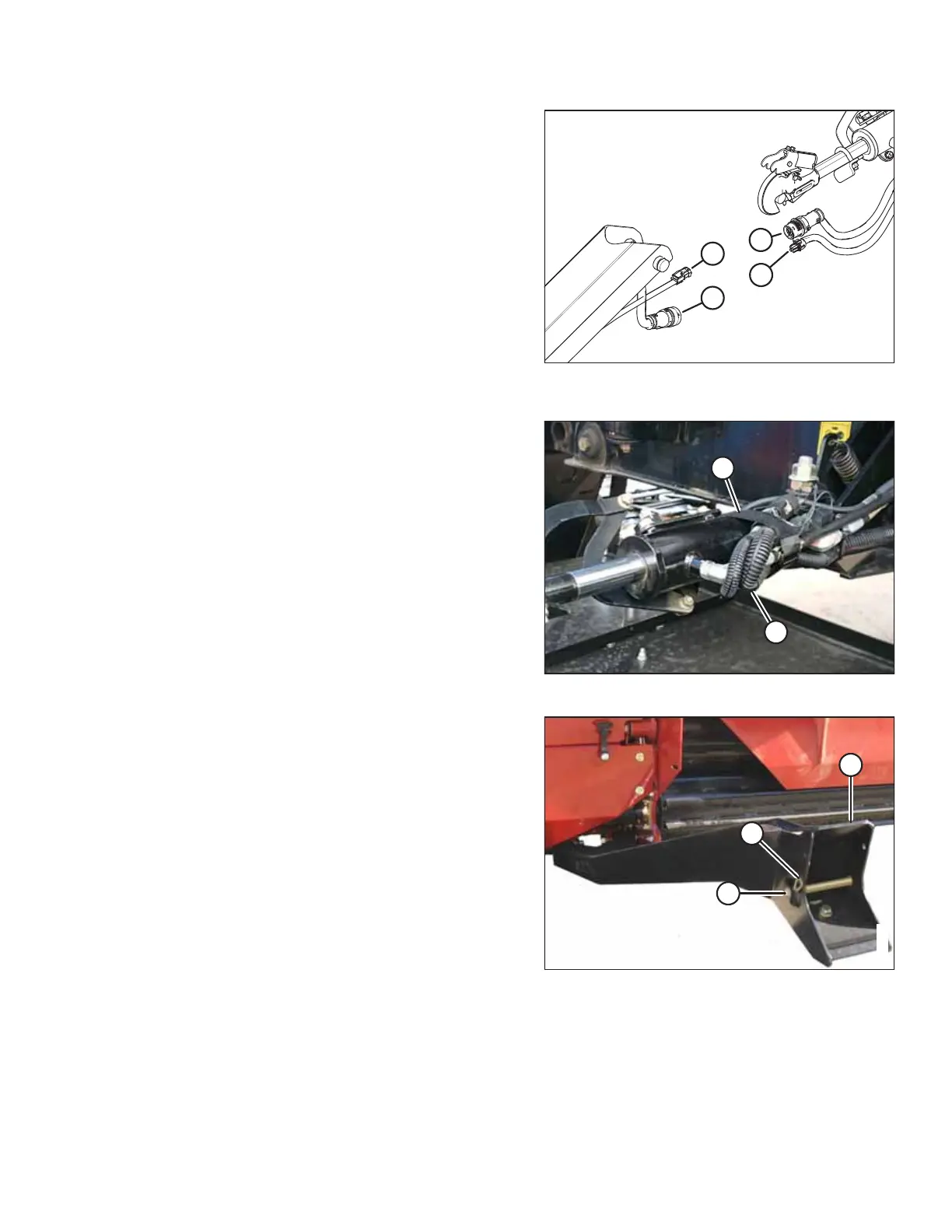

Figure 4.265: Electrical Harness Connection at
Center-Link
11. Disconnect main header harness (A) from adapter
harness (B).
12. Standard headers equipped with optional electric baffle
control kit: Disconnect electric baffle control harness (C)
from adapter harness (D).
13. Grass seed: Disconnect actuator harness (C) from adapter
harness (D).
1030514
A
B
Figure 4.266: Adapter Harness
14. Secure adapter harness (A) on the center link with an
adjustable strap (B).
1000812
A
B
C
Figure 4.267: Header Supports
15. Remove hairpin (B) from clevis pin (A). Remove the clevis
pin from header support (C) on both sides of the header.
OPERATION
