3.3.8 Vertical Dampener
Use the controls on the seat to adjust the seat’s vertical suspension dampening.

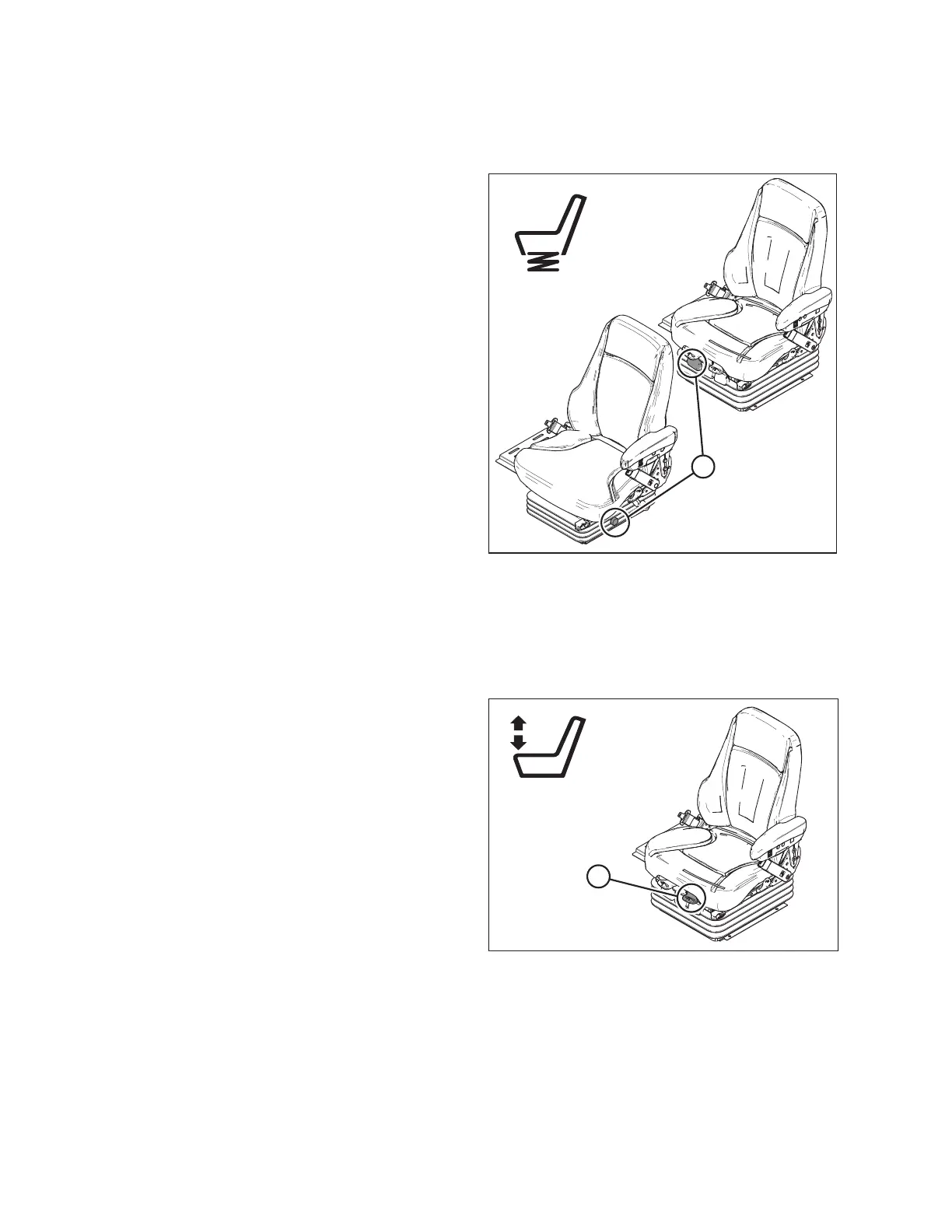

Figure 3.11: Operator’s Seat Vertical Dampener
Controls
• Turn knob (A) counterclockwise to increase vertical
dampener.
• Turn knob (A) clockwise to decrease vertical dampener.
3.3.9 Cushion Tilt – Deluxe Cab Only
Use the controls on the front of the seat to adjust the deluxe seat’s cushion tilt.
Figure 3.12: Deluxe Seat Cushion Tilt Controls
1. Pull lever (A) up to release.
2. Tilt the seat cushion up or down.
3. Release lever (A).
