215916 277 Revision A
1019596
A

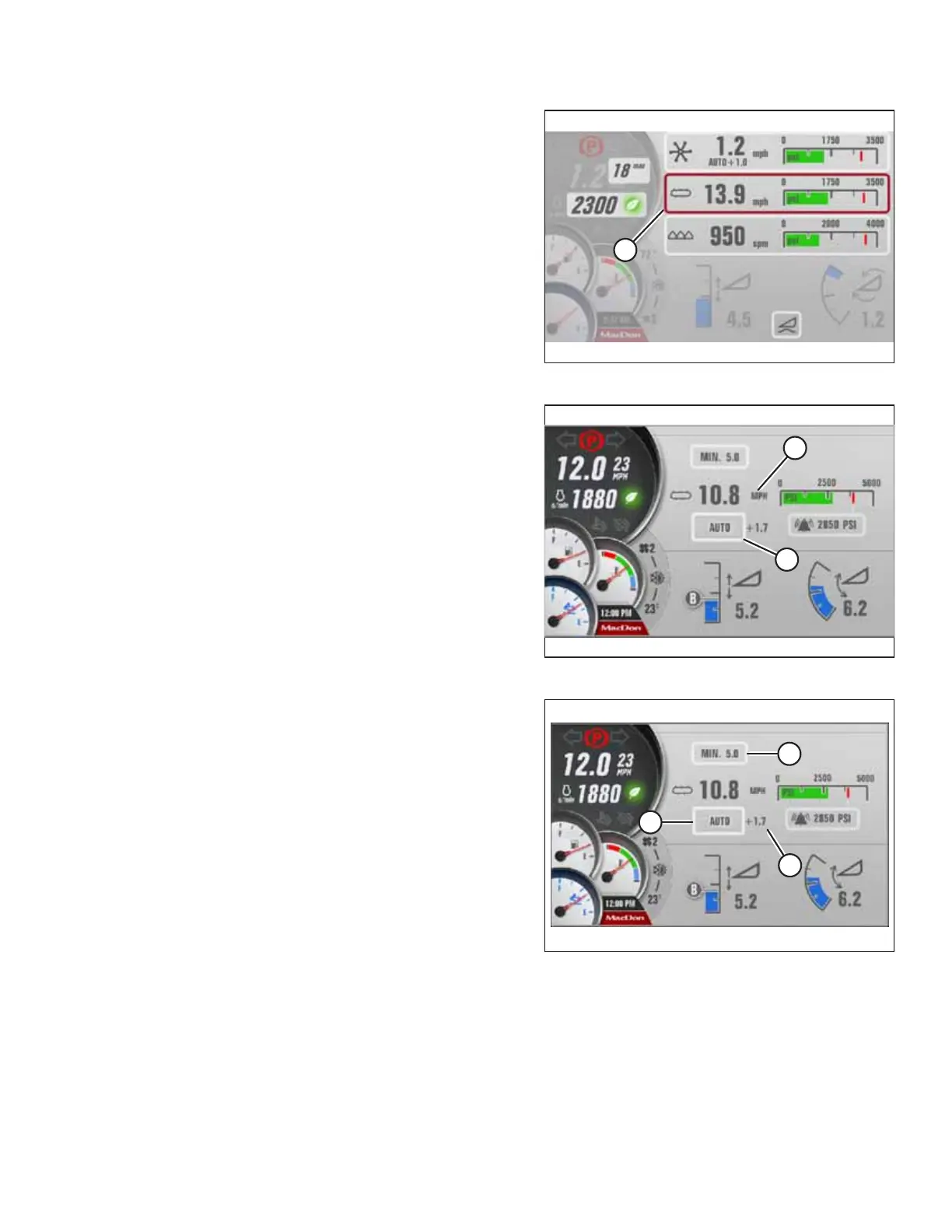

Figure 4.376: Header QuickMenu
3. Turn knob and scroll to DRAPER setting (A) on the
QuickMenu, and press the knob to select it. The next
page opens.
1023376
A
B
Figure 4.377: Draper Header Draper Page
4. Scroll to mode window (A) and select it.
5. Scroll in the pop-up window to AUTO and select it.
NOTE:
In AUTO mode, the speed is displayed in km/h or mph (B).
1023377
A
B
C
Figure 4.378: Draper Header Draper Page
6. Scroll to and select MINIMUM DRAPER SPEED setting (A)
(this setting is grayed out in manual mode).
7. Turn the scroll knob to adjust draper minimum speed to
1.6–8 km/h (1–5 mph) with 5 km/h (3.0 mph) as the
default). Press the knob to select the desired setting.
8. Scroll to INDEX value (C) and select it.
9. Turn the scroll knob to set the index value. The index range
is +/- 8 km/h (5 mph) (zero, i.e. equal to the ground speed,
is the default). Press the knob to select the desired setting.
NOTE:
The draper operates at MINIMUM SPEED when the ground
speed plus the reel index value is less than the set
minimum speed. The minimum reel speed is displayed (A)
and MIN will replace the AUTO +1.7 (B).
OPERATION
