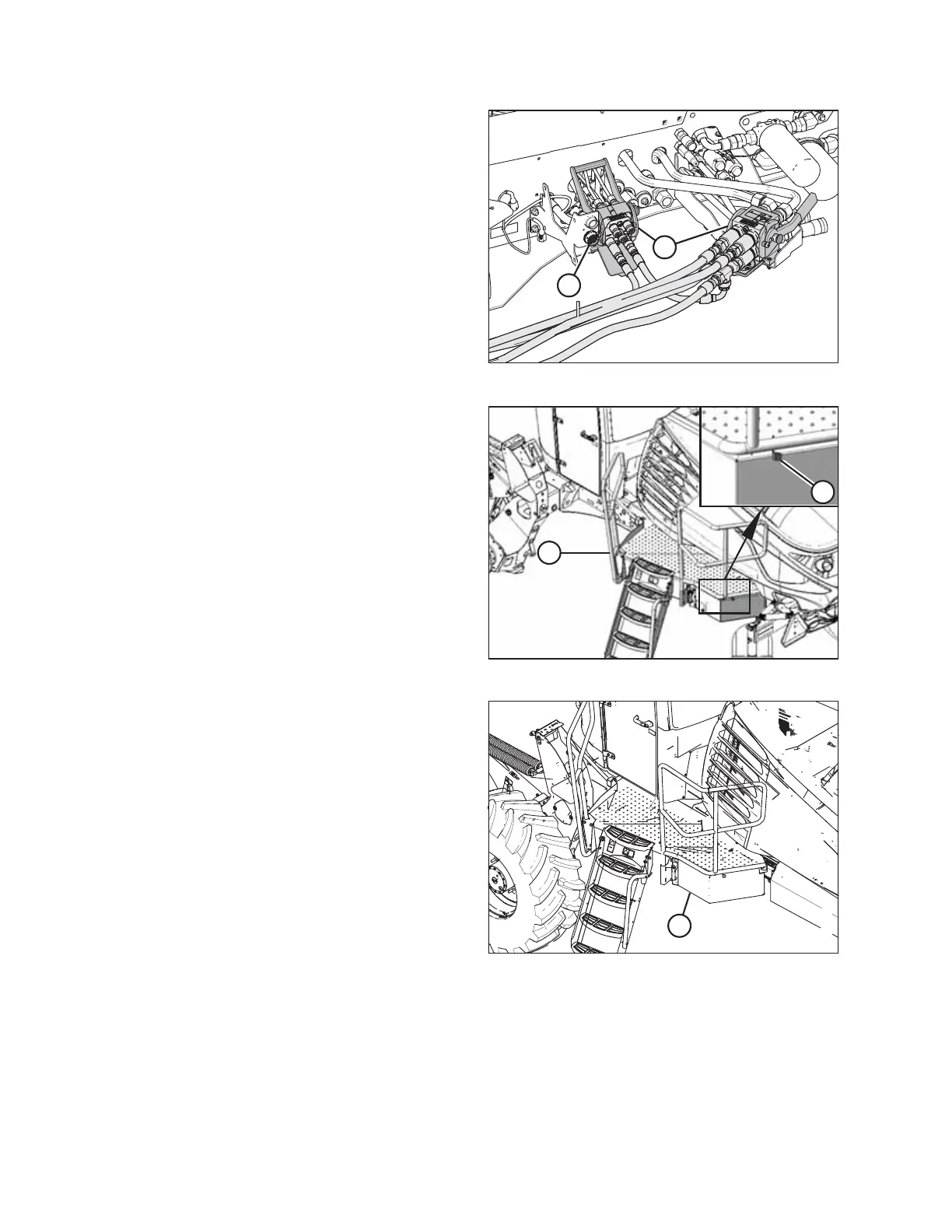

Figure 4.96: Header Drive Hydraulics
15. Disconnect header drive hydraulics (A) and electrical
harness (B) from the windrower.
1015478
A
B
Figure 4.97: Left Cab-Forward Platform
16. Push latch (A) to unlock platform (B).
1012700
A
Figure 4.98: Left Cab-Forward Platform
17. Pull platform (A) towards the cab until it stops and the latch
is engaged.
