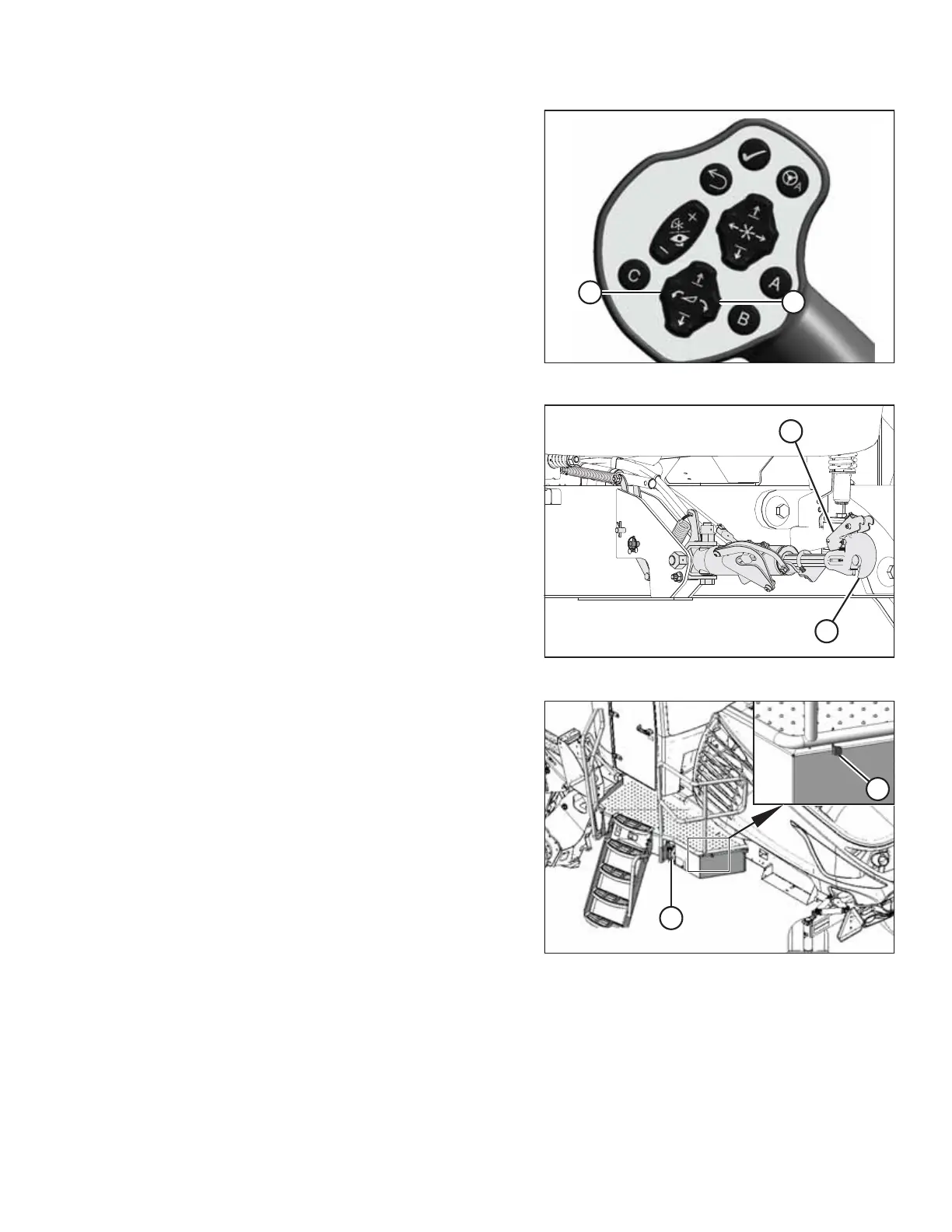

Figure 4.93: GSL
10. Activate HEADER TILT UP (A) and HEADER TILT DOWN (B)
cylinder switches on the GSL to release the load on the
center-link cylinder.
11. Shut down the engine, and remove the key from
the ignition.
Figure 4.94: Hydraulic Center-Link
12. Lift hook release (A) and lift hook (B) off header pin.
NOTE:
If the optional center-link self-alignment kit is installed, lift
release (A) and then operate the link lift cylinder with the
REEL UP switch on the GSL to disengage the center-link
from the header.
Figure 4.95: Left Cab-Forward Platform
13. Approach platform (A) on the left cab-forward side of the
windrower and ensure the cab door is closed.
14. Push latch (B), and pull platform (A) toward the walking
beam until it stops and the latch engages.
