MacDon M1240 - Reversing Header; Adjusting Header Angle

215916 195 Revision A
1027611
A
B
C
D
E

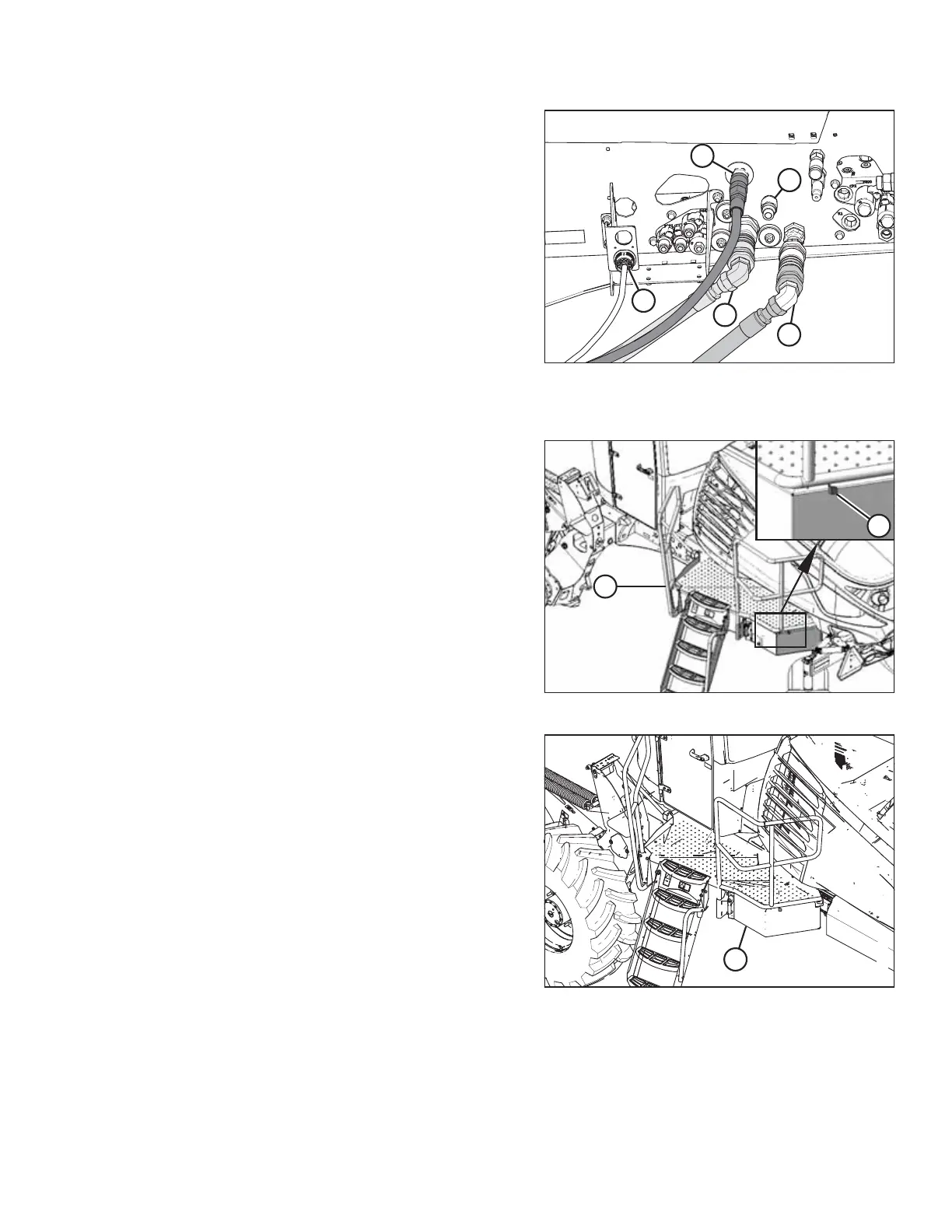

Figure 4.183: Quick Couplers on Rotary Disc Ready
Windrower with Case Drain Kit
5. Connect the hydraulic hoses to the windrower as follows:
a. Connect pressure hose female coupler (A) as shown.
b. Connect return hose male coupler (B) as shown.
c. Connect case drain hose (C) as shown.
NOTE:
The case drain hose coupler will be present only if the
M1240 Low Pressure Case Drain kit (MD #B6698) has
been installed.
IMPORTANT:
Ensure that the case drain hose is connected to
port (C), NOT port (E).
d. Connect the header’s electrical harness to
receptacle (D).
1015478
A
B
Figure 4.184: Left Cab-Forward Platform
6. Push latch (A) to unlock platform (B).
1012700
A
Figure 4.185: Left Cab-Forward Platform
7. Pull platform (A) towards the cab until it stops and the latch
is engaged.
OPERATION
