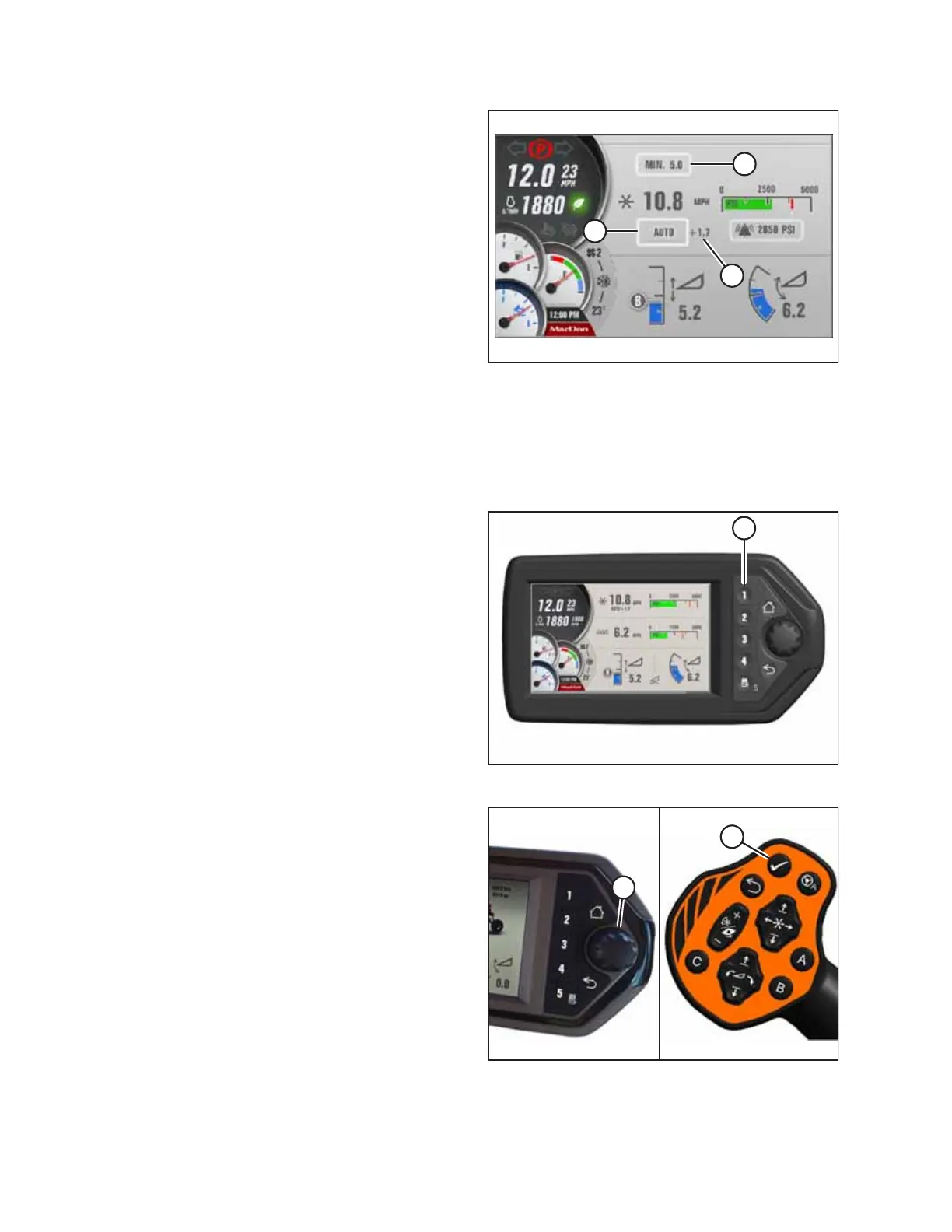

Figure 4.418: Auger Header Reel Screen
6. Scroll to MINIMUM REEL SPEED setting (A) and select it
(this setting is grayed out in manual mode).
7. Turn the scroll knob to adjust the minimum reel speed
between 0–8 km/h (5 mph). Press the knob to select the
desired setting.
8. Scroll to INDEX value (C) and select it.
9. Turn the scroll knob to set the index value. The index range
is +/- 8 km/h (5 mph) (zero, i.e. equal to ground speed, is
the default). Press knob to select desired setting.
NOTE:
The reel operates at reel minimum speed when the ground
speed is less than the set minimum speed. Minimum reel
speed is displayed (A) and MIN will replace the AUTO
+1.7 (B).
Setting Reel Speed in Manual Mode
This adjustment requires the header to be in operation.
1019648
A
Figure 4.419: Header Run Screen 1
1. If RUN SCREEN 1 is not already displayed, press soft
key 1 (A) on the Harvest Performance Tracker (HPT) to
display auger RUN SCREEN 1.
1014578
A
B
Figure 4.420: HPT Scroll Knob and GSL Select Button
2. Press scroll knob (A) on the Harvest Performance Tracker
(HPT) or SELECT button (B) on the ground speed lever (GSL)
to display the QuickMenu system.
OPERATION
