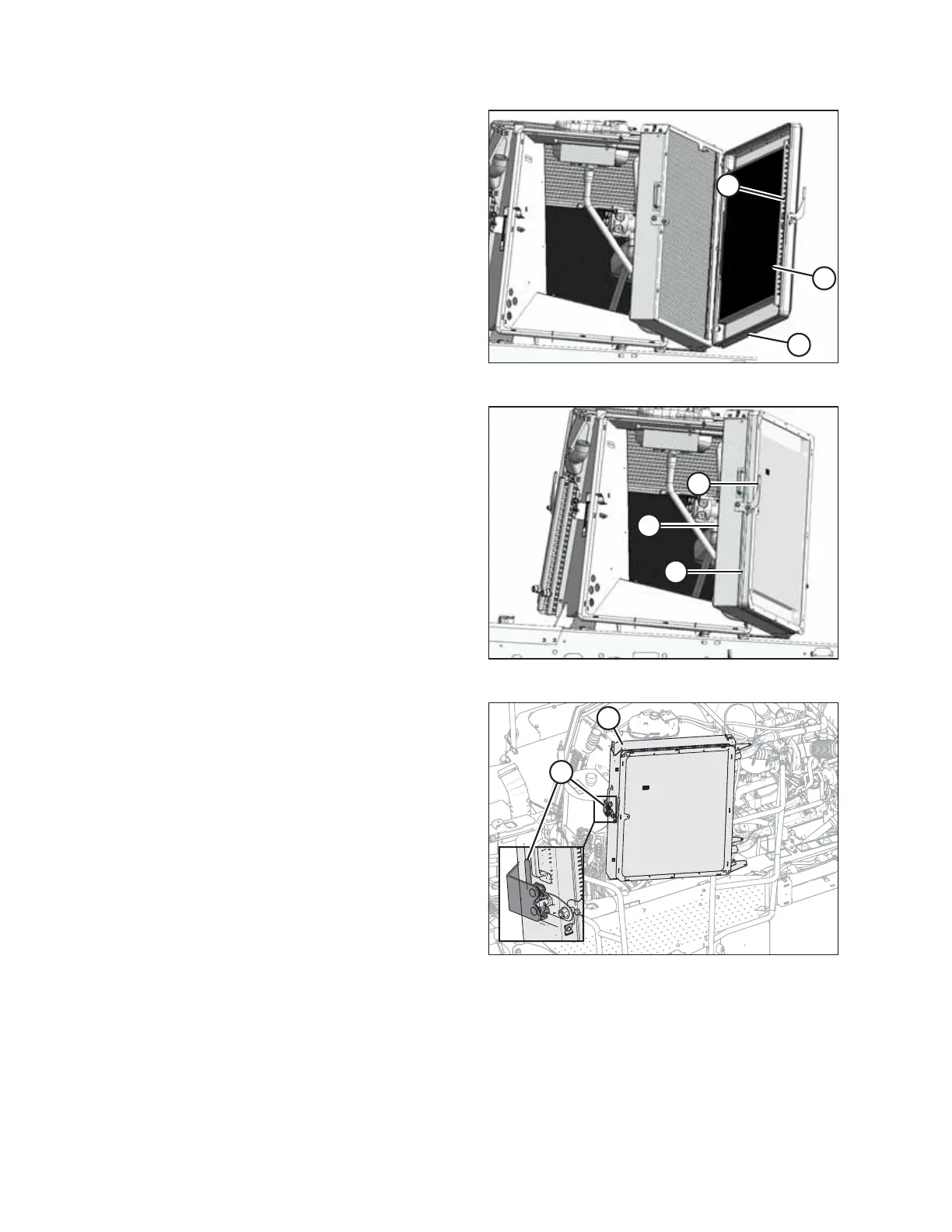

Figure 5.81: Left Cooler Module
6. Close condenser (B) into screen (C) and secure with
bracket (A).
1019887
A
B
C
Figure 5.82: Left Cooler Module
7. Close screen/condenser door (B) onto radiator door (C) and
secure with lever (A).
1015749
B
A
Figure 5.83: Left Cooler Module
8. Close radiator door (B) and push until latch (A) secures
door (B).
