MacDon M1240 - Every 500 Hours or Annually; Maintaining Fuel Filters; Removing Primary Fuel Filter

215916 300 Revision A
1014578
A
B

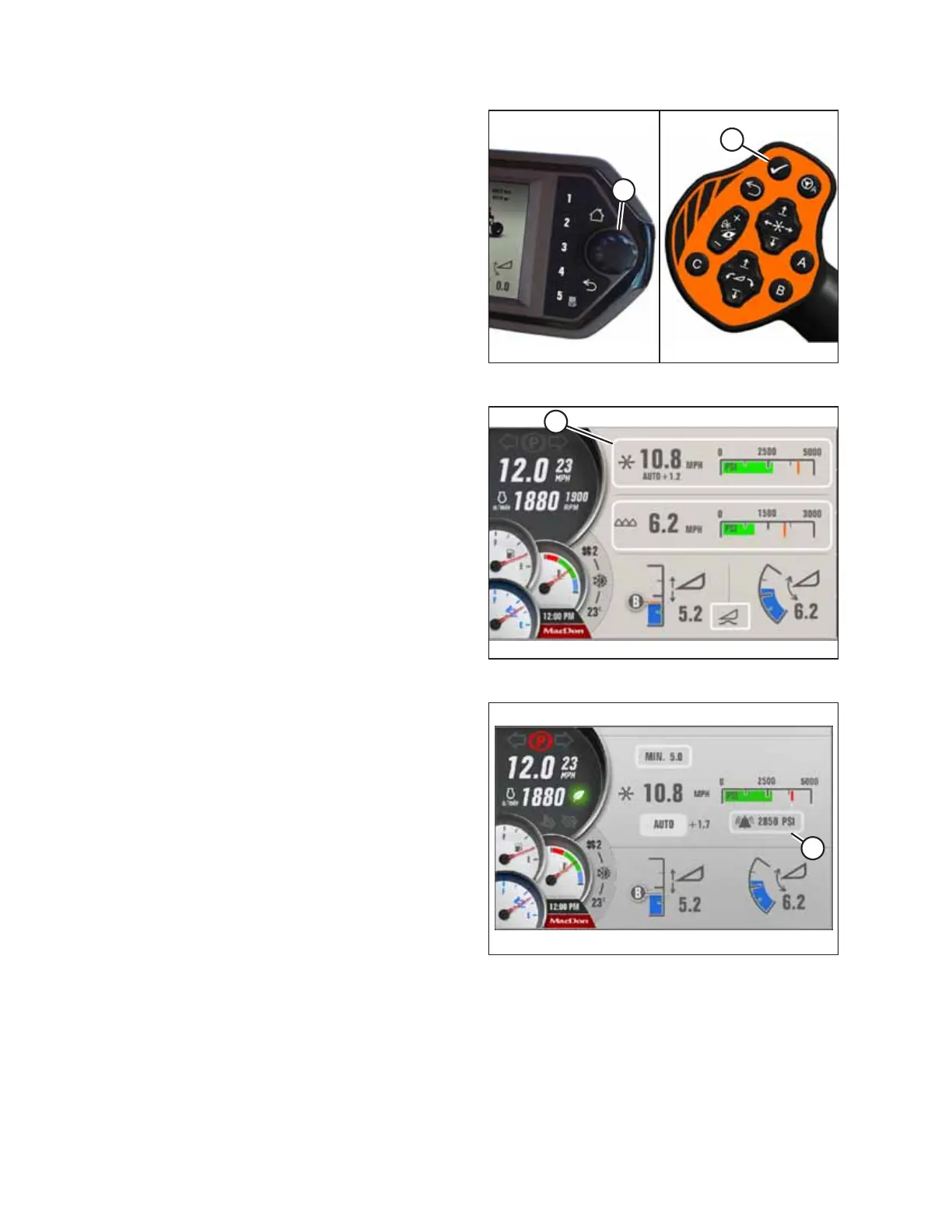

Figure 4.429: HPT Scroll Knob and GSL Select Button
2. Press scroll knob (A) on the Harvest Performance Tracker
(HPT) or SELECT button (B) on the ground speed lever (GSL)
to display the QuickMenu system.
10196381019638
A
Figure 4.430: Header QuickMenu Screen
3. Turn the knob to scroll to REEL setting (A) on the
QuickMenu, and press knob to select it. The next
page opens.
1015205
A
Figure 4.431: Setting Reel Alarm Pressure
4. Turn the scroll knob to highlight reel pressure ALARM (A),
and press knob to select it.
5. Turn the knob to change the ALARM set-point in
window (A). Scrolling past the highest setting turns off the
alarm. When the alarm point is off, the digital value is
replaced with three dashed lines.
6. Adjust the reel alarm pressure set-point to the desired
value, and press the knob to select it. Factory setting is
19,995 kpa (2900 psi).
OPERATION
