215916 118 Revision A

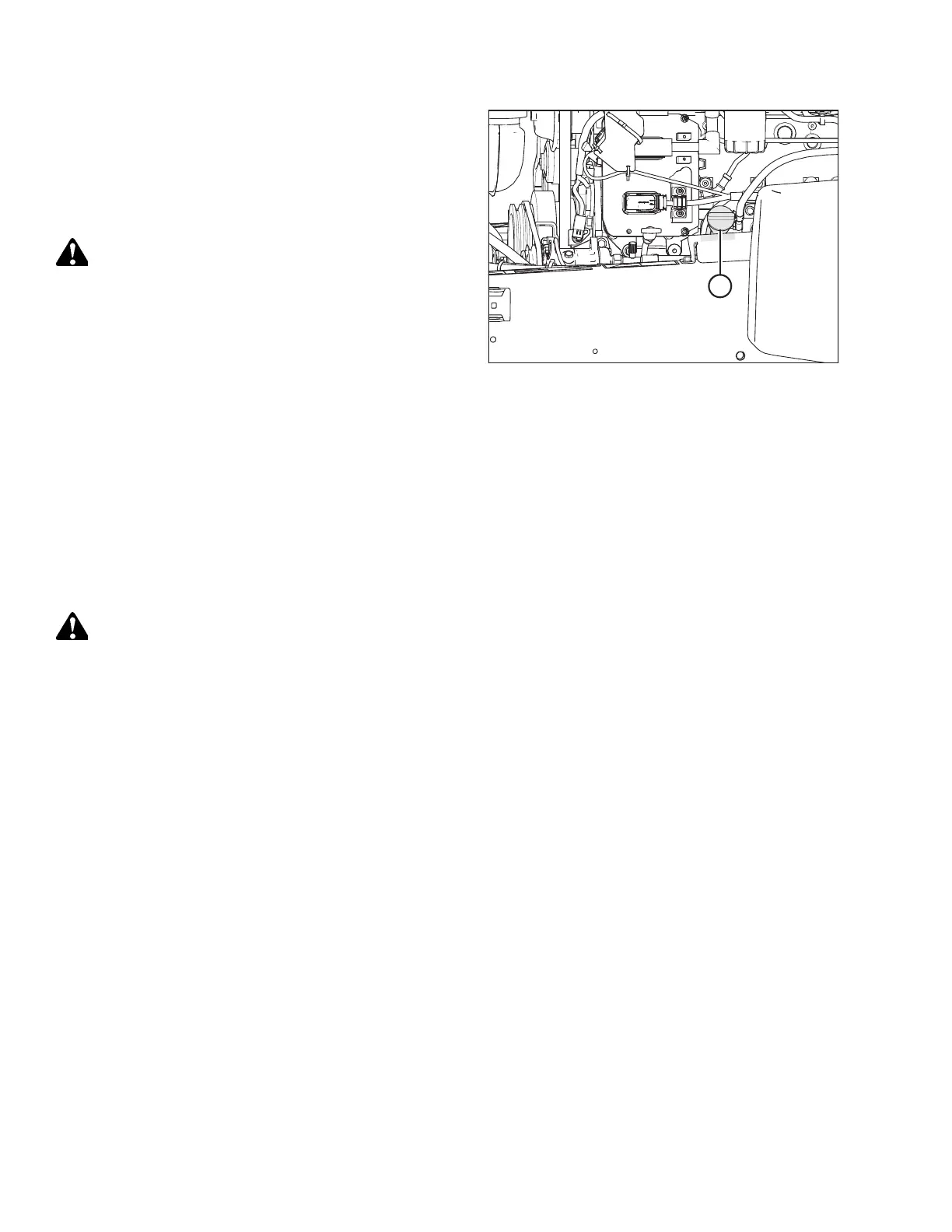

Figure 4.12: Oil Filler Cap
3. Clean the area around filler cap (A) and remove it by
turning the cap counterclockwise.
4. Carefully pour in of new oil. A funnel is recommended to
avoid spillage. Refer to 5.1.4 Lubricants, Fluids, and System
Capacities, page 328 for oil specifications.
CAUTION
Do NOT fill above the HIGH mark.
5. Replace oil filler cap (A) and turn it clockwise until snug.
6. Check the oil level. For instructions, refer to Checking Engine Oil Level, page 116.
7. Close the hood. For instructions, refer to 5.3.2 Closing Hood, page 336.
4.3.5 Engine Operation
Refer to this section to learn how to start, operate, and shut down the windrower’s engine.
Starting Engine
You can start the engine with the operator’s seat in the cab-forward or the engine-forward position.
DANGER
• Only start the engine in a well-ventilated space.
• Ensure that there are no bystanders present when starting the machine.
• This machine has safety devices which allow the engine to start only when the ground speed lever (GSL) is in PARK,
the steering wheel is locked in the PARK position, and the HEADER ENGAGE switch is in the OFF position. Under NO
circumstances are these devices to be deliberately rewired or adjusted so that the engine can be started when the
GSL is out of the NEUTRAL position.
• Do NOT start the engine by shorting across the starter or starter relay terminals. If the normal starting circuitry is
bypassed, the machine can start with the drive engaged and potentially start moving.
• Start the engine only from the operator’s seat with the controls in PARK. NEVER start the engine while standing on
the ground. NEVER try to start the engine with someone under or near the machine.
IMPORTANT:
Before starting the windrower, check the levels of the following fluids, and add more if necessary:
• Engine oil – refer to Checking Engine Oil Level, page 116
• Hydraulic oil – refer to 5.7.3 Checking Hydraulic Oil, page 373
• Gearbox oil – refer to 5.7.7 Checking Engine Gearbox Lubricant Level and Adding Lubricant, page 378
IMPORTANT:
Do NOT tow the machine to start the engine. Damage to the hydrostatic drives will result.
OPERATION
