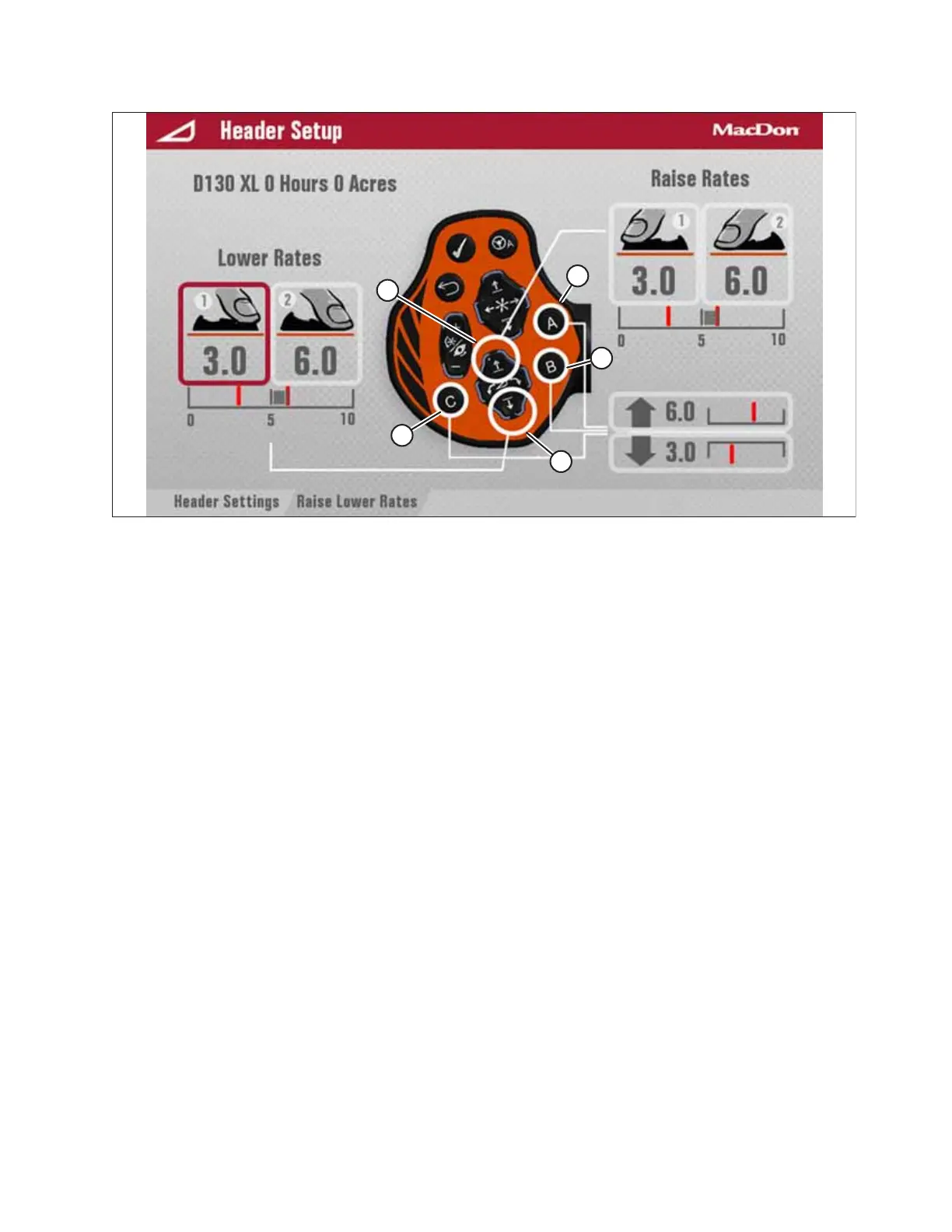

Figure 4.350: Header Raise and Lower Rates
6. The header lift/lower rate is adjustable in two stages: a half button press adjusts stage one (slow rate); a full button
press adjusts stage two (fast rate).
Scroll through the RAISE FIRST/RAISE SECOND and LOWER FIRST/LOWER SECOND menu selections, and program the
following GSL buttons:
• HEADER RAISE (D): half button press adjusts stage one (slow rate); full button press adjusts stage two (fast rate)
• HEADER LOWER (E): half button press adjusts stage one (slow rate); full button press adjusts stage two (fast rate)
• ONE-TOUCH-RETURN buttons (A), (B), and (C): trigger header raise or lower presets
OPERATION
