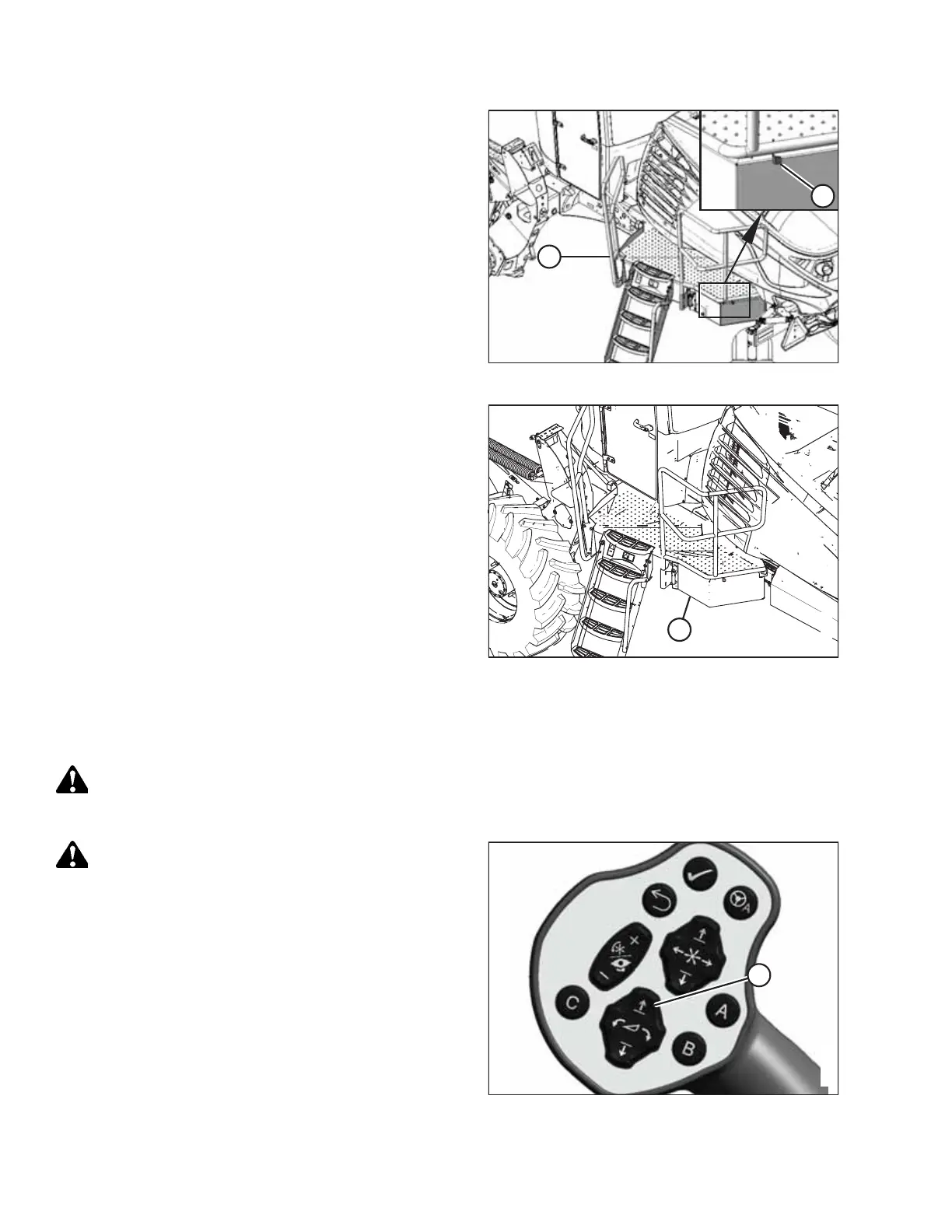

Figure 4.293: Left Cab-Forward Platform
9. Push latch (A) to unlock platform (B).
Figure 4.294: Left Cab-Forward Platform
10. Pull platform (A) towards the cab until it stops and the latch
is engaged.
11. Close the platform. For instructions, refer to 5.4.2 Closing Platform, page 337.
Detaching R85 4.9 m (16 ft.) Rotary Disc Header
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
Figure 4.295: Ground Speed Lever
DANGER
Ensure that all bystanders have cleared the area.
1. Start the engine, and press header raise switch (A) to raise
the header to the maximum height.
2. Shut down the engine, and remove the key from
the ignition.
