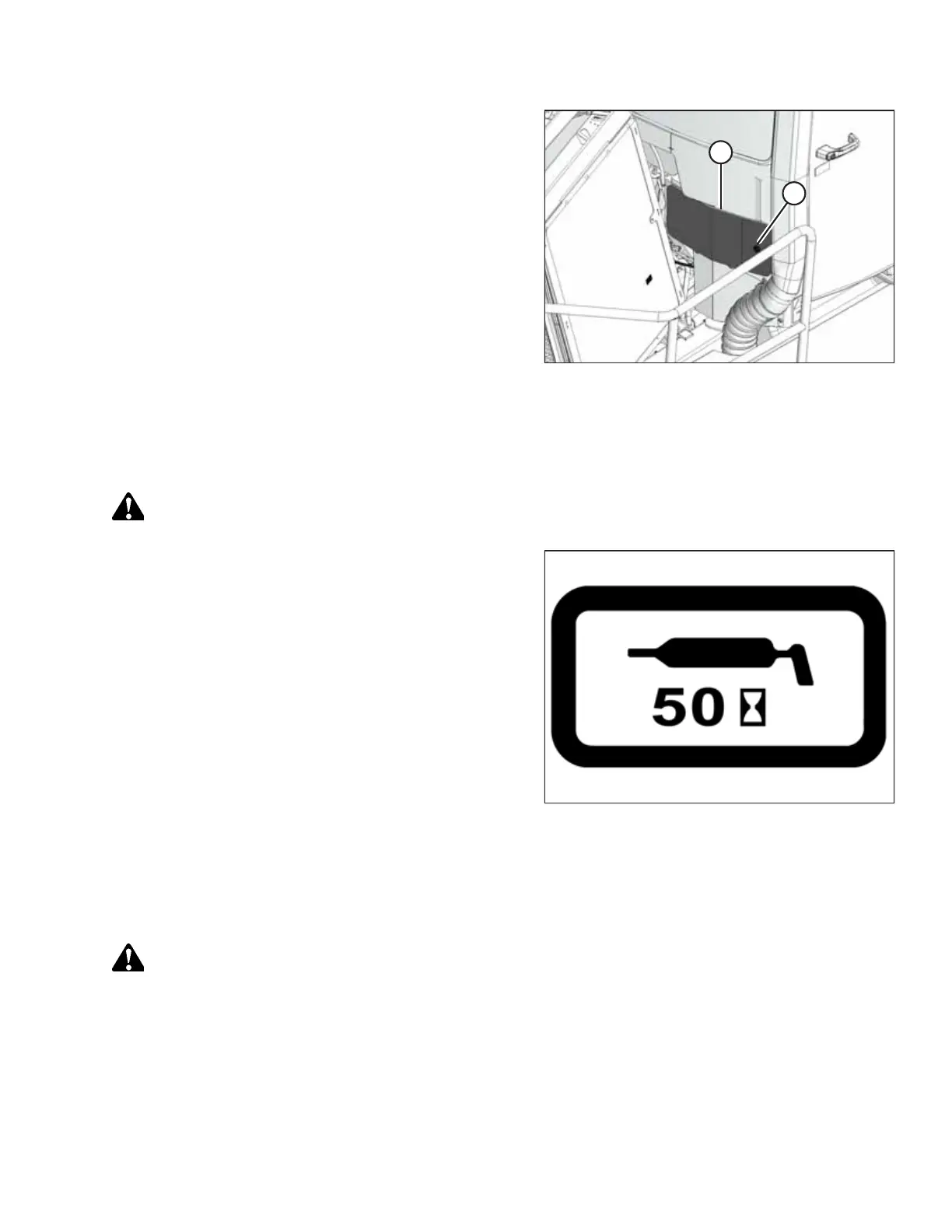

Figure 5.71: Fresh Air Intake Filter Cover
5. Insert the tabs on fresh air filter door (B) into the slots on
the fresh air box, and rotate latch (A) clockwise to secure
the door.
5.8.2 Greasing Windrower
The greasing points are marked on the machine by decals showing a grease gun and grease interval in hours of operation.
WARNING
To avoid personal injury, before servicing the windrower or opening drive covers, follow procedures in 1 Safety, page 1.
Figure 5.72: Greasing Interval Decal
Log hours of operation and use the Maintenance Checklist
provided to keep a record of scheduled maintenance. Refer to
5.2.2 Maintenance Schedule/Record, page 332.
Greasing Procedure
Add grease to these greasing points according to the maintenance schedule. Be sure to leave a small amount of grease on
top of each fitting to prevent contamination.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. To avoid injecting dirt and grit, wipe each grease fitting with a clean cloth before greasing.
2. Inject grease through the fitting with a grease gun until the grease overflows the fitting, except where noted. For
specifications, refer to the inside back cover.
3. Leave excess grease on the fitting to keep out dirt.
MAINTENANCE AND SERVICING
