MacDon M1240 - Page 402

215916 382 Revision A

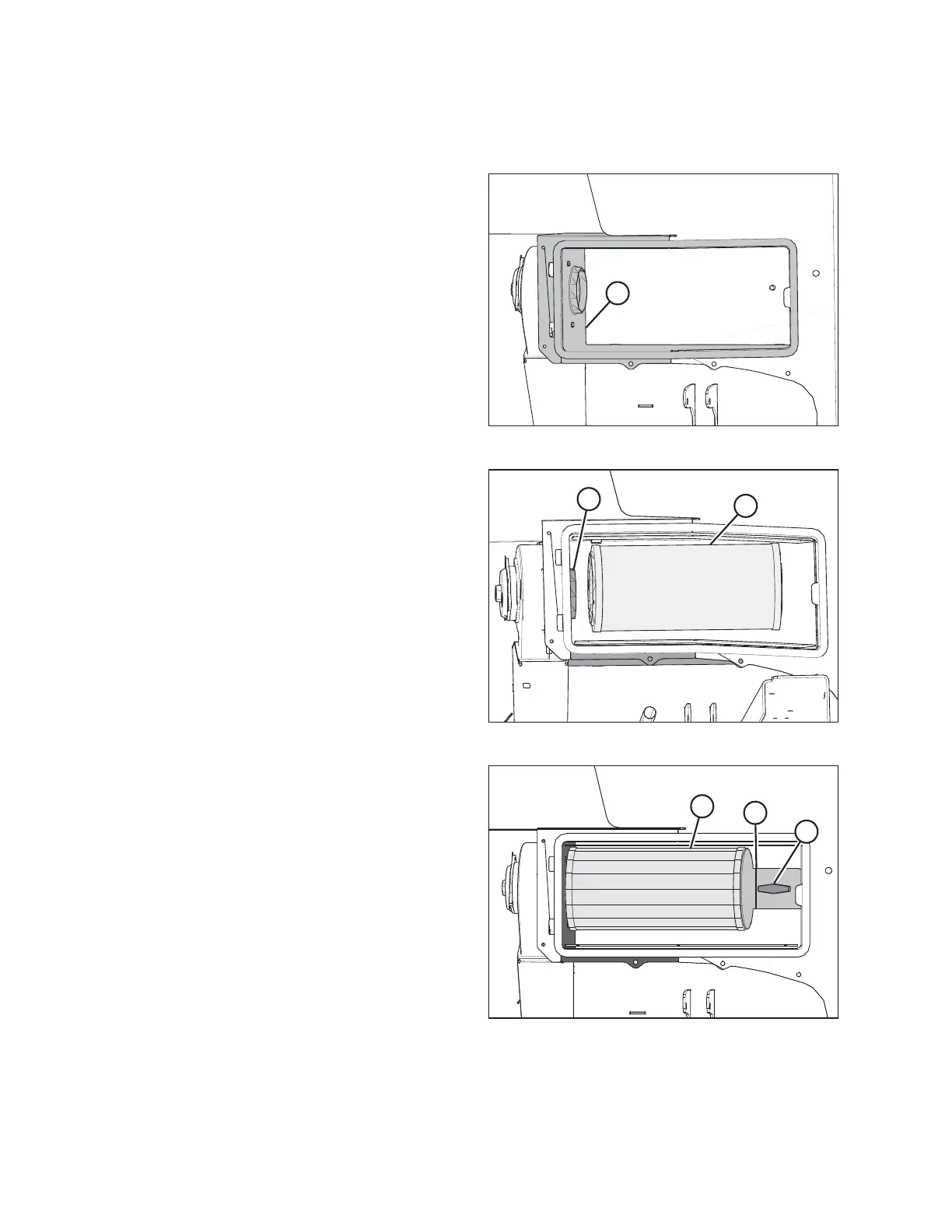

Installing Fresh Air Intake Filter
Refer to 5.1.5 Filter Part Numbers, page 329 for part number.
1015293
A
Figure 5.68: Fresh Air Intake Box
1. Clean the interior of fresh air intake box (A).
1015294
A
B
Figure 5.69: Fresh Air Intake Filter
2. Install air filter (A) onto fresh air box panel (B).
1022381
A
B
C
Figure 5.70: Fresh Air Intake Filter
3. Secure air filter (C) with retainer (B).
4. Install knob (A), and turn it clockwise to tighten.
MAINTENANCE AND SERVICING
