MacDon M1240 - Setting Header Height; Double Windrowing

215916 198 Revision A
1012700
A

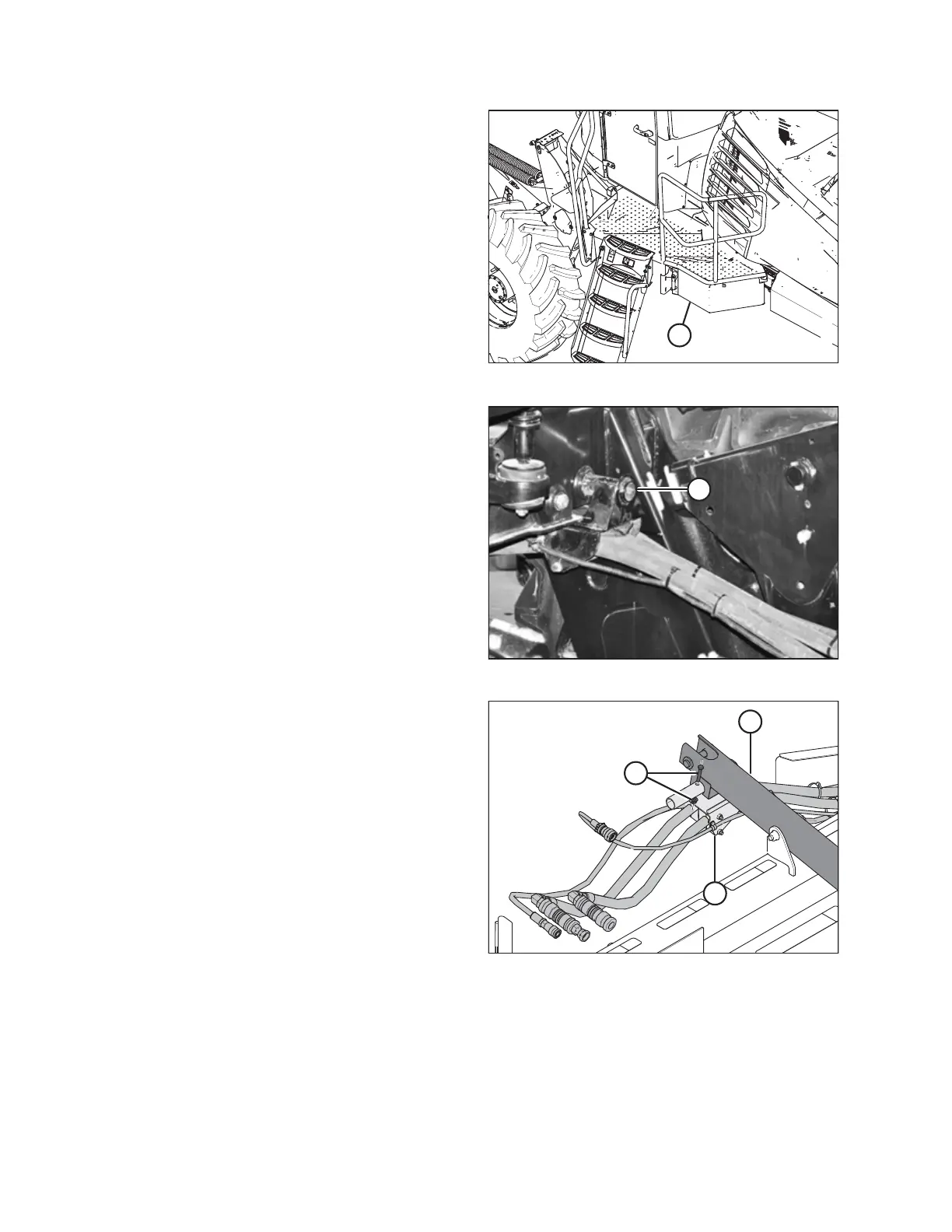

Figure 4.191: Left Cab-Forward Platform
9. Pull platform (A) towards the cab until it stops and the latch
is engaged.
1019603
A
Figure 4.192: Hoses on Windrower
10. Remove hose support (A) and the hose bundle from the
windrower frame.
1021553
B
C
A
Figure 4.193: Hose Storage Position
11. Slide support (A) into center-link support (B) and secure it
with hardware (C).
