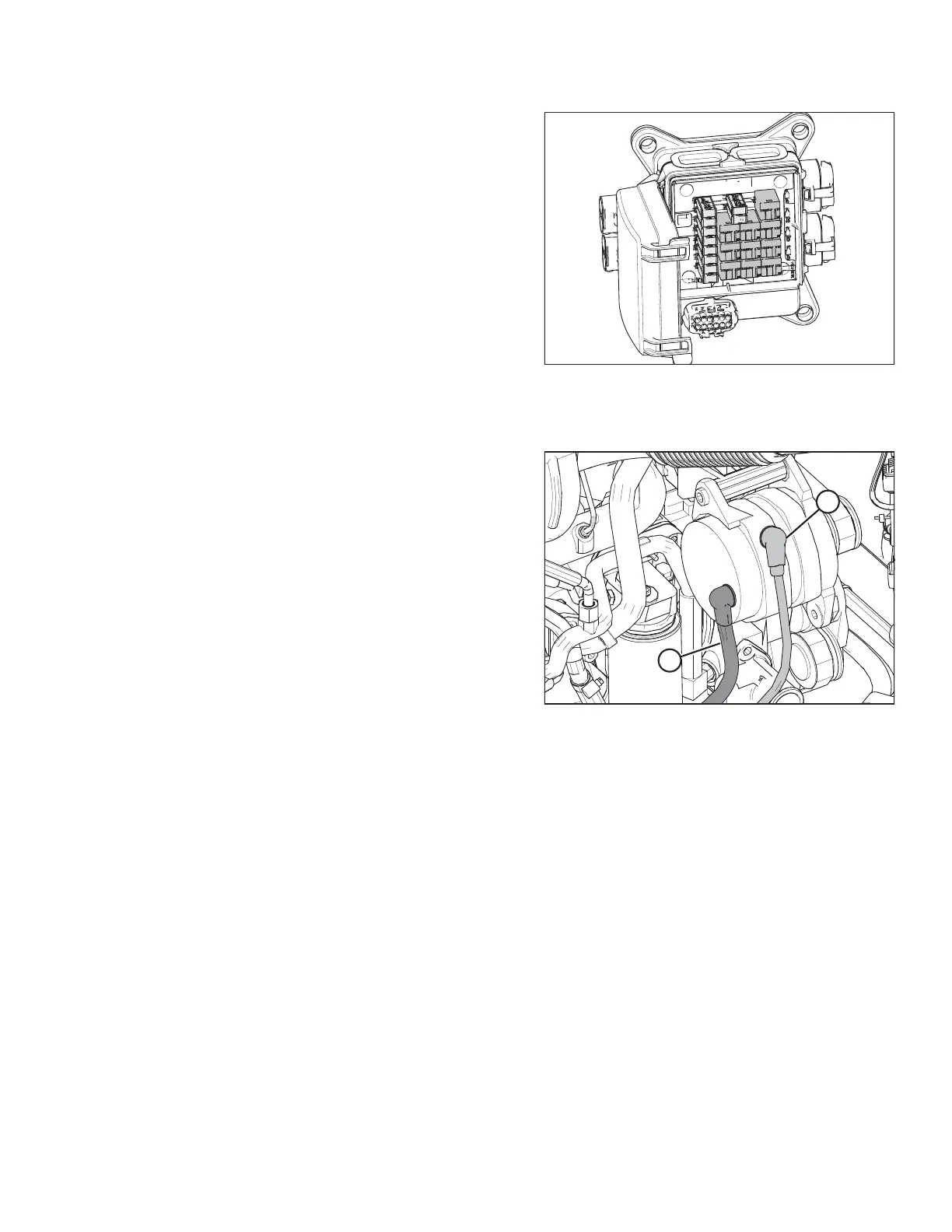

Figure 5.31: Roof Relay Module
The roof relay module is located inside the cab’s headliner.
Preventing Electrical System Damage
Figure 5.32: Alternator
A - Negative Terminal B - Positive Terminal
To prevent electrical system damage, take the following
precautions:
• Carefully observe polarity when attaching
booster battery.
• Do NOT short across battery or alternator terminals or
allow battery positive (+) cable (B) or alternator wire to
become grounded.
• Be sure alternator connections are correct before
connecting the cables to the battery.
• When welding on any part of the machine, disconnect
battery cables. For instructions, refer to 1.8 Welding
Precaution, page 9.
• Always disconnect battery ground cables when working
with the alternator or regulator.
• Never attempt to polarize alternator or regulator.
• If wires are disconnected from the alternator, refer to Figure 5.32, page 359 to ensure proper connection.
• Never ground the alternator field terminal or field.
• Never connect or disconnect alternator or regulator wires with battery connected or alternator operating.
• Always disconnect cables from the battery when using a charger to charge battery in windrower.
• Ensure all cables are securely connected before operating engine.
• To avoid damage to circuit boards by static electricity, disconnect negative battery terminals when replacing
electronic control modules. Furthermore, when handling electronic control modules, avoid touching the connector
pins directly.
