3.10.3 Climate Controls
The climate controls are located on the console. Use them to change the temperature or adjust the air movement inside
the cab.
NOTE:
When switches (A), (C), (D), and (E) are activated, the LED light on the switch will turn amber.

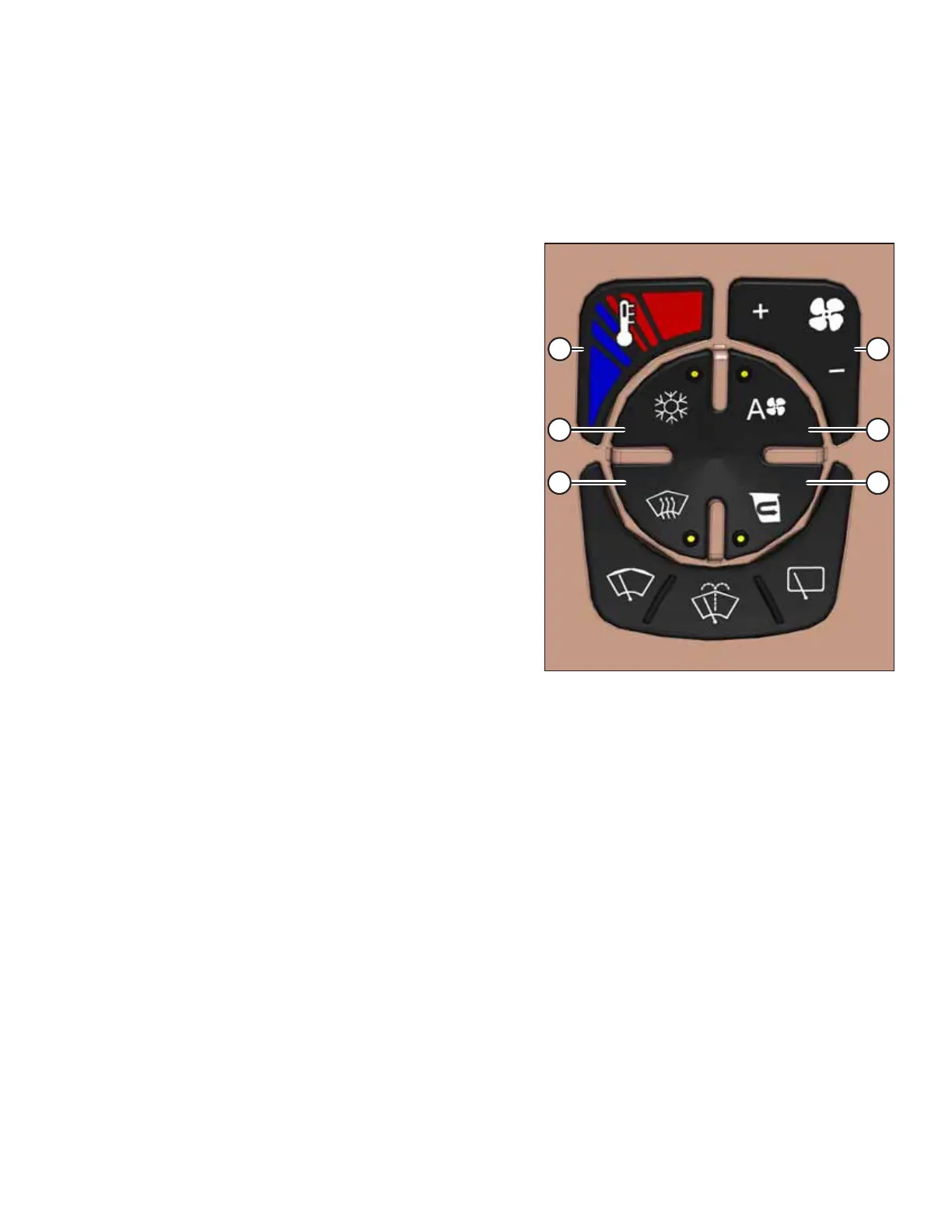

Figure 3.38: Climate Controls
Auto fan speed switch (A)
Sets the climate control system to auto mode, which
automatically adjusts the fan speed to maintain the set-point
temperature.
Blower control toggle switch (B)
Controls the blower speed. Overrides auto fan control.
• Press + for more air flow
• Press – for less air flow
Recirculating air switch (C)
Controls the air source; stops booster fan so cab air is
recirculated.
Windshield defog/defrost switch (D)
The windshield defog/defrost operates with A/C switch (E) ON.
Air conditioning (A/C) switch (E)
Controls the A/C system.
The A/C operates with the blower switch ON and blower speed
is set above 0.
Temperature control toggle switch (F)
Controls cab temperature.
• Press red (top) area to increase cab temperature.
• Press blue (bottom) area to decrease cab temperature.
IMPORTANT:
When starting the windrower after more than 1 week of storage, it may be necessary to distribute the refrigerant oil
throughout the A/C system. For instructions, refer to Air Conditioning Compressor Coolant Cycling, page 113.
