215916 339 Revision A

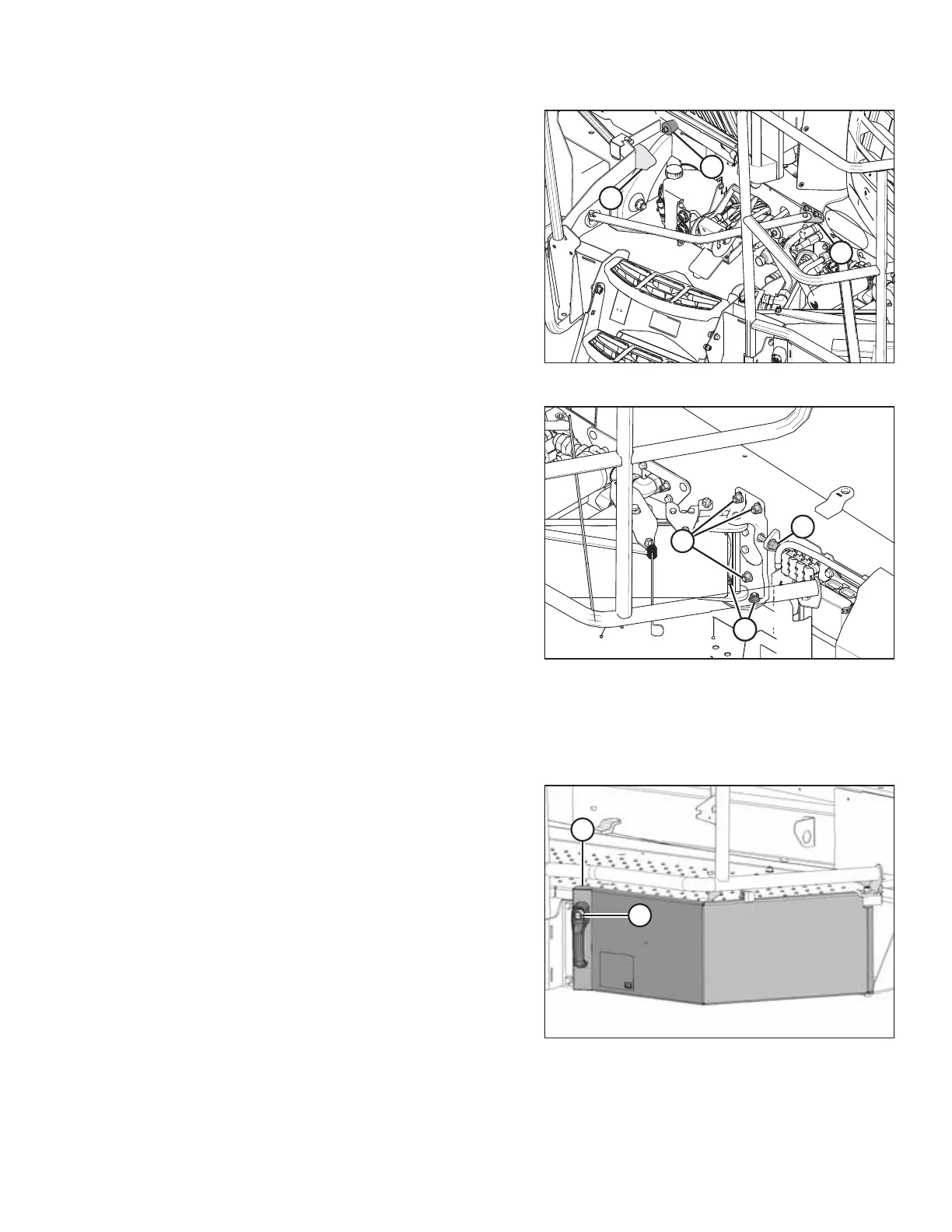

Figure 5.10: Left Platform
4. Rubber bumper (B) at the cab end of the platform should
measure 52–60 mm (2–2 3/8 in.) when properly
compressed against the frame. The platform should also sit
firmly against front guide (A).
NOTE:
The top plate of the platform has been removed for clarity.
5. If adjustment is required, loosen two bolts (C) and slide the
support as required.
6. Tighten bolts (C) to 39.5 Nm (29.1 lbf·ft).
Figure 5.11: Left Platform
7. To adjust the horizontal position of the platform, loosen
bolts (A) and adjust bolt (B).
8. Tighten bolts (A) to 68.5 Nm (50.5 lbf·ft).
9. Use bolts (C) to adjust the platform angle. Tighten bolts (C)
to 68.5 Nm (50.5 lbf·ft) after adjustment is complete.
5.4.4 Accessing Tool Box
A tool box is located inside a storage compartment under the left cab-forward platform.
Figure 5.12: Tool Box
1. Grasp the handle on storage compartment (A) and press
latch (B). Pull the unlatched handle to open the
compartment.
MAINTENANCE AND SERVICING
