215916 223 Revision A
1034102
A
B
C
H
F
E
D
G

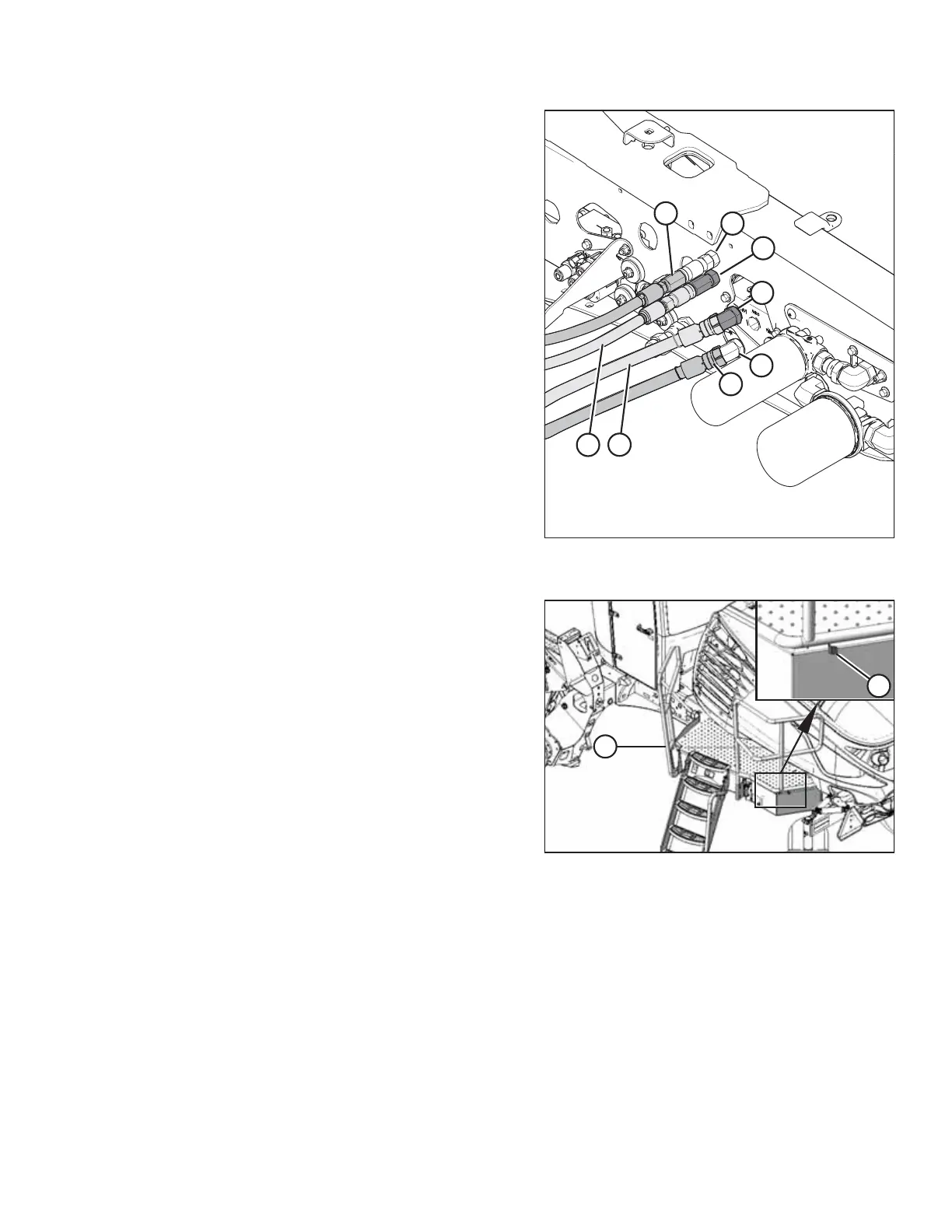

Figure 4.252: Grass Seed Hydraulic Connections –
Rotary Disc Configuration
5. Grass seed header: Connect the additional four hoses
supplied with the grass seed version of the header as
follows:
a. Remove the plug (not shown) from drive manifold port
R1. Install 45° fitting (A) in port R1. Connect hose (C)
(blue cable tie) to fitting (A).
NOTE:
The other end of hose (C) connects to the grass seed
module’s drum on the right side of the header.
b. Remove the plug (not shown) from drive manifold port
CP2. Install 45° fitting (B) in port CP2. Connect hose (D)
(red cable tie) to fitting (B).
NOTE:
The other end of hose (D) connects to the grass seed
module’s drum on the left side of the header.
c. Connect the hose (green cable tie) with female quick
coupler (E) to coupler (F) on the windrower.
d. Connect the hose (yellow cable tie) with male quick
coupler (G) to coupler (H) on the windrower.
1015478
A
B
Figure 4.253: Left Cab-Forward Platform
6. Push latch (A) to unlock platform (B).
OPERATION
