4.5.5 Setting Header Height

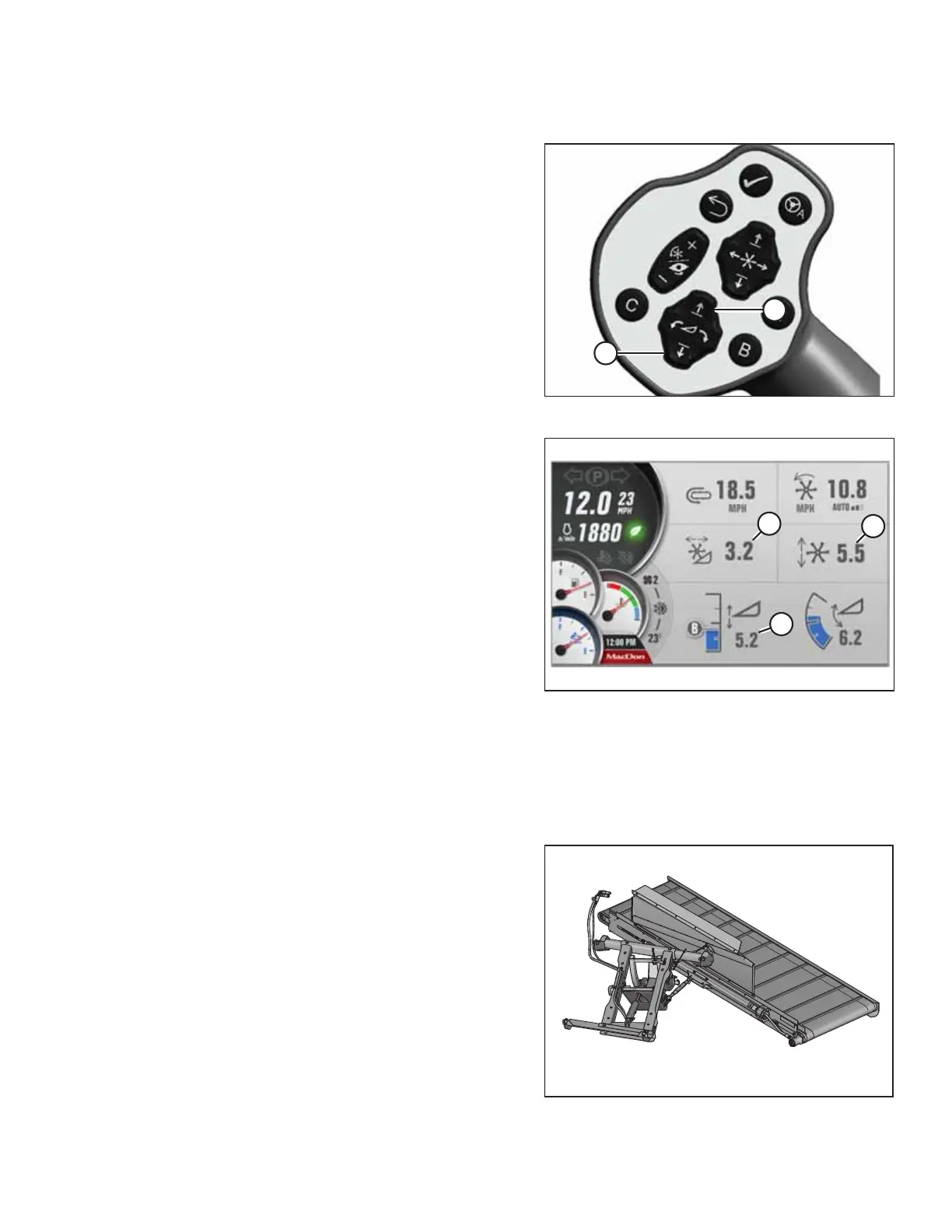

Figure 4.339: GSL
Header height is adjusted by raising or lowering the header with
the HEADER UP (A) or HEADER DOWN (B) switches on the
ground speed lever (GSL).
Figure 4.340: HPT Display – Draper Header Shown
HEADER HEIGHT (A) is always displayed on the Harvest
Performance Tracker (HPT) screen.
NOTE:
Draper headers: Settings for the fore-aft, reel height, and header
height are limited as follows to prevent the reel from contacting
the cab roof:
• If you increase header height (A) to greater than 7.0 while
reel fore-aft (B) is greater than 5.0, and reel height (C) is
greater than 7.0, the reel fore-aft will automatically move
forward to 5.0 or less to avoid contacting the cab roof.
• After the reel fore-aft automatically moves, you will then
have to manually adjust the fore-aft.
• For instructions about operating the reel fore-aft, refer to
4.6.2 Adjusting Reel Fore-Aft Position, page 266.
4.5.6 Double Windrowing
The Double Windrow Attachment (DWA) allows two conditioned windrows from an A40DX Auger Header or R85, R1 Series
or, R2 Series Rotary Disc Header to be laid down side-by-side for faster pickup.
Figure 4.341: DWA
Conditioned crop is deposited onto the side delivery draper and
delivered beside the windrower.
Raising the side delivery system shuts off the draper and allows
the crop to be deposited between the windrower wheels, as it
would be without the side delivery system.
Refer to the MacDon Double Windrow Attachment (DWA) for
M1 Series Windrowers manual for complete setup, operating,
and maintenance instructions. The manual is shipped with the
DWA kit.
