4.6.4 Leveling the Header
The windrower lift linkages are factory-set to provide the proper header level, and should not normally require adjustment.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.

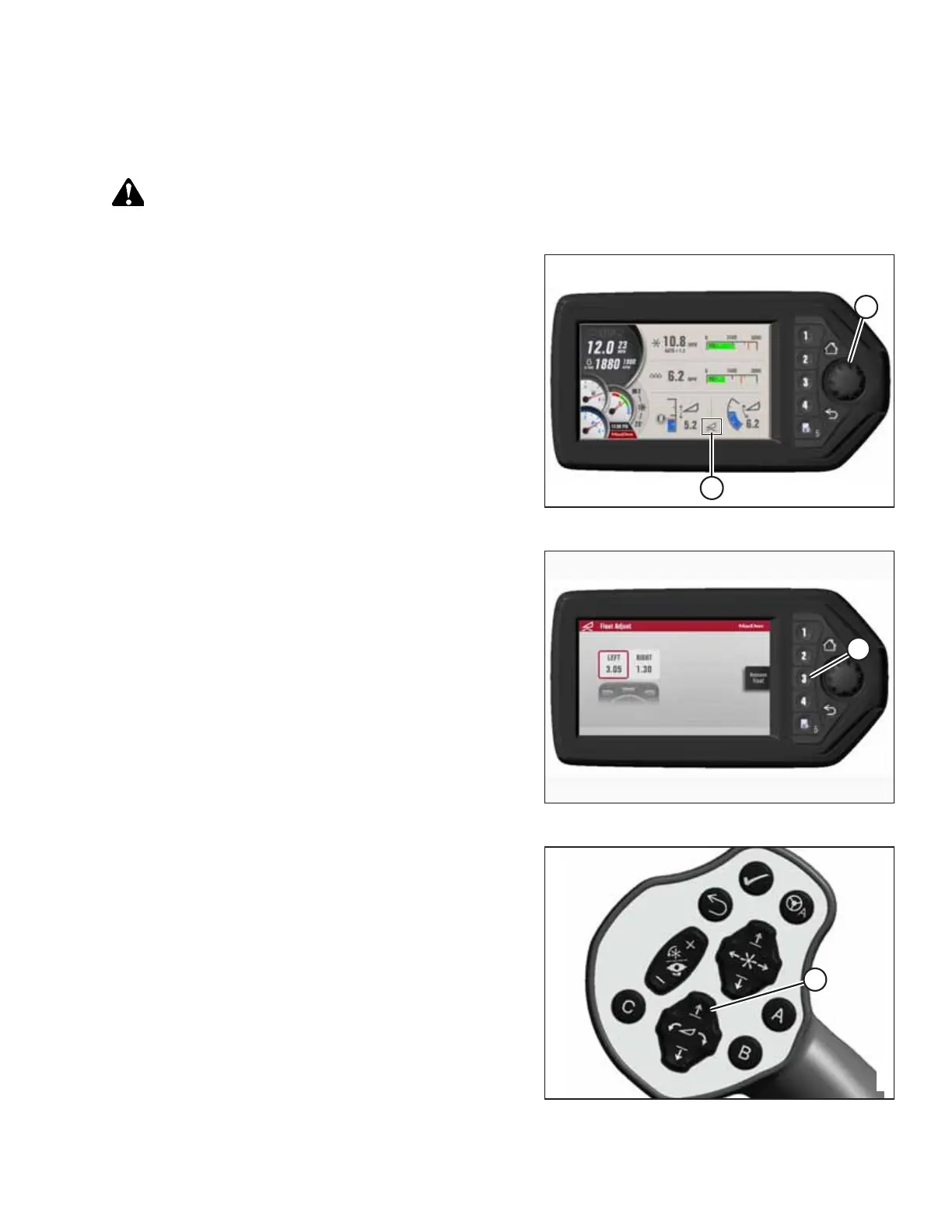

Figure 4.355: HPT Display
1. Press rotary scroll knob (A) on Harvest Performance
Tracker (HPT) to display the QuickMenu system.
2. Rotate scroll knob (A) to highlight HEADER FLOAT
symbol (B) and press scroll knob to select. The SET-UP
FLOAT page displays.
Figure 4.356: HPT Display
3. Press soft key 3 (A) to remove float.
Figure 4.357: GSL
4. Park the windrower on level ground.
5. Press HEADER RAISE button (A) on the ground speed lever
(GSL). When the header reaches maximum height, continue
to hold the header raise button momentarily to allow the
lift cylinders to rephase.
