215916 338 Revision A
1015478
A
B

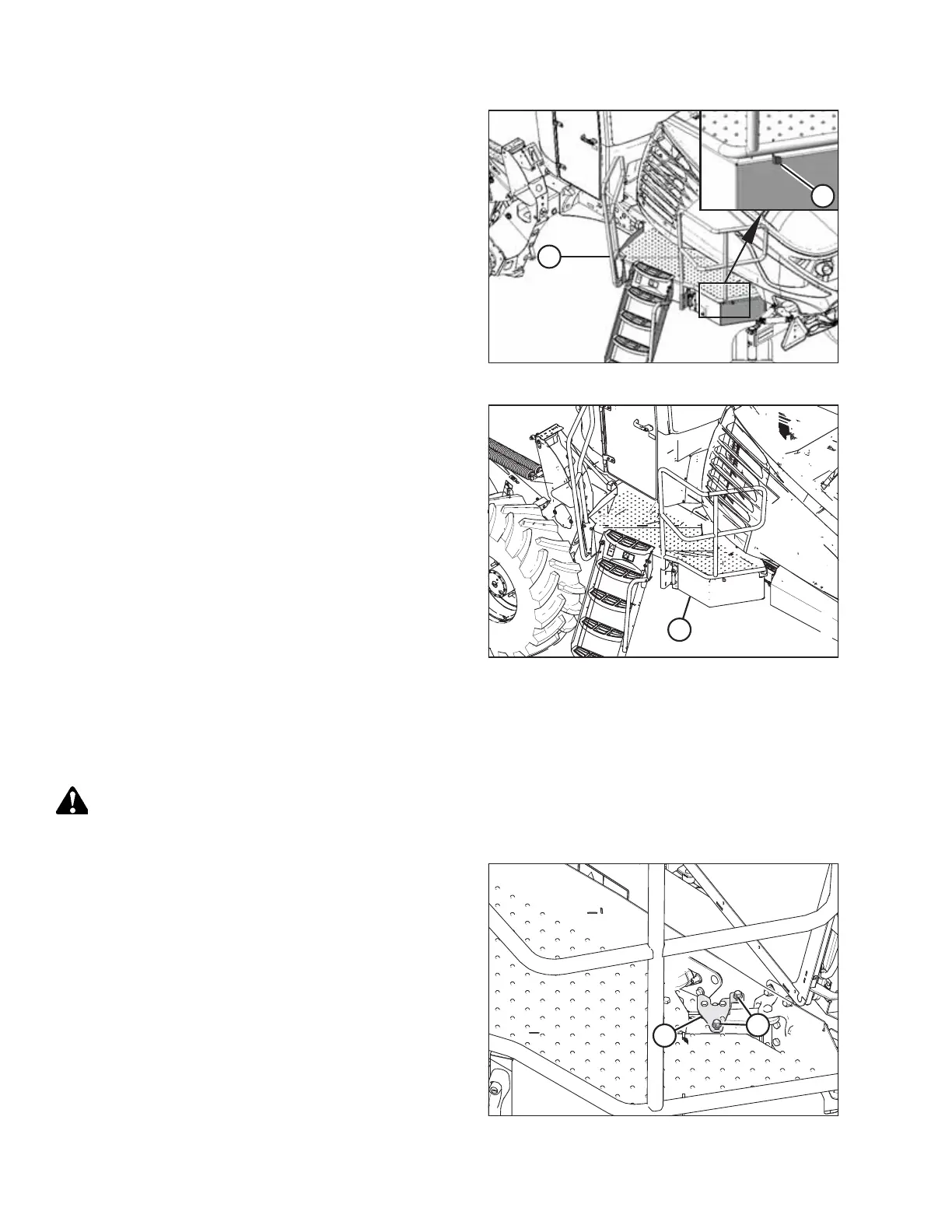

Figure 5.7: Left Cab-Forward Platform
1. Push latch (A) to unlock platform (B).
1012700
A
Figure 5.8: Left Cab-Forward Platform
2. Pull platform (A) towards the cab until it stops and the latch
is engaged.
5.4.3 Adjusting Platform
To achieve the proper gap between the platform and frame, latch adjustment may be required.
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key before making adjustments to the machine.
1012706
A
B
Figure 5.9: Left Platform
1. Locate latch (B) beneath the platform.
2. Adjust the latch position by loosening bolts (A) and moving
latch (B).
3. Retighten bolts (A) and close the platform.
MAINTENANCE AND SERVICING
