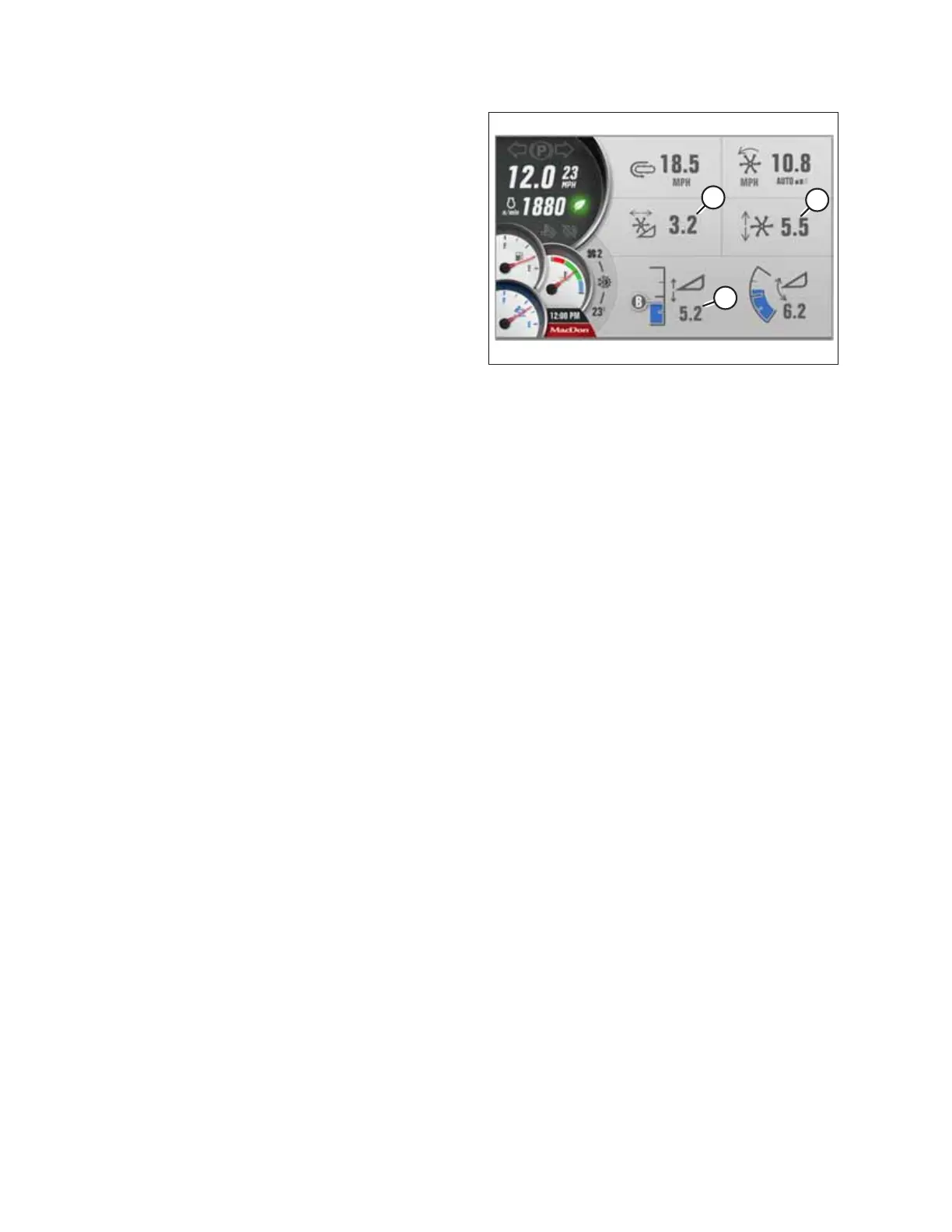

Figure 4.354: HPT Display – Draper Header Shown
Settings for the fore-aft, reel height, and header height are
limited as follows to prevent the reel from contacting the
cab roof:
• If you increase the reel height (C) to greater than 7.0 while
the reel fore-aft (B) is greater than 5.0, and the header
height (A) is greater than 7.0, the reel fore-aft will
automatically move forward to 5.0 or less to avoid colliding
with the cab roof.
• After the reel fore-aft automatically moves, you will then
have to manually adjust the fore-aft.
• For instructions about operating the reel fore-aft, refer to
4.6.2 Adjusting Reel Fore-Aft Position, page 266.
