MacDon M1240 - Ground Speed Lever Switches

215916 74 Revision A
One-Touch-Return Buttons (A, B, C)
The One-Touch-Return buttons on the Ground Speed Lever (GSL) save header configuration settings and serve as presets
for quickly returning the header to specific settings.
1013381

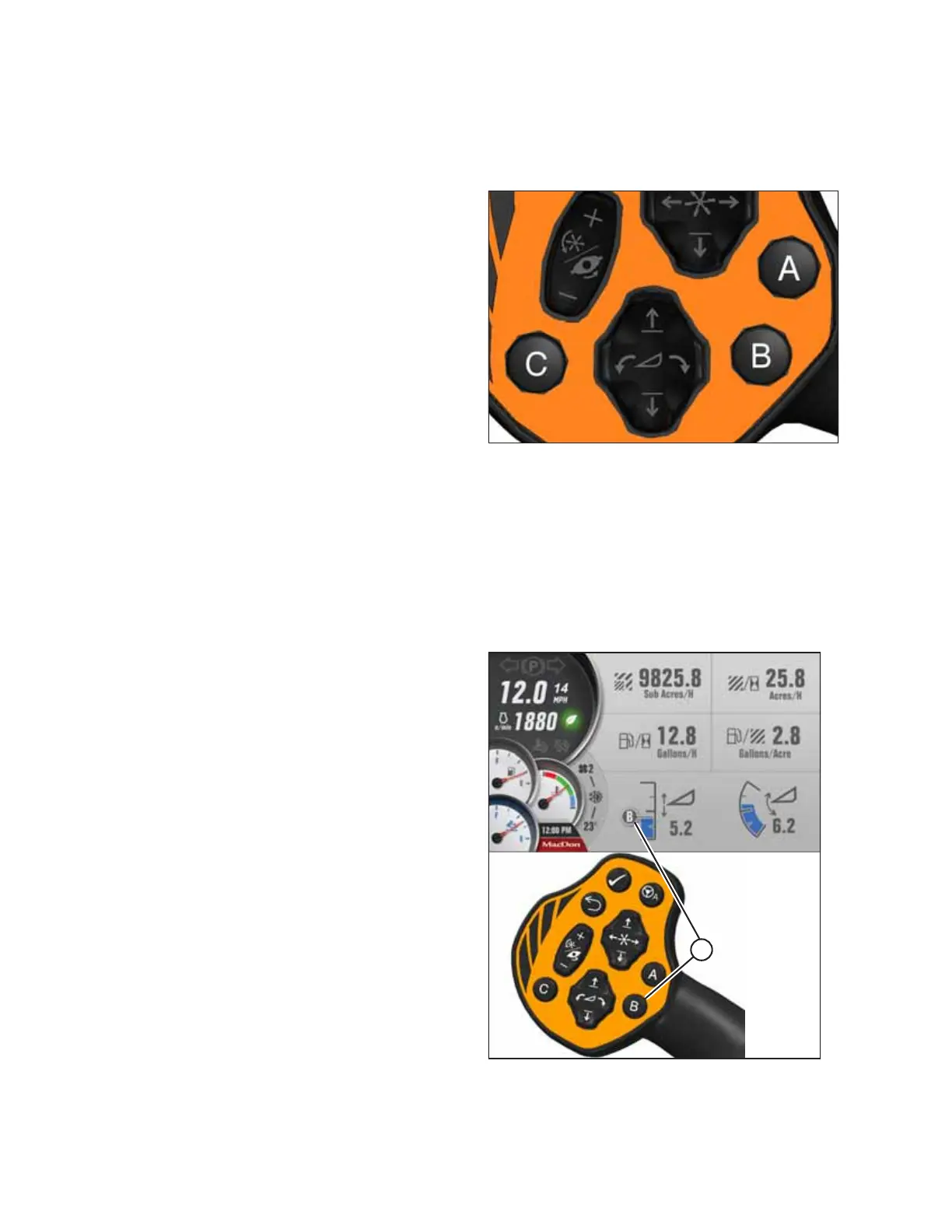

Figure 3.64: One-Touch-Return Buttons on GSL
The One-Touch-Return buttons A, B, and C always save header
height settings, but the following settings can also be saved
depending on the header type:
• Header tilt
• Deck position/header float selection
• Double windrow attachment (DWA) or swath compressor
raise/lower
• DWA speed
• Knife speed
• Draper speed
• Reel speed
• Reel height
• Reel fore-aft
• Disc speed
To program the One-Touch-Return buttons, press and hold button A, B, or C on the GSL handle for 3 seconds until an
audible tone is heard, indicating the current header settings are saved to that button.
To return the header to a preset condition, tap the A, B, or C button quickly. Holding the One-Touch-Return button too
long can inadvertently reprogram the current header settings.
1020173
A
Figure 3.65: One-Touch-Return Buttons on GSL
Pressing a programmed A, B, or C button opens a run screen
that shows corresponding letter (A) on the screen for the
preset.
