Chapter 3: Operator’s Station
The operator’s station is designed for operating the windrower in cab-forward mode (working mode) or in engine-forward
mode (transport mode). The operator’s station, which includes the seat, console, and steering column, pivots 180° so that
the Operator maintains access to the windrower controls and gauges regardless of the direction of travel.
3.1 Console
The console contains controls to operate the windrower, as well as amenities for the Operator.

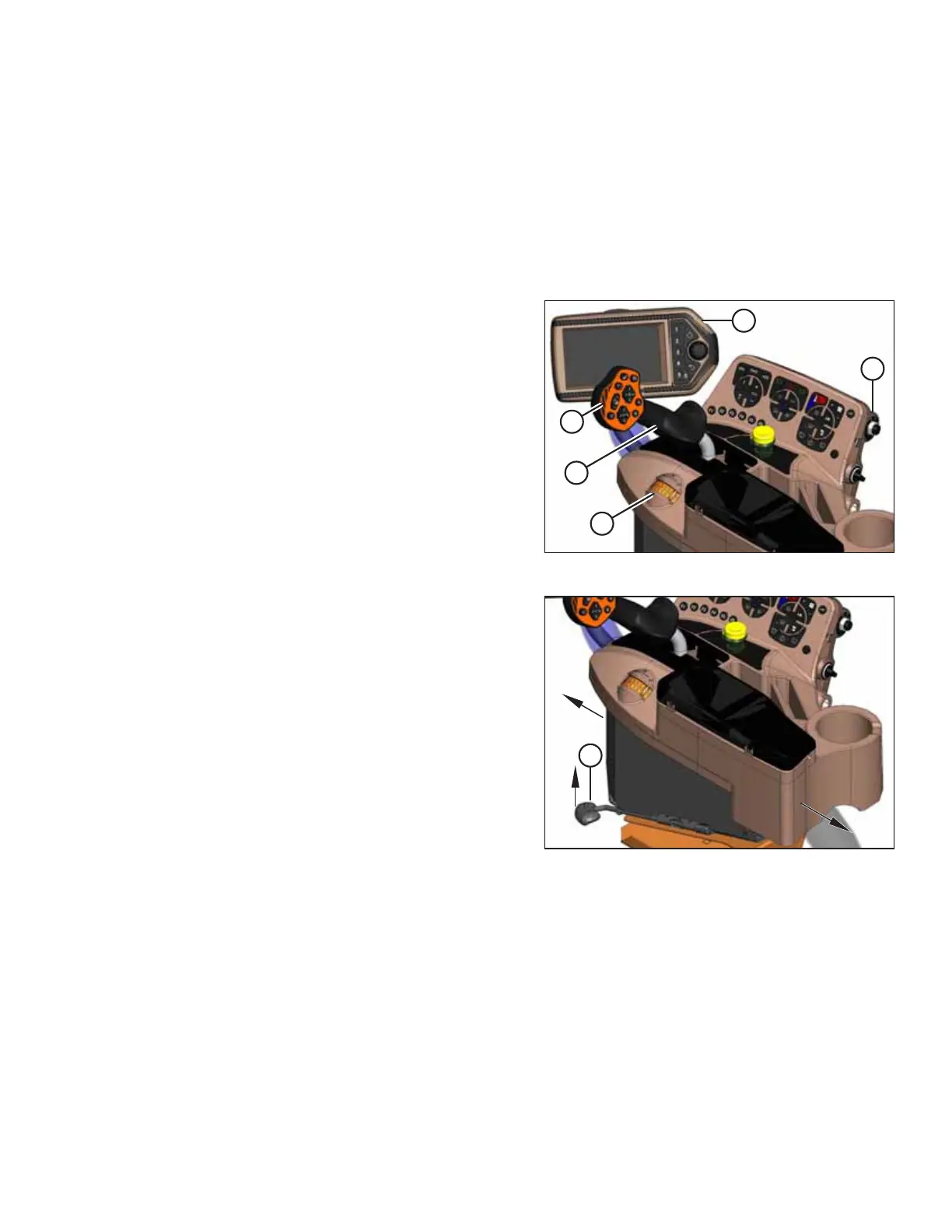

Figure 3.1: Console
The console position is adjustable to suit each particular
Operator. Operable parts of the console include:
• Ignition (A)
• Harvest Performance Tracker (HPT) display (B)
• Header controls (C)
• Ground speed lever (GSL) (D)
• Throttle (E)
Figure 3.2: Console Fore-Aft/Height
1. Adjust the fore-aft and height as follows:
a. Pull lever (A) and slide the console fore or aft to the
desired position.
b. Release the lever to lock the console.
