3. Open the platform. For instructions, refer to 5.4.1 Opening Platform, page 337.

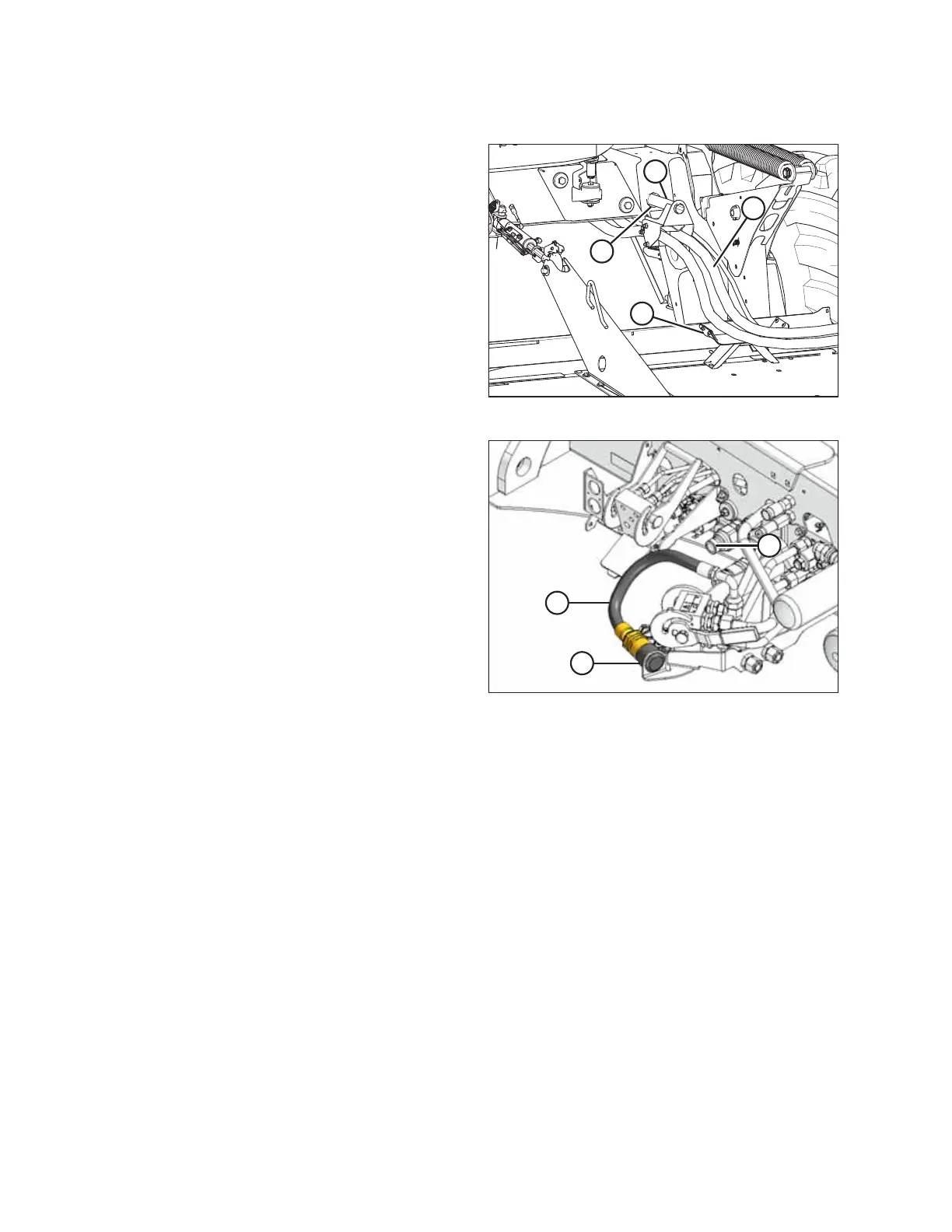

Figure 4.289: Hose and Electrical Routing
4. Route hose bundle (A) from the header to the underside of
the windrower frame.
IMPORTANT:
Route the hoses as straight as possible. To prevent damage
to hoses from abrasion, ensure that the hoses are not in
contact with rub or wear points.
5. Insert pin (B) into hole (C) in the windrower frame. Place
hose bundle on support (D).
Figure 4.290: Knife Drive Hose on Rotary Disc and
Draper Ready Windrower
6. Windrowers configured for both rotary disc and draper
headers only: Disconnect hose (A) from windrower
receptacle (B) and place it in storage cup (C) on the
multicoupler.
