Engine Cooling

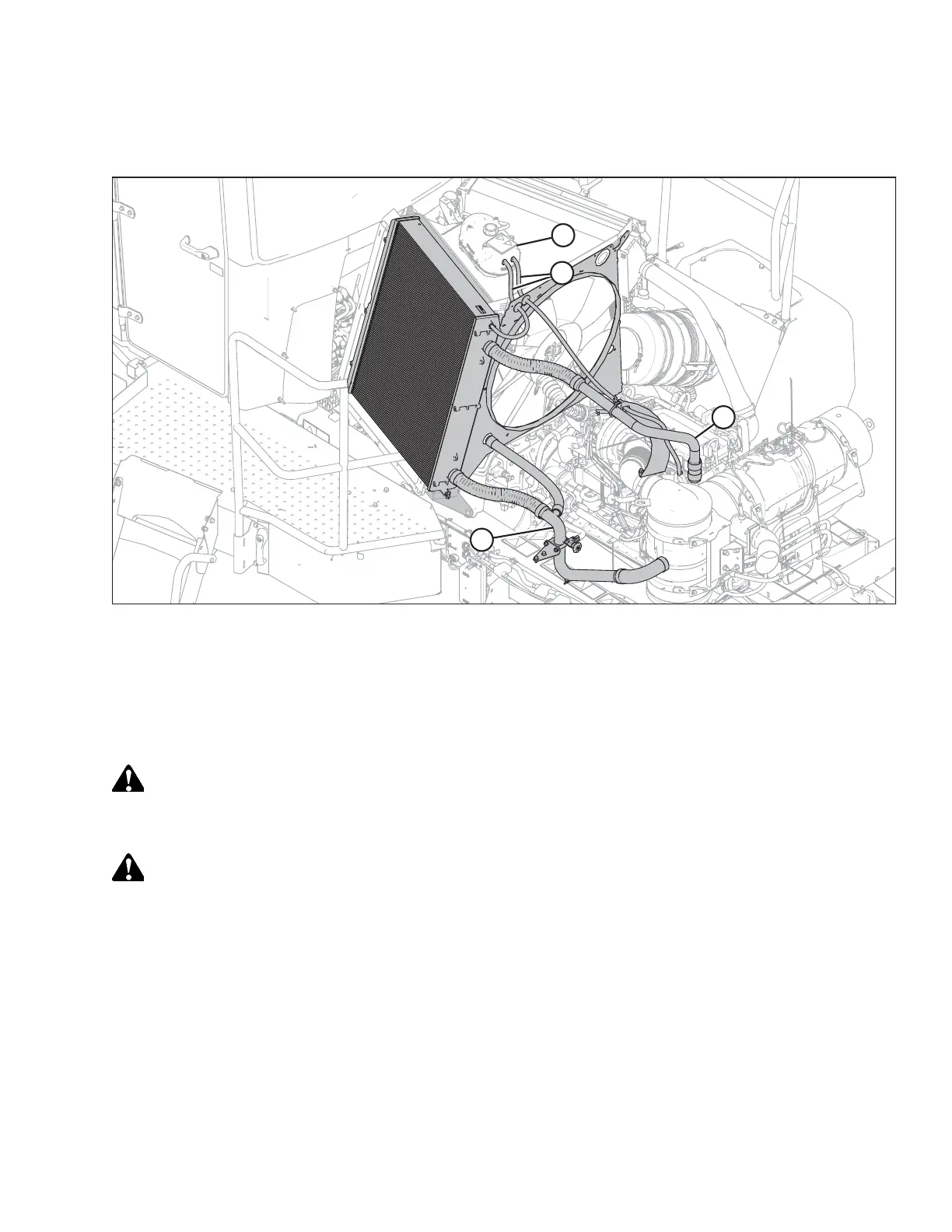

Figure 5.18: Engine Cooling
A - Pressurized Coolant Tank B - Engine Inlet Hose
C - Engine Outlet Hose D - Vent Hoses
Inspecting Pressurized Coolant Tank Cap
The pressurized coolant tank cap must fit tightly, and the cap gasket must be in good condition to maintain the 97–124 kPa
(14–18 psi) pressure in the cooling system.
CAUTION
To avoid personal injury from hot coolant, do NOT attempt to open the pressurized coolant tank cap until the
engine cools.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.
2. Open the hood. For instructions, refer to 5.3.1 Opening Hood, page 335.
