MacDon M1240 - Setting Draper Speed in Manual Mode

215916 214 Revision A
1036609
AA

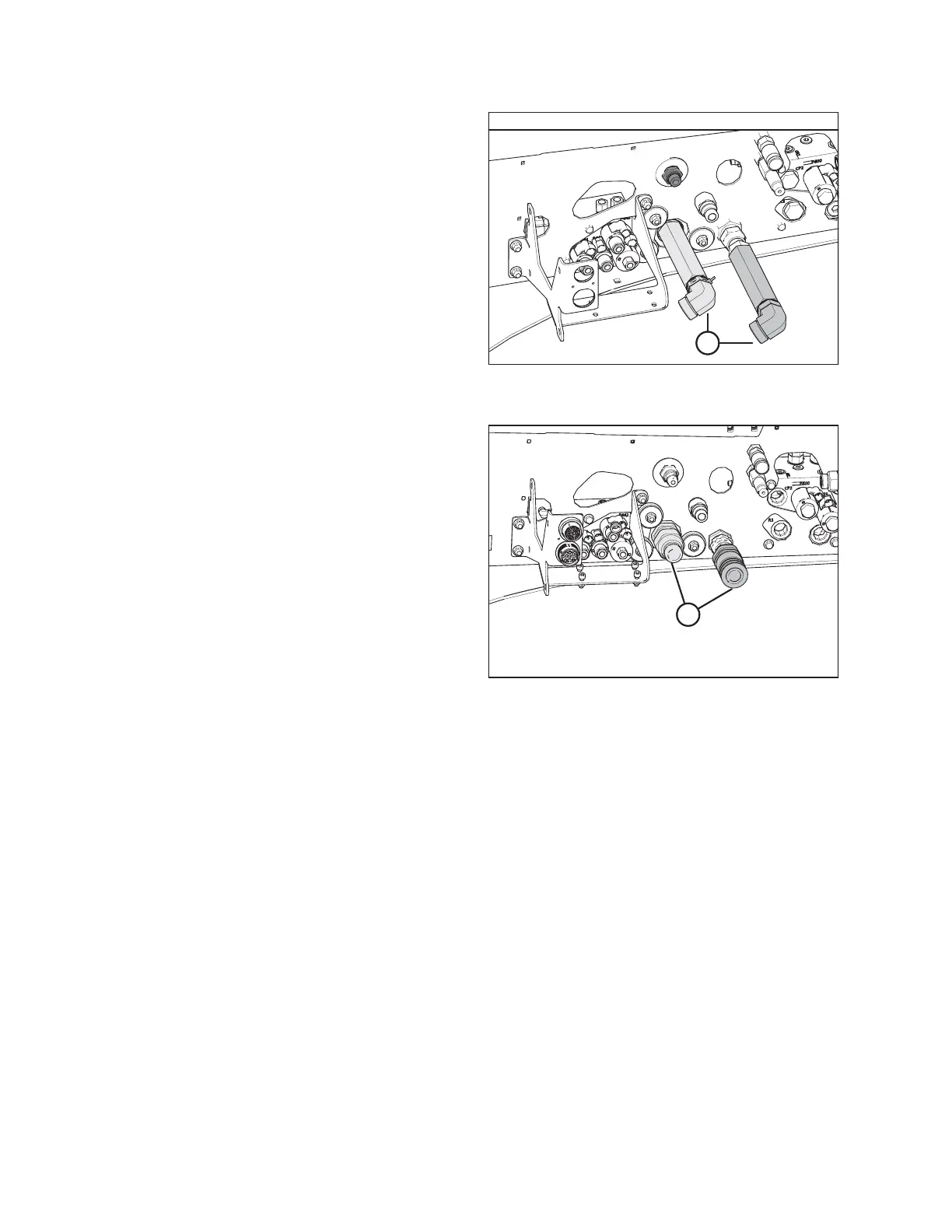

Figure 4.231: Header Hydraulics Configuration –
Rotary Disc-Ready with Hard-Plumbed Connections
• Rotary disc only hard-plumbed configuration (A): For
instructions, refer to Rotary Disc Only Configuration – Hard-
Plumbed Connections, page 218.
1036610
AA
Figure 4.232: Header Hydraulics Configuration –
Rotary Disc-Ready with Quick Couplers
• Rotary disc-ready configuration with quick couplers (A): For
instructions, refer to Rotary Disc Only Configuration – Quick
Coupler Connections, page 221.
Auger/Rotary Disc/Draper-Ready Configuration – Quick Coupler Connections
Windrowers with the auger/rotary disc/draper-ready configuration are equipped with the hydraulic connections needed to
pair with an auger, rotary disc, or draper header.
IMPORTANT:
To prevent contamination of the hydraulic system, use a clean rag to remove dirt and moisture from all (fixed and
movable) hydraulic couplers.
OPERATION
