215916 292 Revision A

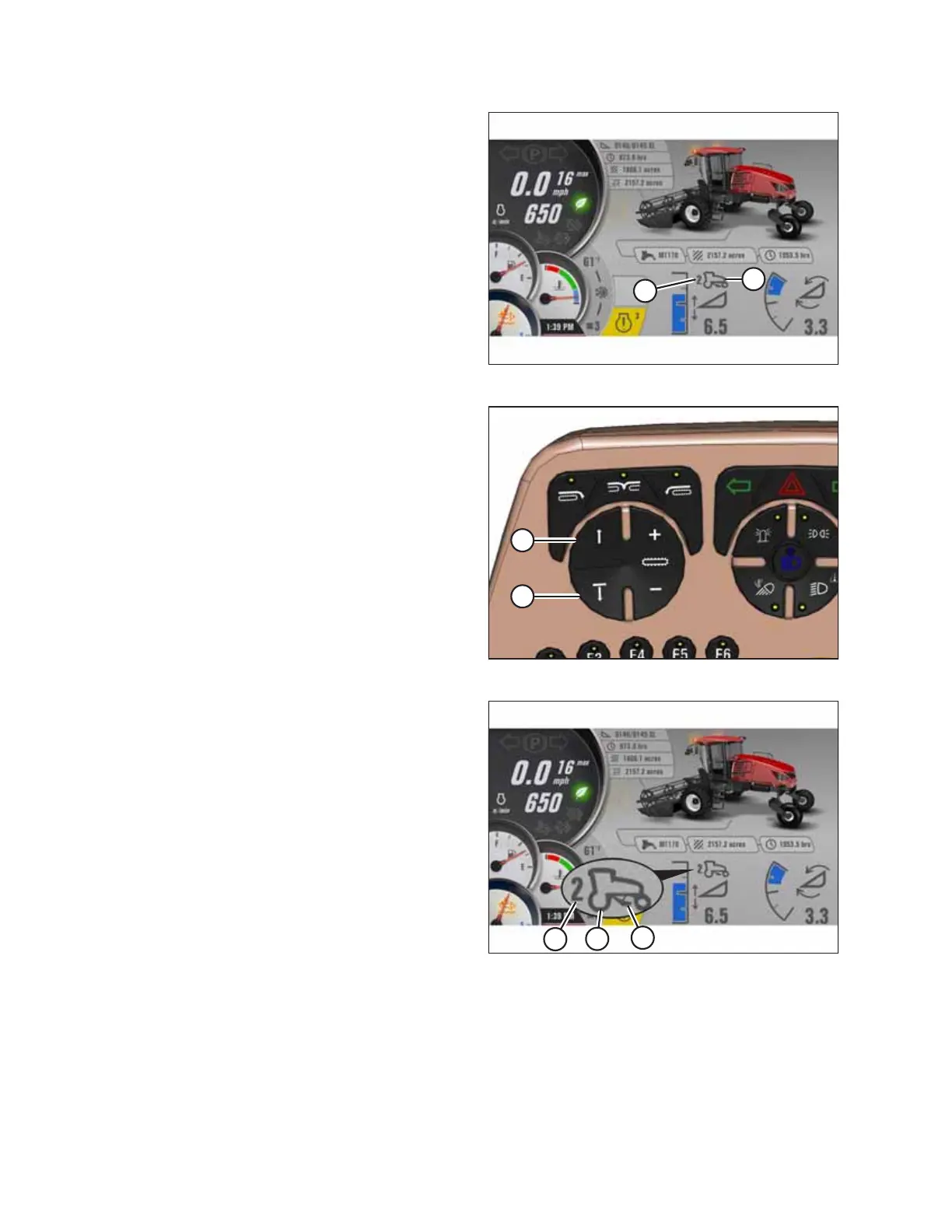

Figure 4.410: HPT Display
Swath compressor height (A) is displayed on the Harvest
Performance Tracker (HPT) with a scale from 0–10.
Swath compressor icon (B) is displayed on the HPT when the
swath compressor is activated in the attachments menu. If the
sensor is disabled, height number (A) is replaced by a sensor
disabled icon. For instructions on enabling the sensor, refer to
the Swath Compressor for M1 Series Windrowers Setup,
Operation, and Parts Manual.
Figure 4.411: Operator’s Console
Switches (A) and (B) on the operator’s console are used to
adjust the position (height). Releasing the switch stops the
movement.
Each momentary press of the switch changes the value by one.
Pressing and holding changes the value by one increment per
second.
The last position set with the console switches becomes the
target height. When an adjustment is made, the display shows
the target value. The system immediately adjusts to attain the
target position. After the last adjustment, the display shows
target value for 5 seconds then reverts to the actual position.
Figure 4.412: HPT Display
Display functions
• As the swath compressor moves up or down, target
value (A) changes, windrower icon (B) appears as an outline,
and swath compressor icon (C) flashes.
• Windrower icon (B) is solid when the target height is
achieved.
• Value (A) is 0, and image (B) is an outline with the swath
compressor fully raised.
• Icon (B) is not visible and automation is disabled without a
header attached. Swath compressor height can still be
adjusted.
Swath compressor automated functions: header engaged
• The swath compressor lowers to target height at a ground speed higher than 2.5 km/h (1.6 mph).
• The swath compressor fully rises as the ground speed transitions through 1.6 km/h (1 mph) during deceleration.
• The swath compressor fully rises when the header is disengaged at a ground speed higher than 1.6 km/h (1 mph).
