215916 163 Revision A

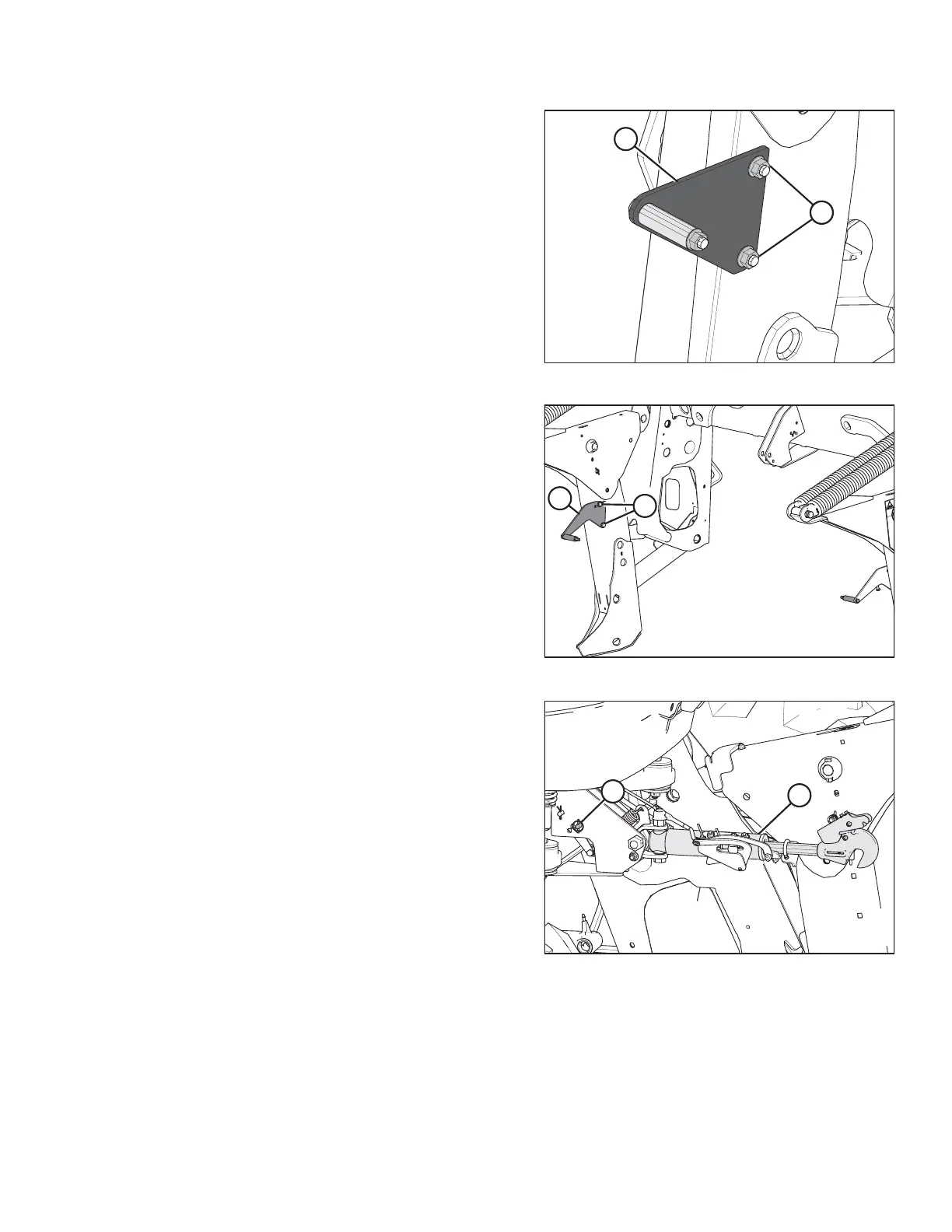

Figure 4.103: Forming Shield bracket – R85
Figure 4.104: Forming Shield bracket – R2 Series
2. If an R85 or R2 Series Rotary Disc Header is also used, the
forming shield support brackets that are attached to the
windrower lift legs must be removed to avoid contacting
the draper header as follows:
a. Remove hardware (B).
b. Remove support bracket (A). Place the bracket and
hardware in the toolbox.
Figure 4.105: Center-Link without Self-Alignment
3. Windrowers without the self-aligning center-link kit:
Relocate pin (A) in the frame linkage as required to raise
center-link (B) until the hook is above the attachment pin
on the header.
IMPORTANT:
Ensure that the center-link is positioned high enough that it
does not contact the header as the windrower approaches
the header.
OPERATION
