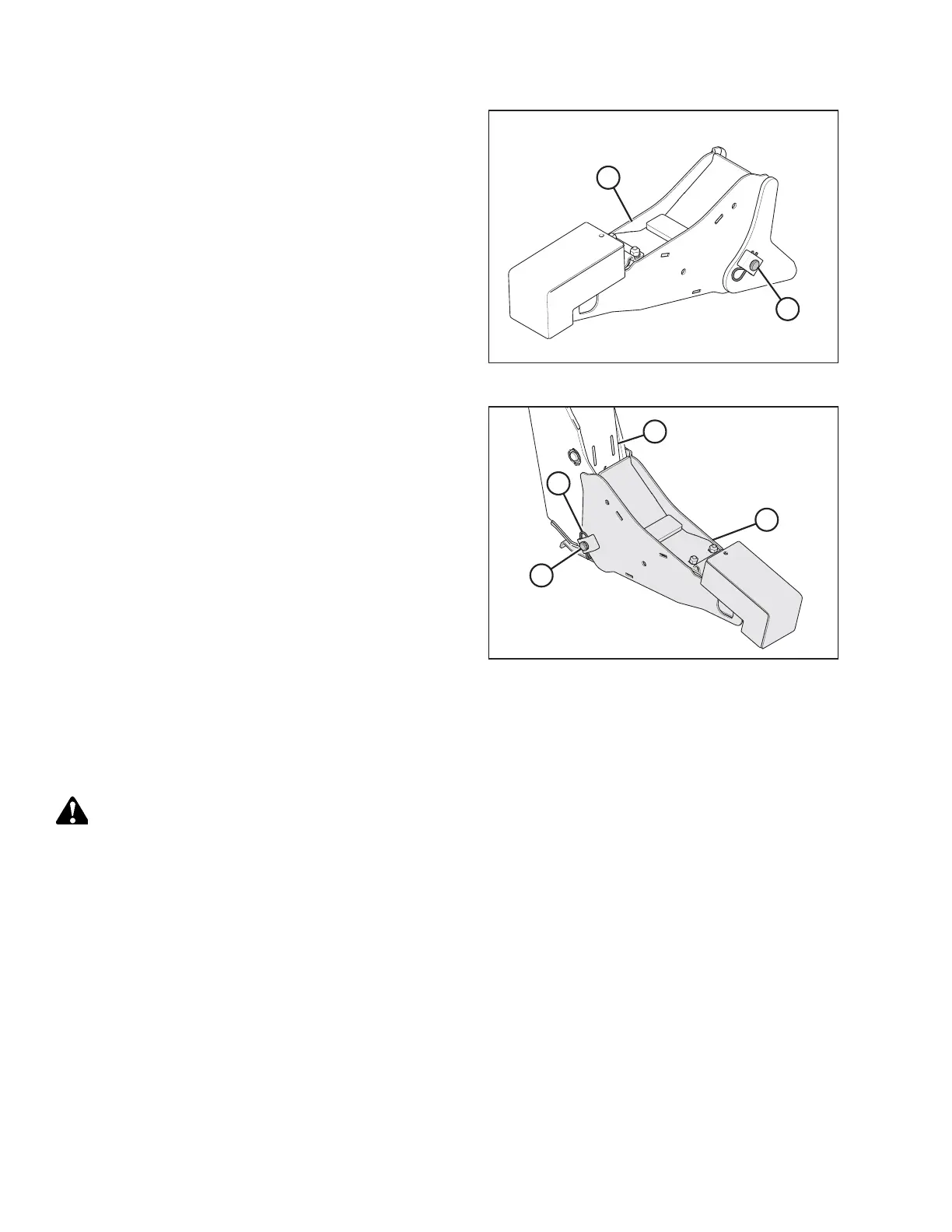

Figure 4.101: Draper Header Support
2. Remove the hairpin from clevis pin (B) on draper header
support (A). Remove clevis pin (B).
1015593
A
B
C
D
Figure 4.102: Draper Header Support
3. Position draper header support (B) on windrower lift
linkage (A). Reinstall clevis pin (C).
NOTE:
To ensure that the pin doesn’t snag the windrow, install the
clevis pin on the outboard side of the draper header
support.
4. Secure clevis pin (C) with hairpin (D).
5. Repeat Step 2, page 162 to Step 4, page 162 to install the
remaining draper header support.
Attaching D1X or D1XL Series Draper Header
The windrower may have an optional self-aligning hydraulic center-link, which allows control over the vertical position of
the center-link from the cab.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
NOTE:
Draper header supports must be installed onto the windrower lift linkage before starting this procedure. For instructions,
refer to Attaching Draper Header Supports, page 161.
1. Shut down the engine, and remove the key from the ignition.
