Auxiliary Lift Switches
Buttons to control header functions are conveniently located on the console.
1016066
A
B

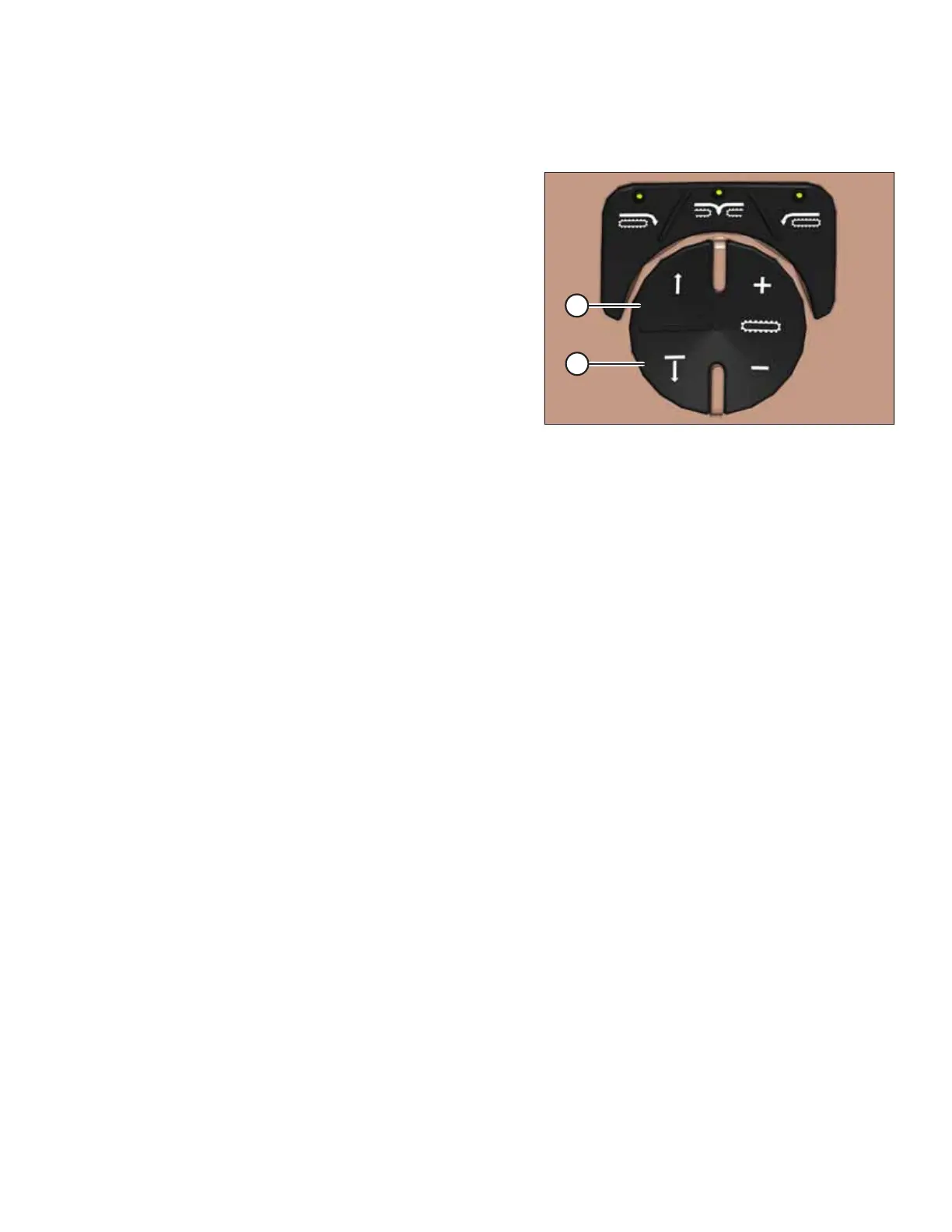

Figure 3.70: Operator’s Console Auxiliary Controls
With double windrow attachment (DWA):
• Raise the DWA deck by pressing button (A), or lower the
deck by pressing button (B).
With swath compressor attachment:
• Raise the swath compressor by pressing button (A), or
lower it by pressing button (B).
