Auger/Rotary Disc/Draper-Ready Configuration – Quick Coupler Connections
Windrowers with the auger/rotary disc/draper-ready configuration are equipped with the hydraulic connections needed to
pair with an auger, rotary disc, or a draper header.
1027578
A
B
C

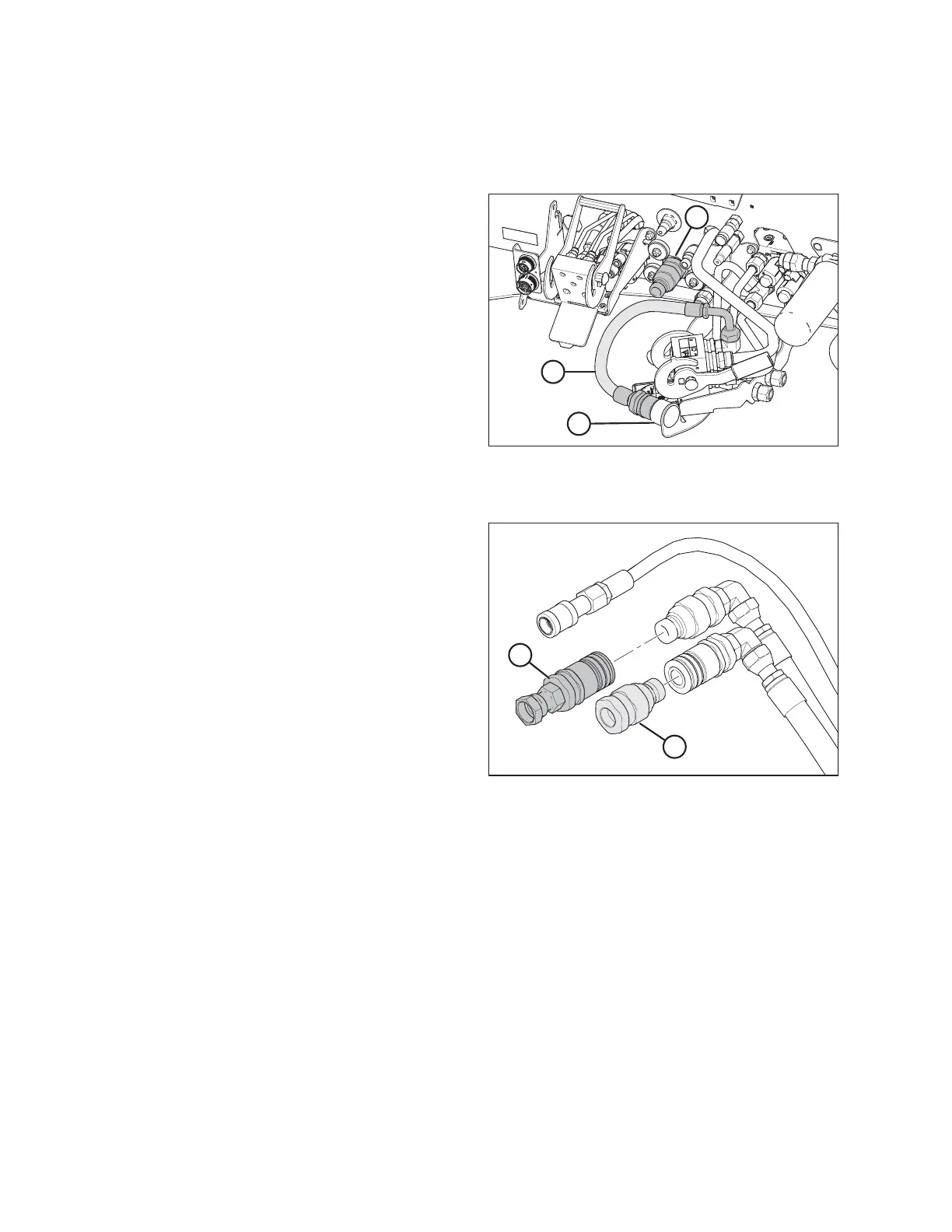

Figure 4.171: Couplers – Auger/Rotary/Draper
Header-Ready Configuration with Case Drain Kit
Installed
1. Ensure that hose (A) is disconnected from windrower
receptacle (B) and placed in storage cup (C) on the
multicoupler.
1027604
A
B
Figure 4.172: Hydraulic Quick Couplers
2. Remove the extra hydraulic quick couplers from pressure
hose (A) and return hose (B). These can be stored and used
as replacement parts.
NOTE:
It is normal to have an extra set of quick couplers on
windrowers with the auger/rotary disc/draper-ready
configuration.
