MacDon M1240 - Engaging and Disengaging Wheel Drives; Storing Windrower

215916 158 Revision A
1000780
B
A

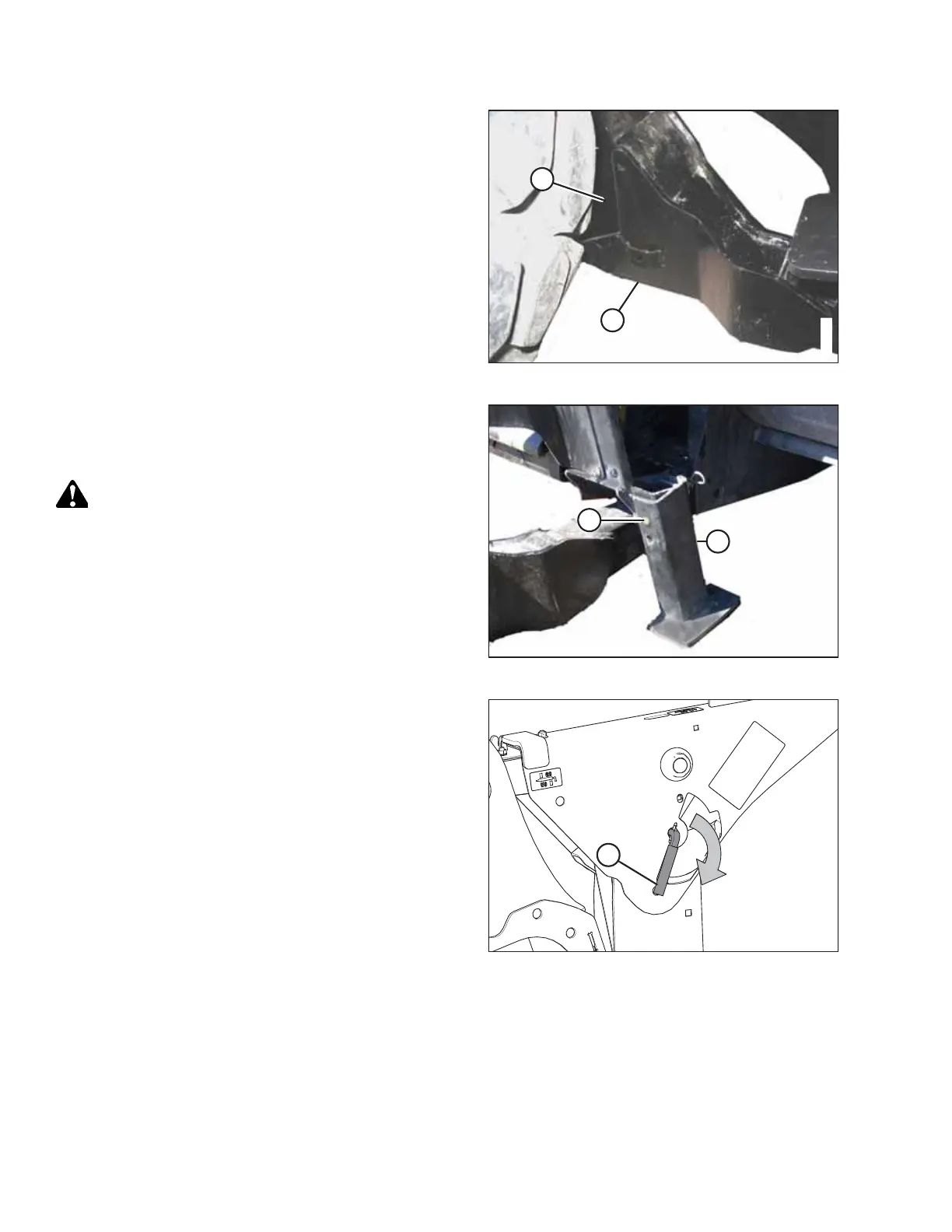

Figure 4.90: Header Support
5. Remove the hairpin from clevis pin (A) and remove the
clevis pin from header support (B) on both sides.
1000797
A
B
Figure 4.91: Header Stand
6. Lower stand (A) by pulling clevis pin (B), inverting the stand
and relocating it on the bracket. Reinsert pin (B) and secure
with the hairpin.
WARNING
Check to be sure all bystanders have cleared the area.
1029799
A
Figure 4.92: Safety Prop Lever
7. Disengage the safety props on both lift cylinders as follows:
a. Turn lever (A) away from the header to raise the safety
prop until the lever locks into the vertical position.
b. Repeat the previous step for the opposite cylinder.
NOTE:
If the safety prop will NOT disengage, raise the header to
release the prop.
8. Start the engine.
9. Lower the header fully.
OPERATION
